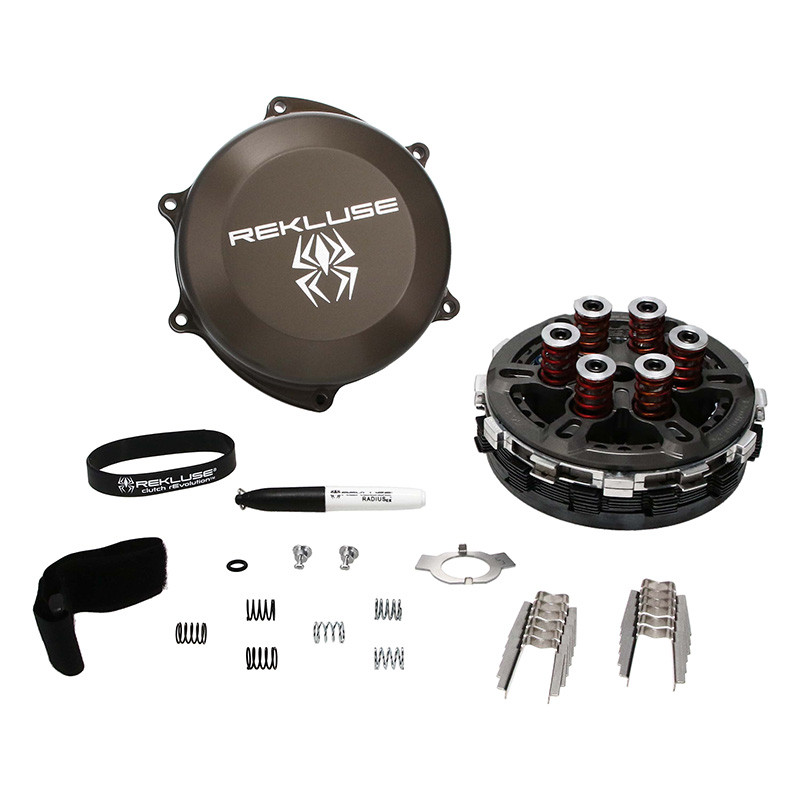

REKLUSE RadiusCX Clutch for YAMAHA WRF 250, YZF 250 and FANTIC XEF 250, XXF 250 2019-2025

The REKLUSE RadiusCX RMS-8907002 clutch is designed for YAMAHA WRF 250, YZF 250 and FANTIC XEF 250, XXF 250 from 2019 to 2025. With a Rekluse automatic clutch, the bike no longer stalls: the clutch disengages at idle and bites progressively as you open the throttle. The lever is still there and works normally whenever you want to feather the clutch by hand.

Key features

• Automatic clutch: no more stalling, even when you lock the rear wheel with the brake.
• Lever still usable, engine braking retained.

Specifications

• Brand: REKLUSE
• Manufacturer part number: RMS-8907002
• EAN code: 680392606600
• Engine: 4-stroke

Who is it for?

• You stall in slow sections, on climbs or in ruts.
• Your forearm gets tired from constantly working the clutch.
• You want more traction and starts that are easier to manage.

Good to know

Check the clutch install gap before every ride: incorrect adjustment wears the clutch prematurely. Use a JASO MA or MA2 oil, never a JASO MB oil or a car oil.

Fitting tips

1. Soak the plates in oil for at least 5 minutes before fitting them.
2. Never fit the clutch in a basket with notched slots.
3. Fit a new clutch cover gasket.
4. Set the install gap at the lever with the engine warm, following the Rekluse instructions.
5. Break-in: rev the engine 10 times in neutral, make 10 gentle pull-aways in 1st and 10 in 2nd, then recheck the gap. Never pull away in 3rd.

Why REKLUSE?

Rekluse, an American brand from Idaho, made its name with the automatic clutch for off-road riding. It also develops steel-core TorqDrive plates, manual clutches, billet aluminium clutch parts and hydraulic slave cylinders.

Spare parts and items to plan

• Gearbox oil : LIQUI MOLY 10W30 1 L · LIQUI MOLY 80W 500 ml
• Clutch cover gasket : CENTAURO · MOOSE

Frequently asked questions

Can you still use the clutch lever?
Yes: every Rekluse automatic clutch keeps manual control at the lever.

Do you keep engine braking?
Yes, as long as the clutch is correctly adjusted.

Can you bump-start the bike?
Not by simply rolling it as with a conventional clutch: you first have to close the gap on the adjuster, as explained in the instructions.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
FANTIC XEF 250 2025
FANTIC XEF 250 2024
FANTIC XEF 250 2023
FANTIC XEF 250 2022
FANTIC XXF 250 2025
FANTIC XXF 250 2024
FANTIC XXF 250 2023
YAMAHA WRF 250 2025
YAMAHA WRF 250 2024
YAMAHA WRF 250 2023
YAMAHA WRF 250 2022
YAMAHA WRF 250 2021
YAMAHA WRF 250 2020
YAMAHA YZF 250 2025
YAMAHA YZF 250 2024
YAMAHA YZF 250 2023
YAMAHA YZF 250 2022
YAMAHA YZF 250 2021
YAMAHA YZF 250 2020
YAMAHA YZF 250 2019
