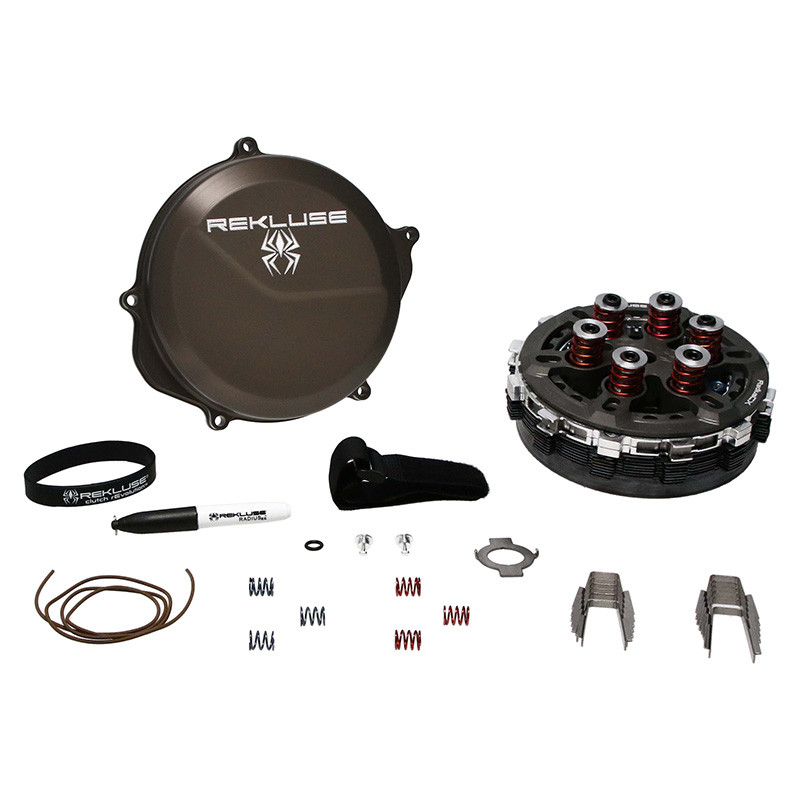

REKLUSE RadiusCX Clutch for HUSQVARNA TC 125, TE 150, TX 125 and KTM SX 125, SX 150, XCW 125 2016-2018

The REKLUSE RadiusCX RMS-8913091 clutch is designed for KTM SX 125, SX 150, XCW 125 and HUSQVARNA TC 125, TE 150, TX 125 from 2016 to 2018. A Rekluse automatic clutch engages and disengages on its own according to engine rpm, thanks to wedges that spread apart under centrifugal force. The result: no more stalling, even when you lock the rear wheel with the brake, and much better traction in technical sections.

Key features

• Automatic clutch: no more stalling, even when you lock the rear wheel with the brake.
• Lever still usable, engine braking retained.

Specifications

• Brand: REKLUSE
• Manufacturer part number: RMS-8913091
• EAN code: 680392606792
• Engine: 2-stroke

Who is it for?

• You stall in slow sections, on climbs or in ruts.
• Your forearm gets tired from constantly working the clutch.
• You want more traction and starts that are easier to manage.

Good to know

Check the clutch install gap before every ride: incorrect adjustment wears the clutch prematurely. Use a JASO MA or MA2 oil, never a JASO MB oil or a car oil.

Fitting tips

1. Soak the plates in oil for at least 5 minutes before fitting them.
2. Never fit the clutch in a basket with notched slots.
3. Fit a new clutch cover gasket.
4. Set the install gap at the lever with the engine warm, following the Rekluse instructions.
5. Break-in: rev the engine 10 times in neutral, make 10 gentle pull-aways in 1st and 10 in 2nd, then recheck the gap. Never pull away in 3rd.

Why REKLUSE?

Rekluse, an American brand from Idaho, made its name with the automatic clutch for off-road riding. It also develops steel-core TorqDrive plates, manual clutches, billet aluminium clutch parts and hydraulic slave cylinders.

Spare parts and items to plan

• Gearbox oil : LIQUI MOLY 10W30 1 L · LIQUI MOLY 500 ml
• Clutch cover gasket : MOOSE 816025MSE · MOOSE 816027MSE

Frequently asked questions

Can you still use the clutch lever?
Yes: every Rekluse automatic clutch keeps manual control at the lever.

Do you keep engine braking?
Yes, as long as the clutch is correctly adjusted.

Can you bump-start the bike?
Not by simply rolling it as with a conventional clutch: you first have to close the gap on the adjuster, as explained in the instructions.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HUSQVARNA TC 125 2018
HUSQVARNA TC 125 2017
HUSQVARNA TC 125 2016
HUSQVARNA TE 150 2018
HUSQVARNA TE 150 2017
HUSQVARNA TX 125 2018
HUSQVARNA TX 125 2017
HUSQVARNA TX 125 2016
KTM SX 125 2018
KTM SX 125 2017
KTM SX 125 2016
KTM SX 150 2018
KTM SX 150 2017
KTM SX 150 2016
KTM XCW 125 2018
KTM XCW 125 2017
