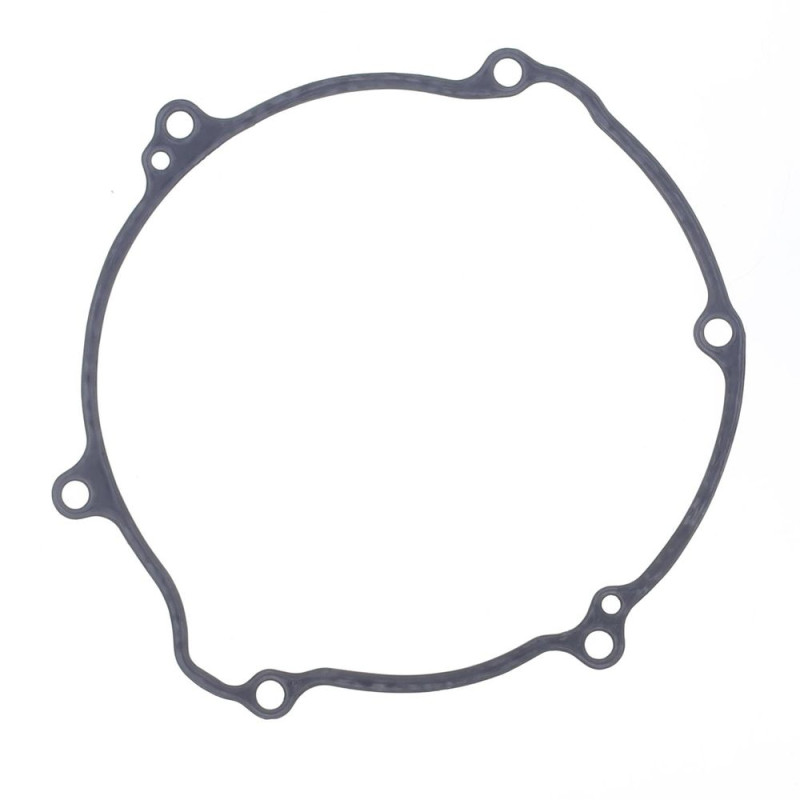

ATHENA outer Clutch Cover Gasket for KAWASAKI KX 125 1994-2002

On KAWASAKI KX 125 from 1994 to 2002, the ATHENA S410250008061 clutch cover gasket fits in place of the original part. On the clutch side, the cover holds in the gearbox oil. Its gasket crushes when tightened: refitting the old one means risking an oil leak onto your boot or into the engine.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410250008061
• EAN code: 8050038446990
• Engine: 2-stroke

When to replace it?

• Oil seeping around the clutch cover.
• Gasket torn, hardened or stuck on removal.

Every time the clutch cover comes off: changing the plates or springs, work on the clutch basket or, depending on the model, the water pump.

Fitting tips

1. Drain the oil if the cover sits below the oil level.
2. Clean the gasket faces without scratching them and fit the gasket dry.
3. Tighten the screws in a criss-cross pattern to the manufacturer's torque.
4. Refill with fresh gearbox oil and check the level.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Clutch plates : PROX · WISECO
• Clutch springs : BARNETT 501-25-06043 · BARNETT 501-45-04050
• Gearbox oil : LIQUI MOLY 10W30 1 L · LIQUI MOLY 500 ml

Frequently asked questions

When should it be replaced?
Every time the cover is opened. It's also the moment to check the friction plates and the clutch springs.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 125 2002
KAWASAKI KX 125 2001
KAWASAKI KX 125 2000
KAWASAKI KX 125 1999
KAWASAKI KX 125 1998
KAWASAKI KX 125 1997
KAWASAKI KX 125 1996
KAWASAKI KX 125 1995
KAWASAKI KX 125 1994
