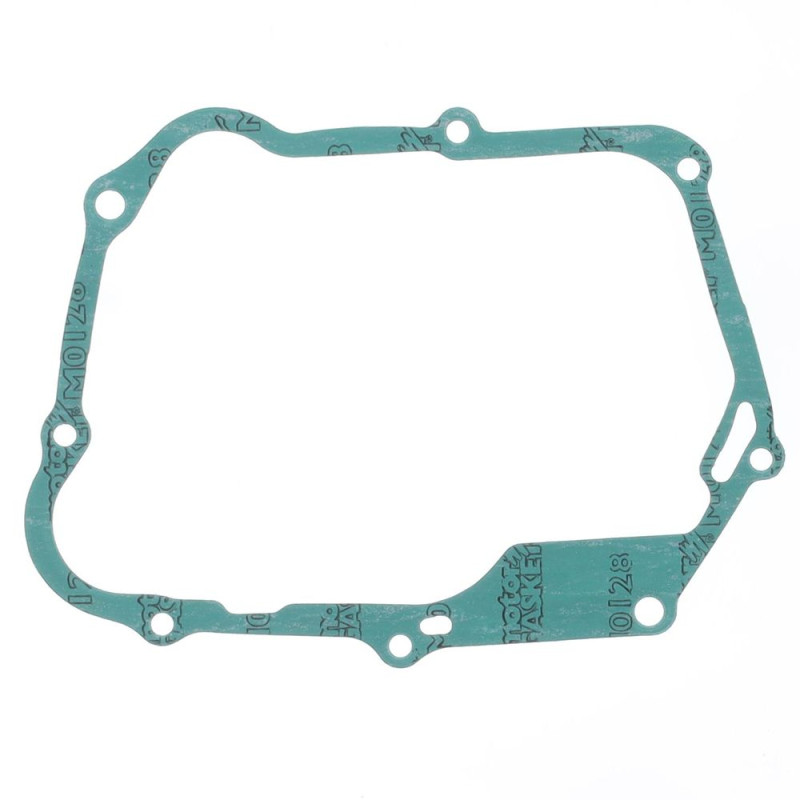

ATHENA Clutch Cover Gasket for HONDA CRF 50, CRF 70, XR 50 1988-2024

On HONDA CRF 50, CRF 70, XR 50 from 1988 to 2024, the ATHENA S410210008032 clutch cover gasket fits in place of the original part. On the clutch side, the cover holds in the gearbox oil. Its gasket crushes when tightened: refitting the old one means risking an oil leak onto your boot or into the engine.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410210008032
• EAN code: 8051757009046
• Weight: 70 g
• Engine: 4-stroke

When to replace it?

• Oil seeping around the clutch cover.
• Gasket torn, hardened or stuck on removal.

Every time the clutch cover comes off: changing the plates or springs, work on the clutch basket or, depending on the model, the water pump.

Fitting tips

1. Drain the oil if the cover sits below the oil level.
2. Clean the gasket faces without scratching them and fit the gasket dry.
3. Tighten the screws in a criss-cross pattern to the manufacturer's torque.
4. Refill with fresh gearbox oil and check the level.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Clutch plates : NEWFREN
• Clutch springs : see the selection
• Gearbox oil : LIQUI MOLY 10W30 1 L · MOTUL 80W90 1 L

Frequently asked questions

When should it be replaced?
Every time the cover is opened. It's also the moment to check the friction plates and the clutch springs.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CRF 50 2024
HONDA CRF 50 2023
HONDA CRF 50 2022
HONDA CRF 50 2021
HONDA CRF 50 2020
HONDA CRF 50 2019
HONDA CRF 50 2018
HONDA CRF 50 2017
HONDA CRF 50 2016
HONDA CRF 50 2015
HONDA CRF 50 2014
HONDA CRF 50 2013
HONDA CRF 50 2012
HONDA CRF 50 2011
HONDA CRF 50 2010
HONDA CRF 50 2009
HONDA CRF 50 2008
HONDA CRF 50 2007
HONDA CRF 50 2006
HONDA CRF 50 2005
HONDA CRF 50 2004
HONDA CRF 70 2012
HONDA CRF 70 2011
HONDA CRF 70 2010
HONDA CRF 70 2009
HONDA CRF 70 2008
HONDA CRF 70 2007
HONDA CRF 70 2006
HONDA CRF 70 2005
HONDA CRF 70 2004
HONDA XR 50 2003
HONDA XR 50 2002
HONDA XR 50 2001
HONDA XR 50 2000
HONDA XR 50 1999
HONDA XR 50 1998
HONDA XR 50 1997
HONDA XR 50 1996
HONDA XR 50 1995
HONDA XR 50 1994
HONDA XR 50 1993
HONDA XR 50 1992
HONDA XR 50 1991
HONDA XR 50 1990
HONDA XR 50 1989
HONDA XR 50 1988
