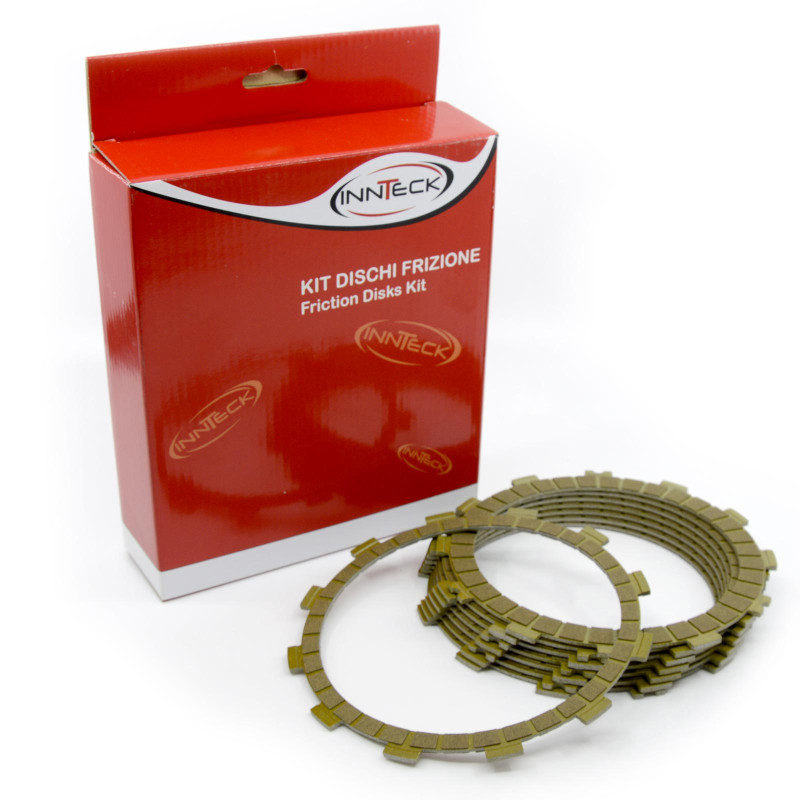

INNTECK Clutch Friction Plate Kit for HONDA CR 125 1986-1999

The INNTECK AXCK-1222 clutch friction plate kit is designed for HONDA CR 125 from 1986 to 1999. The friction plates transmit engine torque to the gearbox by gripping against the steel plates. As they wear, they get thinner: the clutch slips, overheats and the bike loses traction.

Specifications

• Brand: INNTECK
• Manufacturer part number: AXCK-1222
• EAN code: 8050040142040
• Engine: 2-stroke

When to replace it?

• Revs rise but the bike doesn't pick up speed (slipping), especially in the higher gears.
• Engagement point that wanders, clutch that judders or smells burnt.
• Plates below the minimum thickness given in the manual.

Measure plate thickness with a vernier caliper at every clutch check and replace the plates once they're below the minimum in the manual, or as soon as they slip.

Fitting tips

1. Soak the new friction plates in gearbox oil before fitting them.
2. Check the steel plates (flatness, blueing) and the clutch springs; replace them if necessary.
3. Make sure the basket fingers aren't notched: if they are, the clutch will snag.
4. Reassemble in the original order, tighten to the manufacturer's torque and close up with a new clutch cover gasket.

Spare parts and items to plan

• Clutch steel plates : ATHENA · TECNIUM
• Clutch springs : BARNETT · EBC
• Clutch cover gasket : see the selection
• Gearbox oil : LIQUI MOLY 10W30 1 L · LIQUI MOLY 500 ml

Frequently asked questions

Should the steel plates be replaced at the same time?
If they're blued, warped or marked, yes: fit new steel plates. If not, check them and keep them.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CR 125 1999
HONDA CR 125 1998
HONDA CR 125 1997
HONDA CR 125 1996
HONDA CR 125 1995
HONDA CR 125 1994
HONDA CR 125 1993
HONDA CR 125 1992
HONDA CR 125 1991
HONDA CR 125 1990
HONDA CR 125 1989
HONDA CR 125 1988
HONDA CR 125 1987
HONDA CR 125 1986
