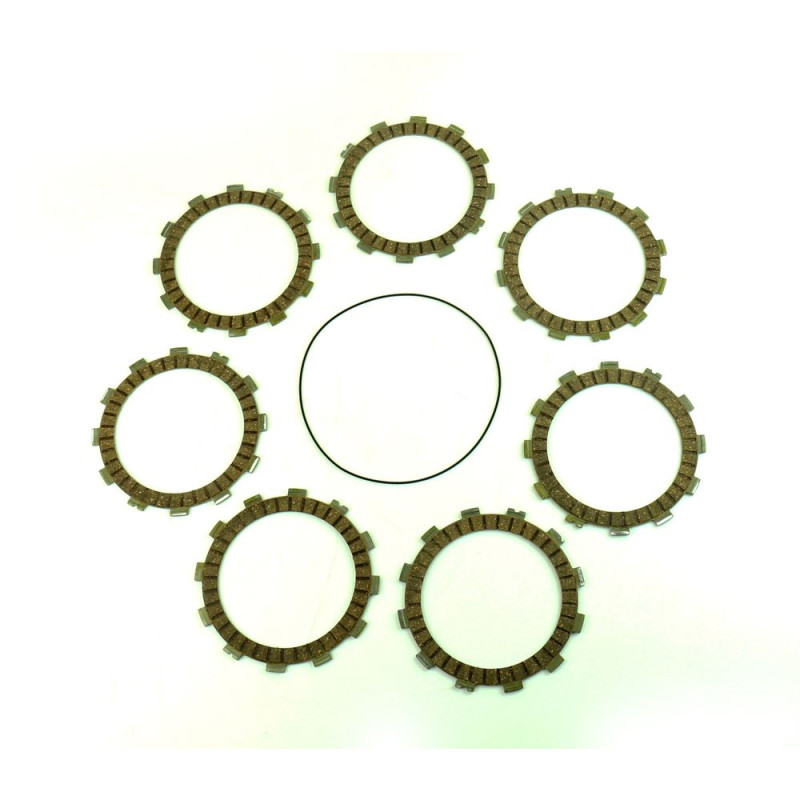

ATHENA Clutch Friction Plate Kit + cover gasket for HONDA CR 125 1986-1999

On HONDA CR 125 from 1986 to 1999, the ATHENA P40230053 clutch friction plate kit fits in place of the original part. Every start and every hard acceleration wears the clutch linings a little. New friction plates give you back a clutch that holds the torque and bites cleanly at the lever.

Specifications

• Brand: ATHENA
• Manufacturer part number: P40230053
• EAN code: 8052780272537
• Weight: 280 g
• Engine: 2-stroke

When to replace it?

• Revs rise but the bike doesn't pick up speed (slipping), especially in the higher gears.
• Engagement point that wanders, clutch that judders or smells burnt.
• Plates below the minimum thickness given in the manual.

Measure plate thickness with a vernier caliper at every clutch check and replace the plates once they're below the minimum in the manual, or as soon as they slip.

Fitting tips

1. Soak the new friction plates in gearbox oil before fitting them.
2. Check the steel plates (flatness, blueing) and the clutch springs; replace them if necessary.
3. Make sure the basket fingers aren't notched: if they are, the clutch will snag.
4. Reassemble in the original order, tighten to the manufacturer's torque and close up with a new clutch cover gasket.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Clutch steel plates : ATHENA · TECNIUM
• Clutch springs : BARNETT · EBC
• Clutch cover gasket : see the selection
• Gearbox oil : LIQUI MOLY 10W30 1 L · MOTUL 80W90 1 L

Frequently asked questions

Should the steel plates be replaced at the same time?
If they're blued, warped or marked, yes: fit new steel plates. If not, check them and keep them.

Is the cover gasket included?
Yes: this kit includes the clutch cover gasket.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CR 125 1999
HONDA CR 125 1998
HONDA CR 125 1997
HONDA CR 125 1996
HONDA CR 125 1995
HONDA CR 125 1994
HONDA CR 125 1993
HONDA CR 125 1992
HONDA CR 125 1991
HONDA CR 125 1990
HONDA CR 125 1989
HONDA CR 125 1988
HONDA CR 125 1987
HONDA CR 125 1986
