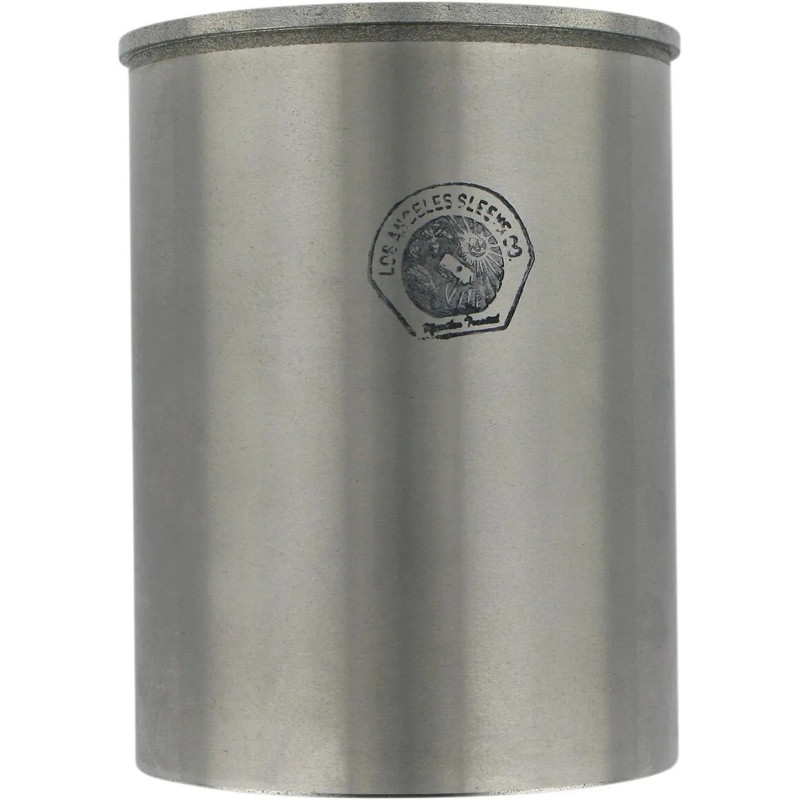

LA SLEEVE cylinder sleeve for HONDA XR 650 L from 1993 to 2025

LA SLEEVE offers this cylinder sleeve for HONDA XR 650 L from 1993 to 2025. The sleeve is the wall the piston moves up and down in. When it is worn or scored, it can be replaced in the original cylinder instead of buying a complete cylinder.

Why re-sleeve a cylinder?

The benefits:

• Save a cylinder that is scored or worn beyond its last oversize.
• Cast iron allows several rebores later: an oversize piston can be fitted at the next rebuilds.
• Often cheaper than a new cylinder.

Why choose LA SLEEVE?

L.A. Sleeve has been sleeving cylinders since 1945: its sleeves are centrifugally cast from a chrome-molybdenum alloy, hard and wear-resistant.

When should you replace the cylinder on your HONDA XR 650 L?

A scored or oval cylinder, or one with damaged plating, loses compression and wears the piston quickly. Measure the bore at every top-end rebuild: beyond the wear limit the cylinder must be replaced or resleeved.

Specifications and fitting tips

• Bore: 100.00 mm
• Displacement: 644 cm³
• Material: Chromoly steel
• Engine: 4-stroke
• Quality cylinder sleeves to bring old cylinders back to life
• Centerless-ground outside diameter for perfect roundness

Cross-Mania tip: Check the diameter of the supplied or required piston and replace the top-end gaskets. A big bore may require carburation or fuel-injection adjustment.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA XR 650 L 2025
HONDA XR 650 L 2024
HONDA XR 650 L 2023
HONDA XR 650 L 2021
HONDA XR 650 L 2020
HONDA XR 650 L 2019
HONDA XR 650 L 2018
HONDA XR 650 L 2017
HONDA XR 650 L 2016
HONDA XR 650 L 2015
HONDA XR 650 L 2014
HONDA XR 650 L 2013
HONDA XR 650 L 2012
HONDA XR 650 L 2009
HONDA XR 650 L 2008
HONDA XR 650 L 2007
HONDA XR 650 L 2006
HONDA XR 650 L 2005
HONDA XR 650 L 2004
HONDA XR 650 L 2003
HONDA XR 650 L 2002
HONDA XR 650 L 2001
HONDA XR 650 L 2000
HONDA XR 650 L 1999
HONDA XR 650 L 1998
HONDA XR 650 L 1997
HONDA XR 650 L 1996
HONDA XR 650 L 1995
HONDA XR 650 L 1994
HONDA XR 650 L 1993
