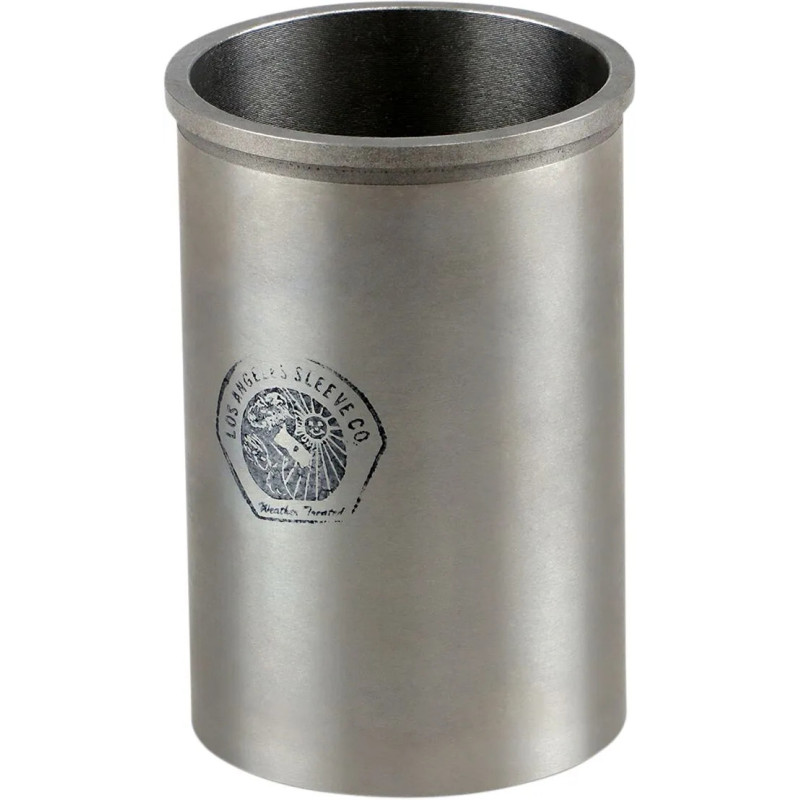

LA SLEEVE cylinder sleeve for HONDA CRF 230 F from 2004 to 2019

LA SLEEVE offers this cylinder sleeve for HONDA CRF 230 F from 2004 to 2019. The sleeve is the wall the piston moves up and down in. When it is worn or scored, it can be replaced in the original cylinder instead of buying a complete cylinder.

Why re-sleeve a cylinder?

The benefits:

• Save a cylinder that is scored or worn beyond its last oversize.
• Cast iron allows several rebores later: an oversize piston can be fitted at the next rebuilds.
• Often cheaper than a new cylinder.

Why choose LA SLEEVE?

L.A. Sleeve has been sleeving cylinders since 1945: its sleeves are centrifugally cast from a chrome-molybdenum alloy, hard and wear-resistant.

When should you replace the cylinder on your HONDA CRF 230 F?

A scored or oval cylinder, or one with damaged plating, loses compression and wears the piston quickly. Measure the bore at every top-end rebuild: beyond the wear limit the cylinder must be replaced or resleeved.

Specifications and fitting tips

• Bore: 65.50 mm
• Displacement: 223 cm³
• Material: Chromoly steel
• Engine: 4-stroke
• Quality cylinder sleeves to bring old cylinders back to life
• Centerless-ground outside diameter for perfect roundness

Cross-Mania tip: Check the diameter of the supplied or required piston and replace the top-end gaskets. A big bore may require carburation or fuel-injection adjustment.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CRF 230 F 2019
HONDA CRF 230 F 2017
HONDA CRF 230 F 2016
HONDA CRF 230 F 2015
HONDA CRF 230 F 2014
HONDA CRF 230 F 2013
HONDA CRF 230 F 2009
HONDA CRF 230 F 2008
HONDA CRF 230 F 2007
HONDA CRF 230 F 2006
HONDA CRF 230 F 2005
HONDA CRF 230 F 2004
