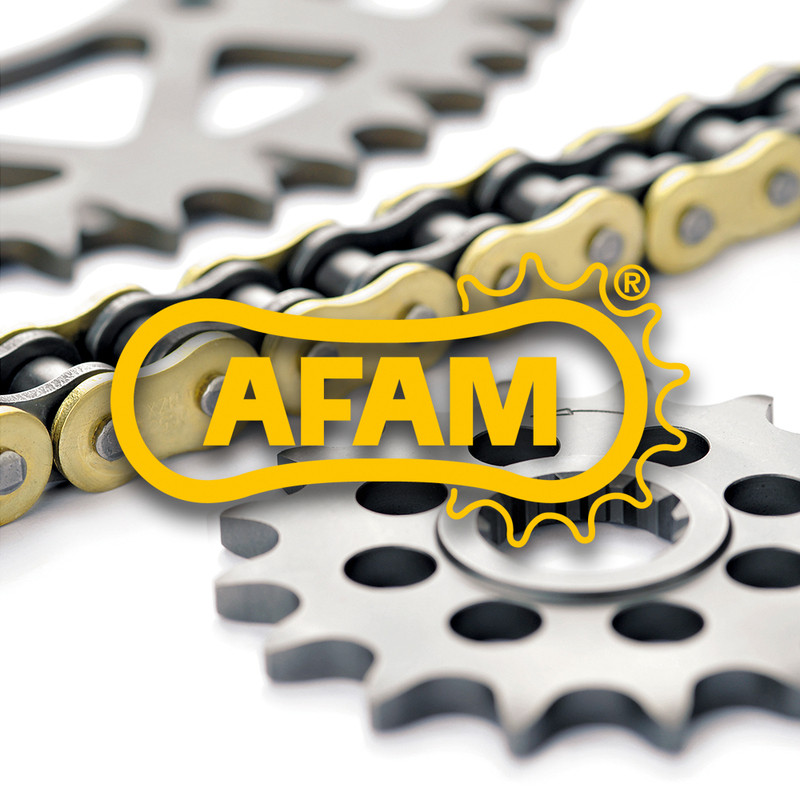

AFAM Chain Kit 520XRR3 13/40 Reinforced - Standard Rear Sprocket for YAMAHA YFM 350 WARRIOR 2WD 1989-2004
€130.90
Tax Included
A kit that replaces the chain, the small gearbox sprocket and the rear-wheel sprocket in one go: the three parts that carry the engine’s power to the wheel.
AFAM offers this chain and sprocket kit for YAMAHA YFM 350 WARRIOR 2WD 1989-2004. The front sprocket, on the gearbox output, drives the chain, which turns the rear sprocket bolted to the rear wheel.
Why replace the whole kit?
The benefits:
- A worn chain damages the teeth and worn teeth damage the chain: replacing all three parts together avoids ruining a new part within a few rides.
- Pitch, tooth counts and chain length are already matched: one order for the whole final drive.
- You can adapt the gearing: more teeth on the rear sprocket (or fewer on the front) gives more acceleration but less top speed; fewer teeth on the rear does the opposite.
When should you replace this part?
Hooked or pointed teeth, a chain that lifts off the back of the rear sprocket when pulled, tight spots or slack that needs adjusting every ride: the kit is worn out.
Specifications and fitting tips
- Front sprocket version: Standard
- Rear sprocket version: Reinforced
- Use: Off-Road
- Connecting link: Split link
- Rear Sprocket Material: Steel
- Standard Steel Front Sprocket: Precision-engineered, durable, and perfectly matched to the chain.
- Manufacturer part number: 483820
Cross-Mania tip: Align the rear wheel (same marks on both sides), tighten the rear sprocket bolts to the specified torque with threadlocker, set the slack to the manual and recheck it after the first ride.
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
YAMAHA YFM 350 WARRIOR 2WD 2004
YAMAHA YFM 350 WARRIOR 2WD 2003
YAMAHA YFM 350 WARRIOR 2WD 2002
YAMAHA YFM 350 WARRIOR 2WD 2001
YAMAHA YFM 350 WARRIOR 2WD 2000
YAMAHA YFM 350 WARRIOR 2WD 1999
YAMAHA YFM 350 WARRIOR 2WD 1998
YAMAHA YFM 350 WARRIOR 2WD 1997
YAMAHA YFM 350 WARRIOR 2WD 1996
YAMAHA YFM 350 WARRIOR 2WD 1995
YAMAHA YFM 350 WARRIOR 2WD 1994
YAMAHA YFM 350 WARRIOR 2WD 1993
YAMAHA YFM 350 WARRIOR 2WD 1992
YAMAHA YFM 350 WARRIOR 2WD 1991
YAMAHA YFM 350 WARRIOR 2WD 1990
YAMAHA YFM 350 WARRIOR 2WD 1989
