AFAM Chain Kit 428R1 14/57 Standard - Standard Rear Sprocket for SUZUKI DR-Z 125 L, DR-Z 125 LL, DRZ 125 2003-2025

Name: AFAM Chain Kit 428R1 14/57 Standard - Standard Rear Sprocket for SUZUKI DR-Z 125 L, DR-Z 125 LL, DRZ 125 2003-2025
Brand: AFAM
SKU: 480096
Price: 75.9 EUR
Availability: InStock

Review (0)

€75.90

Tax Included

Más de 5 unidades actualmente en stock en nuestro proveedor, enviado en 2 a 5 días.

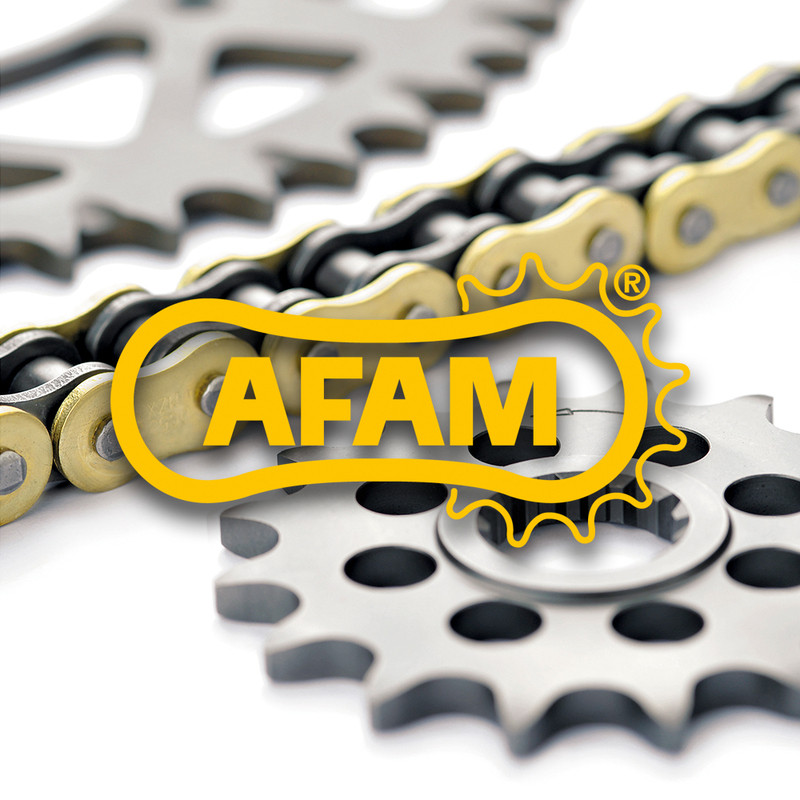

A kit that replaces the chain, the small gearbox sprocket and the rear-wheel sprocket in one go: the three parts that carry the engine’s power to the wheel.

AFAM offers this chain and sprocket kit for SUZUKI DR-Z 125 L, DR-Z 125 LL, DRZ 125 2003-2025. The front sprocket, on the gearbox output, drives the chain, which turns the rear sprocket bolted to the rear wheel.

Why replace the whole kit?

The benefits:

A worn chain damages the teeth and worn teeth damage the chain: replacing all three parts together avoids ruining a new part within a few rides.
Pitch, tooth counts and chain length are already matched: one order for the whole final drive.
You can adapt the gearing: more teeth on the rear sprocket (or fewer on the front) gives more acceleration but less top speed; fewer teeth on the rear does the opposite.

When should you replace this part?

Hooked or pointed teeth, a chain that lifts off the back of the rear sprocket when pulled, tight spots or slack that needs adjusting every ride: the kit is worn out.

Specifications and fitting tips

Front sprocket version: Standard
Rear sprocket version: Reinforced
Use: Off-Road
Connecting link: Split link
Rear Sprocket Material: Steel
Manufacturer part number: 480096

Cross-Mania tip: Align the rear wheel (same marks on both sides), tighten the rear sprocket bolts to the specified torque with threadlocker, set the slack to the manual and recheck it after the first ride.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Reference 480096

In stock6 Items
