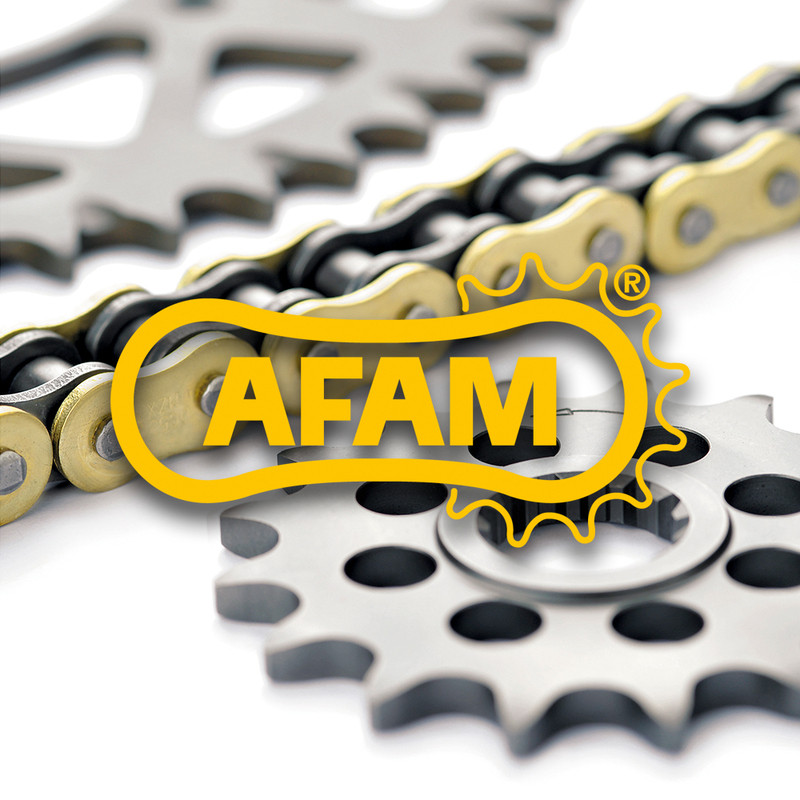

AFAM Chain Kit 520XRR3 12/48 Reinforced - Standard Rear Sprocket for GAS GAS EC 200 2003-2019

AFAM offers this chain and sprocket kit for GAS GAS EC 200 2003-2019. The front sprocket, on the gearbox output, drives the chain, which turns the rear sprocket bolted to the rear wheel.

Why replace the whole kit?

The benefits:

• A worn chain damages the teeth and worn teeth damage the chain: replacing all three parts together avoids ruining a new part within a few rides.
• Pitch, tooth counts and chain length are already matched: one order for the whole final drive.
• You can adapt the gearing: more teeth on the rear sprocket (or fewer on the front) gives more acceleration but less top speed; fewer teeth on the rear does the opposite.

When should you replace this part?

Hooked or pointed teeth, a chain that lifts off the back of the rear sprocket when pulled, tight spots or slack that needs adjusting every ride: the kit is worn out.

Specifications and fitting tips

• Front sprocket version: Standard
• Rear sprocket version: Reinforced
• Use: Off-Road
• Connecting link: Split link
• Rear Sprocket Material: Steel
• Standard Steel Front Sprocket: Precision-engineered, durable, and perfectly matched to the chain.
• Manufacturer part number: 48010755

Cross-Mania tip: Align the rear wheel (same marks on both sides), tighten the rear sprocket bolts to the specified torque with threadlocker, set the slack to the manual and recheck it after the first ride.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS EC 200 2019
GAS GAS EC 200 2018
GAS GAS EC 200 2017
GAS GAS EC 200 2015
GAS GAS EC 200 2014
GAS GAS EC 200 2013
GAS GAS EC 200 2012
GAS GAS EC 200 2011
GAS GAS EC 200 2010
GAS GAS EC 200 2009
GAS GAS EC 200 2008
GAS GAS EC 200 2007
GAS GAS EC 200 2006
GAS GAS EC 200 2005
GAS GAS EC 200 2004
GAS GAS EC 200 2003
