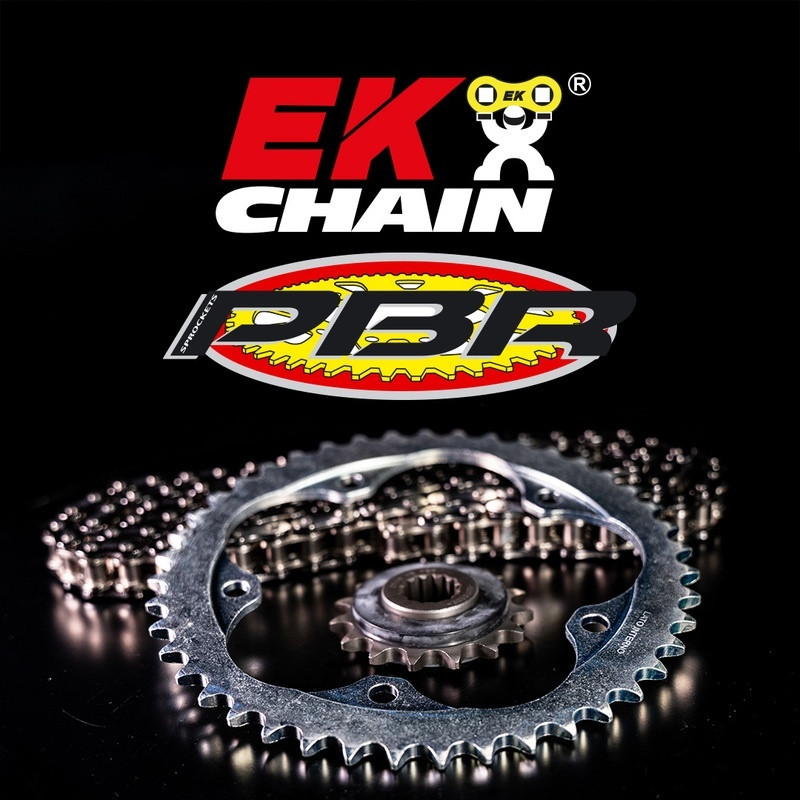

EK/PBR Chain Kit 520M3 14/47 - Standard Rear Sprocket for KAWASAKI KX 500 1987-2004

EK CHAIN offers this chain and sprocket kit for KAWASAKI KX 500 1987-2004. The front sprocket, on the gearbox output, drives the chain, which turns the rear sprocket bolted to the rear wheel.

Why replace the whole kit?

The benefits:

• A worn chain damages the teeth and worn teeth damage the chain: replacing all three parts together avoids ruining a new part within a few rides.
• Pitch, tooth counts and chain length are already matched: one order for the whole final drive.
• You can adapt the gearing: more teeth on the rear sprocket (or fewer on the front) gives more acceleration but less top speed; fewer teeth on the rear does the opposite.

When should you replace this part?

Hooked or pointed teeth, a chain that lifts off the back of the rear sprocket when pulled, tight spots or slack that needs adjusting every ride: the kit is worn out.

Specifications and fitting tips

• Front sprocket version: Standard
• Rear sprocket version: Reinforced
• Use: Off-Road
• Connecting link: Split link
• EK Chain Type: M3
• Manufacturer part number: 3035877/3035888

Cross-Mania tip: Align the rear wheel (same marks on both sides), tighten the rear sprocket bolts to the specified torque with threadlocker, set the slack to the manual and recheck it after the first ride.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 500 2004
KAWASAKI KX 500 2003
KAWASAKI KX 500 2002
KAWASAKI KX 500 2001
KAWASAKI KX 500 2000
KAWASAKI KX 500 1999
KAWASAKI KX 500 1998
KAWASAKI KX 500 1997
KAWASAKI KX 500 1996
KAWASAKI KX 500 1995
KAWASAKI KX 500 1994
KAWASAKI KX 500 1993
KAWASAKI KX 500 1992
KAWASAKI KX 500 1991
KAWASAKI KX 500 1990
KAWASAKI KX 500 1989
KAWASAKI KX 500 1988
KAWASAKI KX 500 1987
