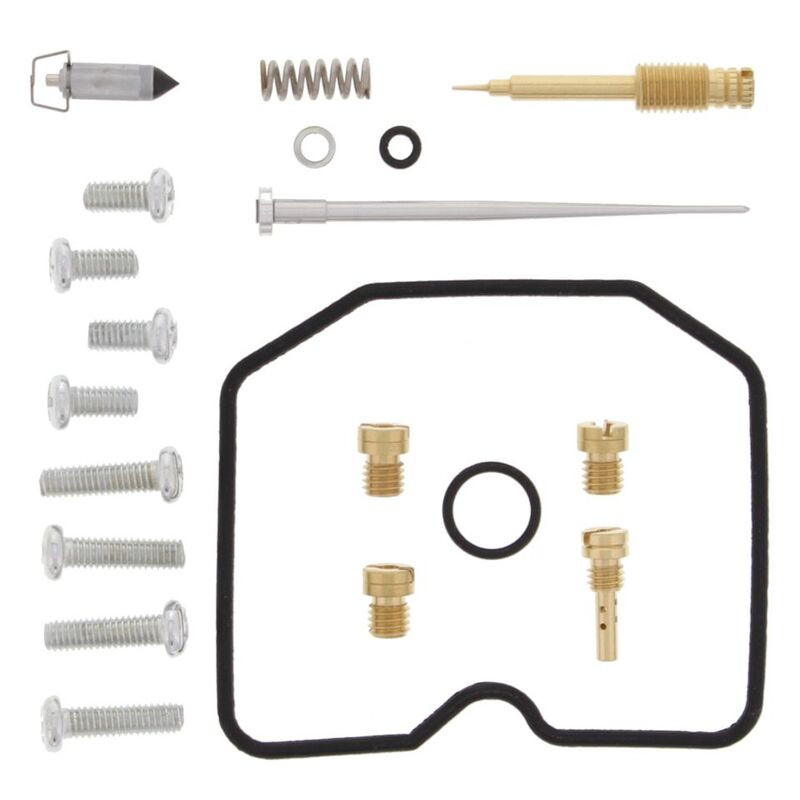

ALL BALLS Carburetor Repair Kit for KAWASAKI KVF 360 PRAIRIE 2WD, KVF 360 PRAIRIE 4WD 2003-2013

ALL BALLS offers this carburettor repair kit for KAWASAKI KVF 360 PRAIRIE 2WD, KVF 360 PRAIRIE 4WD 2003-2013. The carburettor prepares the air-fuel mixture the engine needs, through small passages and very precise parts.

Why a repair kit?

The benefits:

• All the wear parts in one order: no second strip-down for a forgotten seal.
• A sealed carburettor no longer leaks onto the hot engine or in the van.
• Much cheaper than a new carburettor when the body is in good condition.

Why choose ALL BALLS?

Complete All Balls kits: low-friction bearings and steel-spring nitrile seals, everything you need in one box.

When should you replace this part?

Fuel leaking around the bowl, a carburettor that overflows, an idle that hunts or hard starting despite a correct setting: the seals and float needle are tired, rebuild the carburettor.

Specifications and fitting tips

• Manufacturer part number: 26-1223

Cross-Mania tip: Strip it on a clean surface, noting where each part goes and how many turns the mixture screw is out, clean the passages with carb cleaner and compressed air (never with wire), then check the float height before closing the bowl.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KVF 360 PRAIRIE 2WD 2011
KAWASAKI KVF 360 PRAIRIE 2WD 2010
KAWASAKI KVF 360 PRAIRIE 2WD 2009
KAWASAKI KVF 360 PRAIRIE 2WD 2008
KAWASAKI KVF 360 PRAIRIE 2WD 2007
KAWASAKI KVF 360 PRAIRIE 2WD 2006
KAWASAKI KVF 360 PRAIRIE 2WD 2005
KAWASAKI KVF 360 PRAIRIE 2WD 2004
KAWASAKI KVF 360 PRAIRIE 2WD 2003
KAWASAKI KVF 360 PRAIRIE 4WD 2013
KAWASAKI KVF 360 PRAIRIE 4WD 2012
KAWASAKI KVF 360 PRAIRIE 4WD 2011
KAWASAKI KVF 360 PRAIRIE 4WD 2010
KAWASAKI KVF 360 PRAIRIE 4WD 2009
KAWASAKI KVF 360 PRAIRIE 4WD 2008
KAWASAKI KVF 360 PRAIRIE 4WD 2007
KAWASAKI KVF 360 PRAIRIE 4WD 2006
KAWASAKI KVF 360 PRAIRIE 4WD 2005
KAWASAKI KVF 360 PRAIRIE 4WD 2004
KAWASAKI KVF 360 PRAIRIE 4WD 2003
