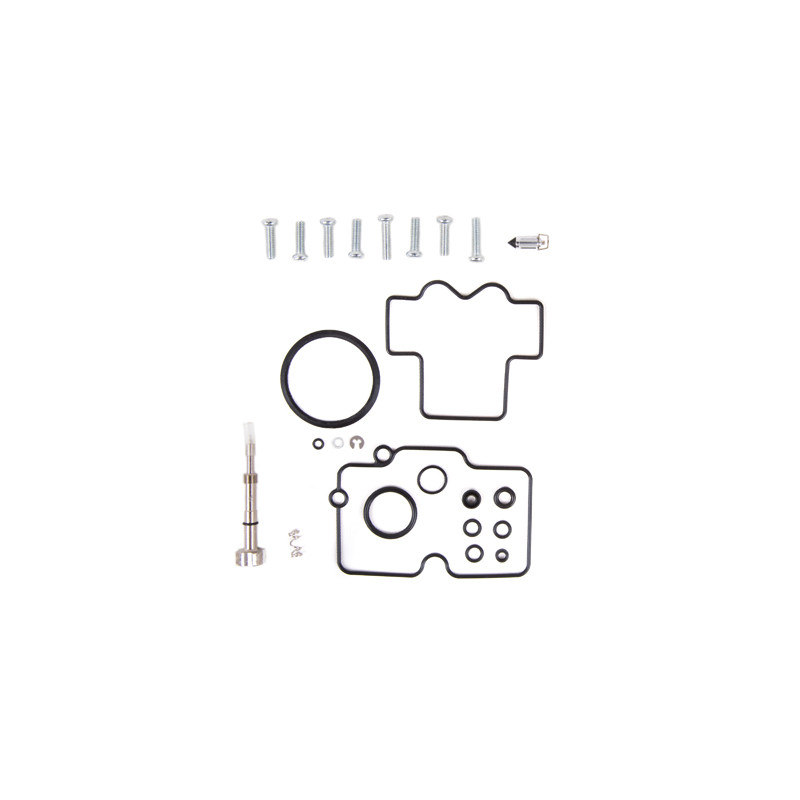

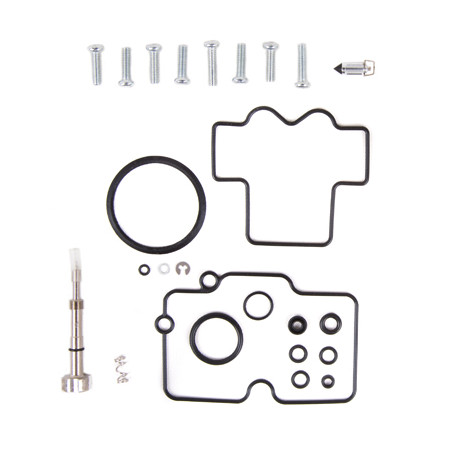

PROX Carburettor Rebuild Kit for KTM EXC, EXCF, SX, SXF 250, 400, 450, 505, 525, 530 2005-2012

The PROX 55.10520 carburettor rebuild kit is designed for KTM EXC 400, EXC 450, EXC 525, EXC 530, EXCF 250, SX 450, SX 505, SX 525, SXF 250, SXF 450, SXF 505 from 2005 to 2012. A carburettor that leaks, floods the engine or gives inconsistent carburation often needs new seals and a new float needle. This kit brings together the wear parts for a complete overhaul.

Key features

• NBR O-rings that resist the ethanol in today's fuels.
• Float bowl gasket in Interface material instead of the stock paper gasket, depending on the model.
• Jets in stock sizes, needle and seat depending on the model, fuel screw and small hardware.

Specifications

• Brand: PROX
• Manufacturer part number: 55.10520
• Weight: 40 g
• Engine: 4-stroke

When to replace it?

• Fuel running out of the overflow, float bowl overflowing.
• Unstable idle, hard starting, carburation that keeps changing.
• Hardened seals or a seeping float bowl.

When bringing a bike back into service after it has stood unused for a long time, during a full carburettor clean, or as soon as a leak appears.

Fitting tips

1. Strip and clean the carburettor (cleaning bath, compressed air), noting the original settings: float height, number of turns on the fuel screw.
2. Replace all the gaskets and O-rings in the kit, without reusing the old ones.
3. Set the float height according to the manual.
4. Reassemble, then set the idle and the fuel screw with the engine warm; check the colour of the spark plug after a few rides.

Why PROX?

ProX Racing Parts has been supplying engine and clutch parts to motocross riders since 1975, from its headquarters near Amsterdam. According to its catalogue, most of its parts are made in Japan, by manufacturers that also produce parts for the Japanese motorcycle makers.

Spare parts and items to plan

• Spark plug : NGK 3521 · NGK 97225
• Air filter : ALL BALLS · ATHENA
• Air filter oil : LIQUI MOLY 500 ml · LIQUI MOLY 1 L

Frequently asked questions

Does the kit change the jetting?
No: the jets supplied are the original sizes for your bike.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KTM EXC 400 2010
KTM EXC 400 2009
KTM EXC 400 2008
KTM EXC 400 2007
KTM EXC 450 2011
KTM EXC 450 2010
KTM EXC 450 2009
KTM EXC 450 2008
KTM EXC 450 2007
KTM EXC 450 2006
KTM EXC 525 2007
KTM EXC 525 2006
KTM EXC 530 2011
KTM EXC 530 2010
KTM EXC 530 2009
KTM EXC 530 2008
KTM EXCF 250 2011
KTM EXCF 250 2010
KTM EXCF 250 2009
KTM EXCF 250 2008
KTM EXCF 250 2007
KTM SX 450 2010
KTM SX 450 2009
KTM SX 450 2006
KTM SX 505 2010
KTM SX 505 2009
KTM SX 525 2007
KTM SX 525 2006
KTM SXF 250 2010
KTM SXF 250 2009
KTM SXF 250 2008
KTM SXF 250 2007
KTM SXF 250 2006
KTM SXF 250 2005
KTM SXF 450 2012
KTM SXF 450 2011
KTM SXF 450 2010
KTM SXF 450 2009
KTM SXF 450 2008
KTM SXF 450 2007
KTM SXF 505 2009
KTM SXF 505 2008
