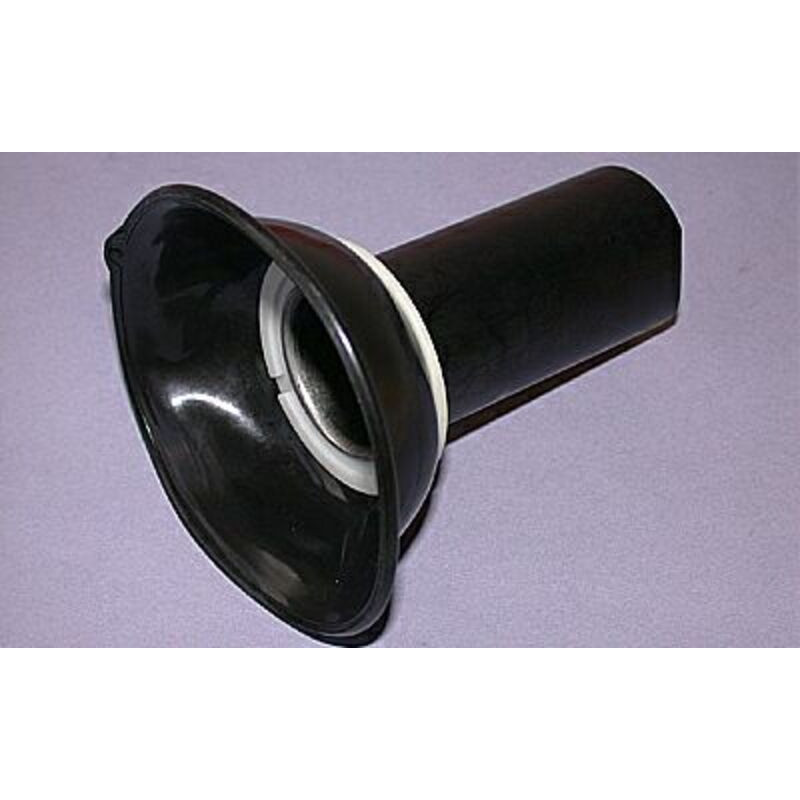

TOURMAX Carburetor Diaphragm 1 piece Suzuki

TOURMAX offers this carburettor slide. The slide is a kind of sliding gate across the carburettor’s air passage: with the throttle closed it blocks almost all of it; with the throttle open it lifts and lets the air through.

Why change the slide?

The benefits:

• Replace a worn slide that has play and lets extra air through.
• Fine-tune pick-up just off idle: a different cutaway cures a flat spot or an over-rich mixture at the start of the throttle opening.
• Get back a throttle that moves freely and snaps shut properly.

Why choose TOURMAX?

Tourmax has its parts made in Japan by suppliers to the major Japanese manufacturers, at OEM quality level according to the brand.

When should you replace this part?

A slide that is scored, worn or loose in the body, or a split diaphragm on a CV carburettor: the idle becomes unstable, the engine draws in extra air and the throttle sticks.

Specifications and fitting tips

• Tourmax Carburetor Diaphragm
• 1 piece
• Manufacturer part number: VCC-306

Cross-Mania tip: Fit the slide the right way round (cutaway towards the air filter), check it slides freely with no tight spots and check the throttle cable free play with the bars turned fully both ways.

Compatibility

Part made for the model named in the title: check that it matches your vehicle exactly (model, engine size, year) before ordering.
