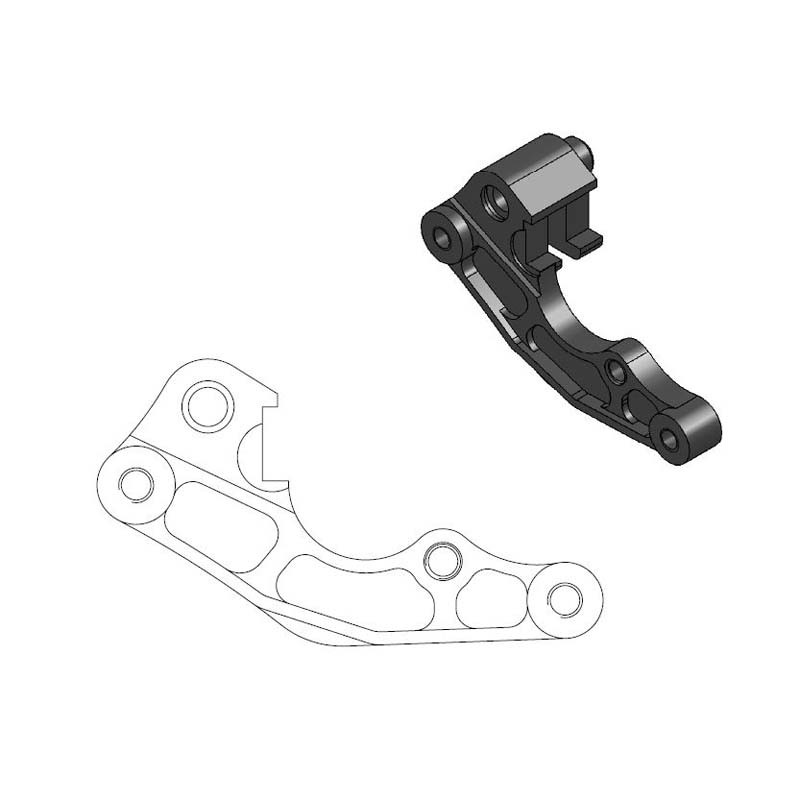

MOTO-MASTER Oversize Disc Caliper Relocation Bracket Ø260 mm for SUZUKI, KAWASAKI and YAMAHA 1996-2027

The MOTO-MASTER Ø260 mm 211004 caliper relocation bracket is designed for SUZUKI DRZ 250, DRZ 400, RM 125, RM 250, RMX 450, RMZ 250, RMZ 450, YAMAHA WRF 400, YZ 125, YZ 250, YZF 400, YZF 426 and KAWASAKI KLX 400, KLX 450, KX 250, KXF 250, KXF 450 from 1996 to 2027. This bracket moves the caliper outwards so that it can grip a larger-diameter disc (oversize disc). It's what lets you fit a bigger disc while keeping the stock caliper.

Specifications

• Brand: MOTO-MASTER
• Manufacturer part number: 211004
• EAN code: 8790497001094
• For Ø260 mm disc
• Weight: 120 g

Who is it for?

• You're fitting an oversize disc and your stock bracket no longer works with it.
• Stock bracket bent or cracked after a crash.

Good to know

The disc diameter stated must exactly match that of the disc fitted. Also check the wheel axle diameter where it's specified.

Fitting tips

1. Remove the caliper without opening the hydraulic system and tie it up so it doesn't hang on the brake line.
2. Mount the bracket on the fork or the swingarm to the manufacturer's torque, with medium-strength threadlocker.
3. Fit the caliper on the bracket and check that the disc sits centred between the pads.
4. Pump the lever or pedal and check the brakes with the bike stationary before riding.

Why MOTO-MASTER?

Moto-Master is a Dutch brand founded in 1997 by Gaston Vernon that specialises in braking: discs, sintered pads and oversize kits. Its discs are designed in CAD and then laser-cut on CNC machines, with manufacturing in the Netherlands and ISO 9001:2015 certification.

Spare parts and items to plan

• Brake disc : BREMBO · TRW
• Brake pads : BILTWELL · CL BRAKES

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KLX 400 2006
KAWASAKI KLX 400 2005
KAWASAKI KLX 400 2004
KAWASAKI KLX 400 2003
KAWASAKI KLX 450 2019
KAWASAKI KLX 450 2018
KAWASAKI KLX 450 2017
KAWASAKI KLX 450 2016
KAWASAKI KLX 450 2015
KAWASAKI KLX 450 2014
KAWASAKI KLX 450 2013
KAWASAKI KLX 450 2012
KAWASAKI KLX 450 2011
KAWASAKI KLX 450 2010
KAWASAKI KLX 450 2009
KAWASAKI KLX 450 2008
KAWASAKI KX 250 2008
KAWASAKI KX 250 2007
KAWASAKI KX 250 2006
KAWASAKI KXF 250 2026
KAWASAKI KXF 250 2025
KAWASAKI KXF 250 2024
KAWASAKI KXF 250 2023
KAWASAKI KXF 250 2022
KAWASAKI KXF 250 2021
KAWASAKI KXF 250 2020
KAWASAKI KXF 250 2019
KAWASAKI KXF 450 2023
KAWASAKI KXF 450 2022
KAWASAKI KXF 450 2021
KAWASAKI KXF 450 2020
KAWASAKI KXF 450 2019
KAWASAKI KXF 450 2018
KAWASAKI KXF 450 2017
KAWASAKI KXF 450 2016
KAWASAKI KXF 450 2015
KAWASAKI KXF 450 2014
KAWASAKI KXF 450 2013
KAWASAKI KXF 450 2012
KAWASAKI KXF 450 2011
KAWASAKI KXF 450 2010
KAWASAKI KXF 450 2009
KAWASAKI KXF 450 2008
KAWASAKI KXF 450 2007
KAWASAKI KXF 450 2006
SUZUKI DRZ 250 2007
SUZUKI DRZ 250 2006
SUZUKI DRZ 250 2005
SUZUKI DRZ 250 2004
SUZUKI DRZ 250 2003
SUZUKI DRZ 250 2002
SUZUKI DRZ 250 2001
SUZUKI DRZ 400 2017
SUZUKI DRZ 400 2016
SUZUKI DRZ 400 2015
SUZUKI DRZ 400 2014
SUZUKI DRZ 400 2013
SUZUKI DRZ 400 2012
SUZUKI DRZ 400 2011
SUZUKI DRZ 400 2010
SUZUKI DRZ 400 2009
SUZUKI DRZ 400 2008
SUZUKI DRZ 400 2007
SUZUKI DRZ 400 2006
SUZUKI DRZ 400 2005
SUZUKI DRZ 400 2004
SUZUKI DRZ 400 2003
SUZUKI DRZ 400 2002
SUZUKI DRZ 400 2001
SUZUKI DRZ 400 2000
SUZUKI RM 125 2008
SUZUKI RM 125 2007
SUZUKI RM 125 2006
SUZUKI RM 125 2005
SUZUKI RM 125 2004
SUZUKI RM 125 2003
SUZUKI RM 125 2002
SUZUKI RM 125 2001
SUZUKI RM 125 2000
SUZUKI RM 125 1999
SUZUKI RM 125 1998
SUZUKI RM 125 1997
SUZUKI RM 125 1996
SUZUKI RM 250 2008
SUZUKI RM 250 2007
SUZUKI RM 250 2006
SUZUKI RM 250 2005
SUZUKI RM 250 2004
SUZUKI RM 250 2003
SUZUKI RM 250 2002
SUZUKI RM 250 2001
SUZUKI RM 250 2000
SUZUKI RM 250 1999
SUZUKI RM 250 1998
SUZUKI RM 250 1997
SUZUKI RM 250 1996
SUZUKI RMX 450 2019
SUZUKI RMX 450 2018
SUZUKI RMX 450 2017
SUZUKI RMX 450 2016
SUZUKI RMX 450 2015
SUZUKI RMX 450 2014
SUZUKI RMX 450 2013
SUZUKI RMX 450 2012
SUZUKI RMX 450 2011
SUZUKI RMX 450 2010
SUZUKI RMZ 250 2027
SUZUKI RMZ 250 2026
SUZUKI RMZ 250 2025
SUZUKI RMZ 250 2024
SUZUKI RMZ 250 2023
SUZUKI RMZ 250 2022
SUZUKI RMZ 250 2021
SUZUKI RMZ 250 2020
SUZUKI RMZ 250 2019
SUZUKI RMZ 250 2018
SUZUKI RMZ 250 2017
SUZUKI RMZ 250 2016
SUZUKI RMZ 250 2015
SUZUKI RMZ 250 2014
SUZUKI RMZ 250 2013
SUZUKI RMZ 250 2012
SUZUKI RMZ 250 2011
SUZUKI RMZ 250 2010
SUZUKI RMZ 250 2009
SUZUKI RMZ 250 2008
SUZUKI RMZ 250 2007
SUZUKI RMZ 450 2027
SUZUKI RMZ 450 2026
SUZUKI RMZ 450 2025
SUZUKI RMZ 450 2024
SUZUKI RMZ 450 2023
SUZUKI RMZ 450 2022
SUZUKI RMZ 450 2021
SUZUKI RMZ 450 2020
SUZUKI RMZ 450 2019
SUZUKI RMZ 450 2018
SUZUKI RMZ 450 2017
SUZUKI RMZ 450 2016
SUZUKI RMZ 450 2015
SUZUKI RMZ 450 2014
SUZUKI RMZ 450 2013
SUZUKI RMZ 450 2012
SUZUKI RMZ 450 2011
SUZUKI RMZ 450 2010
SUZUKI RMZ 450 2009
SUZUKI RMZ 450 2008
SUZUKI RMZ 450 2007
SUZUKI RMZ 450 2006
SUZUKI RMZ 450 2005
YAMAHA WRF 400 2000
YAMAHA WRF 400 1999
YAMAHA WRF 400 1998
YAMAHA YZ 125 2000
YAMAHA YZ 125 1999
YAMAHA YZ 125 1998
YAMAHA YZ 250 2000
YAMAHA YZ 250 1999
YAMAHA YZ 250 1998
YAMAHA YZF 400 1999
YAMAHA YZF 400 1998
YAMAHA YZF 426 2000
