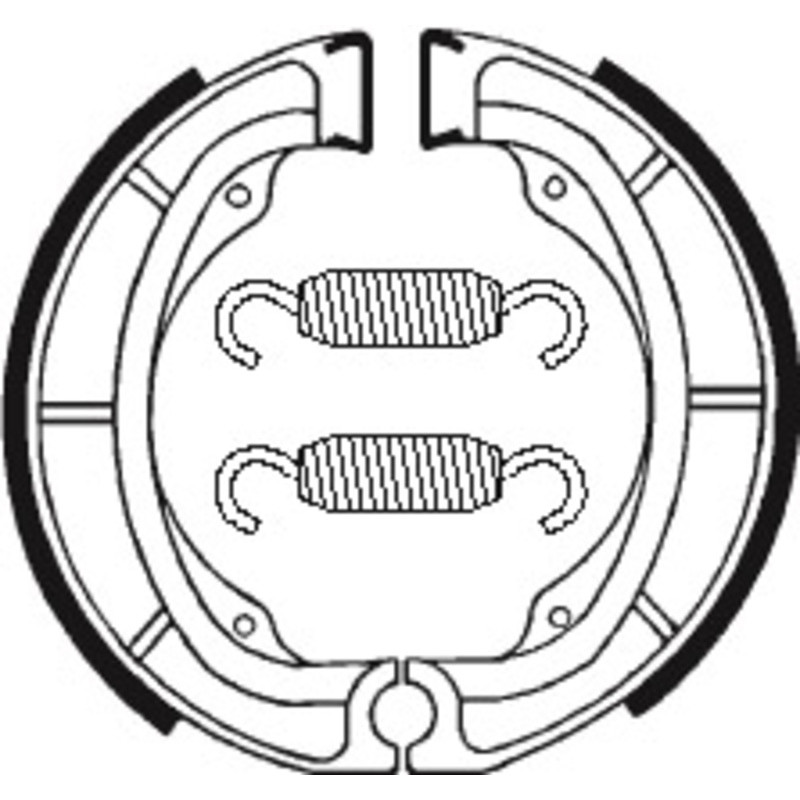

TECNIUM Street/Off-Road/ATV Organic Brake shoes for SUZUKI DR 500 S, LT-F 160 QUADRUNNER 2WD and KAWASAKI KDX 250, KX 250

TECNIUM offers these brake shoes for SUZUKI DR 500 S, LT 125 QUADRUNNER 2WD, LT-F 160 QUADRUNNER 2WD, TS 250, TS 250 X and KAWASAKI KDX 250, KL 250, KX 250, KX 420 1971-2007. A drum brake is made up of a hollow cylinder, the drum, which turns with the wheel, and two shoes mounted inside it on the brake backing plate.

Why fit new brake shoes?

The benefits:

• Get back strong, progressive braking, with a lever or pedal that no longer travels all the way to the stop.
• Organic lining: effective from the first few metres, even when cold, and gentle on the drum.
• Replacing the shoes in time stops their metal backing from scoring the drum, a much more expensive part.

When should you replace this part?

Thin or glazed linings, the wear indicator at the end of its range, a lever or pedal that travels further and further, or a metallic scraping noise: replace the shoes.

Specifications and fitting tips

• Brake Pad Type: Replacement
• Homologation: TÜV approved
• Material: Organic
• Use: Standard
• Manufacturer part number: BA016

Cross-Mania tip: Clean the drum with brake cleaner, lightly grease the cam and pivot pin without touching the linings, replace the springs if they are tired and adjust the lever or pedal free play.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KDX 250 1982
KAWASAKI KDX 250 1981
KAWASAKI KDX 250 1980
KAWASAKI KL 250 1980
KAWASAKI KL 250 1979
KAWASAKI KL 250 1978
KAWASAKI KX 250 1981
KAWASAKI KX 250 1980
KAWASAKI KX 250 1979
KAWASAKI KX 250 1978
KAWASAKI KX 250 1977
KAWASAKI KX 250 1976
KAWASAKI KX 250 1975
KAWASAKI KX 250 1974
KAWASAKI KX 420 1981
KAWASAKI KX 420 1980
SUZUKI DR 500 S 1988
SUZUKI DR 500 S 1987
SUZUKI DR 500 S 1986
SUZUKI DR 500 S 1985
SUZUKI DR 500 S 1984
SUZUKI DR 500 S 1983
SUZUKI DR 500 S 1982
SUZUKI DR 500 S 1981
SUZUKI LT 125 QUADRUNNER 2WD 1987
SUZUKI LT 125 QUADRUNNER 2WD 1986
SUZUKI LT 125 QUADRUNNER 2WD 1985
SUZUKI LT 125 QUADRUNNER 2WD 1984
SUZUKI LT-F 160 QUADRUNNER 2WD 2007
SUZUKI LT-F 160 QUADRUNNER 2WD 2006
SUZUKI LT-F 160 QUADRUNNER 2WD 2005
SUZUKI LT-F 160 QUADRUNNER 2WD 2004
SUZUKI LT-F 160 QUADRUNNER 2WD 2003
SUZUKI LT-F 160 QUADRUNNER 2WD 2002
SUZUKI LT-F 160 QUADRUNNER 2WD 2001
SUZUKI LT-F 160 QUADRUNNER 2WD 2000
SUZUKI LT-F 160 QUADRUNNER 2WD 1999
SUZUKI LT-F 160 QUADRUNNER 2WD 1998
SUZUKI LT-F 160 QUADRUNNER 2WD 1997
SUZUKI LT-F 160 QUADRUNNER 2WD 1996
SUZUKI LT-F 160 QUADRUNNER 2WD 1995
SUZUKI LT-F 160 QUADRUNNER 2WD 1994
SUZUKI LT-F 160 QUADRUNNER 2WD 1993
SUZUKI LT-F 160 QUADRUNNER 2WD 1992
SUZUKI LT-F 160 QUADRUNNER 2WD 1991
SUZUKI LT-F 160 QUADRUNNER 2WD 1990
SUZUKI RM 250 1979
SUZUKI RM 250 1978
SUZUKI RM 250 1977
SUZUKI RM 250 1976
SUZUKI RM 400 1980
SUZUKI RM 400 1979
SUZUKI RM 400 1978
SUZUKI RM 465 1982
SUZUKI RM 465 1981
SUZUKI SP 370 1979
SUZUKI SP 370 1978
SUZUKI TS 250 1978
SUZUKI TS 250 1977
SUZUKI TS 250 1976
SUZUKI TS 250 1975
SUZUKI TS 250 1974
SUZUKI TS 250 1973
SUZUKI TS 250 1972
SUZUKI TS 250 1971
SUZUKI TS 250 ER 1981
SUZUKI TS 250 ER 1980
SUZUKI TS 250 ER 1979
SUZUKI TS 250 X 1989
SUZUKI TS 250 X 1988
SUZUKI TS 250 X 1987
SUZUKI TS 250 X 1986
SUZUKI TS 250 X 1985
SUZUKI TS 250 X 1984
SUZUKI TS 250 X 1983
