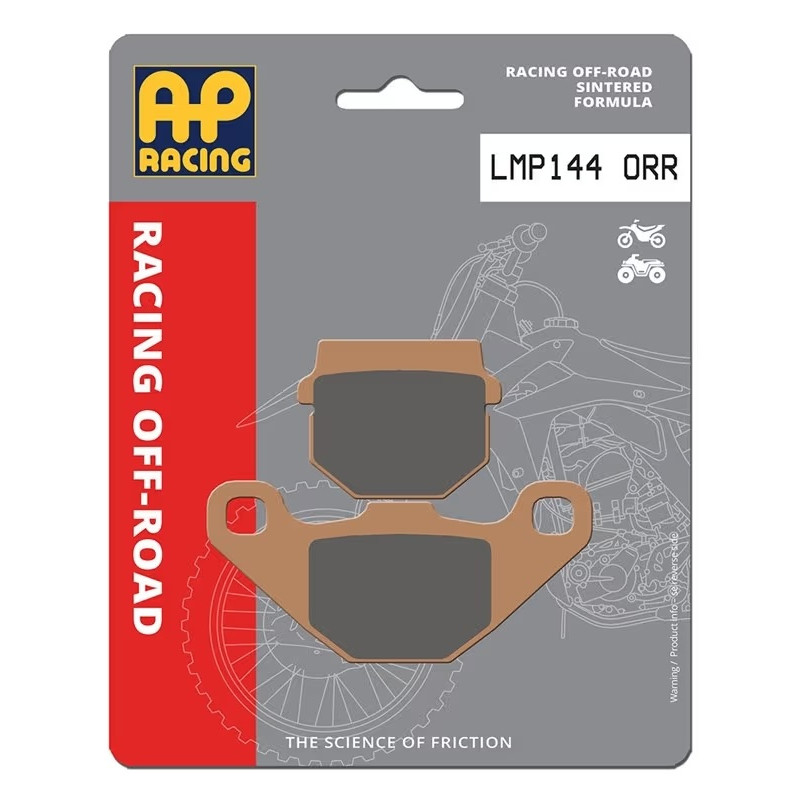

AP RACING sintered Front/Rear Brake Pads for KAWASAKI KDX 125, KX 80, KX 100, KX 125, KX 250 and SUZUKI RM 80, RM 85 1982-2004

The AP RACING LMP144OR set of brake pads is designed for KAWASAKI KDX 125, KX 80, KX 100, KX 125, KX 250 and SUZUKI RM 80, RM 85 from 1982 to 2004. Pressed against the disc by the caliper, the pads turn the bike's energy into heat. Their friction material wears a little with every stop, and even faster in muddy conditions.

Specifications

• Brand: AP RACING
• Manufacturer part number: LMP144OR
• EAN code: 5700757006946
• ECE R90 approved
• Compound: sintered metal
• Engine: 2-stroke

When to replace it?

• Friction material worn below the minimum thickness in the manual (often 1 to 2 mm), or wear groove gone.
• Metallic grinding noise when braking.
• Lever or pedal going further, brakes with less bite.

Check pad thickness before every ride, especially in muddy conditions. Never wait for metal-to-metal contact: it scores the disc within a few stops.

Fitting tips

1. Push the caliper pistons back while keeping an eye on the brake fluid level in the reservoir, which will rise.
2. Clean the caliper and the pad pin, and replace the pin if it's marked.
3. Fit the pads with their spring or clip, the right way round, then pump the lever or pedal until you get normal travel back.
4. Check the condition of the disc: a disc that's too thin or warped wears out new pads.
5. Bed in the pads with a dozen progressive stops before riding hard.

Why AP RACING?

AP Racing, based in Coventry, is the name given in 1970 to the competition division of Automotive Products, a company founded in London in 1920. In motorcycling, the brand launched the first commercially available racing disc brake as early as 1966, and MV Agusta won the 1973 500 cc world title with its brakes, the first title ever won on disc brakes.

Spare parts and items to plan

• Brake disc : SBS 5283 · SBS 5269
• Brake fluid : MOTUL 5 L · MOTUL 500 ml

Frequently asked questions

Sintered or organic?
Sintered (metallic) pads last longer and stay effective in mud and water: they're the benchmark for motocross and enduro. Organic pads are gentler on the disc and bite well from cold.

Should both sides be changed?
Always replace the complete set for a given caliper, and check the disc while you're at it.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KDX 125 1994
KAWASAKI KDX 125 1993
KAWASAKI KDX 125 1992
KAWASAKI KDX 125 1991
KAWASAKI KDX 125 1990
KAWASAKI KX 80 1996
KAWASAKI KX 80 1995
KAWASAKI KX 80 1994
KAWASAKI KX 80 1993
KAWASAKI KX 80 1992
KAWASAKI KX 80 1991
KAWASAKI KX 80 1990
KAWASAKI KX 80 1989
KAWASAKI KX 80 1988
KAWASAKI KX 80 1987
KAWASAKI KX 80 1986
KAWASAKI KX 80 1985
KAWASAKI KX 80 1984
KAWASAKI KX 100 1996
KAWASAKI KX 100 1995
KAWASAKI KX 100 1994
KAWASAKI KX 100 1993
KAWASAKI KX 100 1992
KAWASAKI KX 100 1991
KAWASAKI KX 100 1990
KAWASAKI KX 100 1989
KAWASAKI KX 100 1988
KAWASAKI KX 125 1982
KAWASAKI KX 250 1982
SUZUKI RM 80 2001
SUZUKI RM 80 2000
SUZUKI RM 80 1999
SUZUKI RM 80 1998
SUZUKI RM 80 1997
SUZUKI RM 80 1996
SUZUKI RM 80 1995
SUZUKI RM 80 1994
SUZUKI RM 80 1993
SUZUKI RM 80 1992
SUZUKI RM 80 1991
SUZUKI RM 80 1990
SUZUKI RM 85 2004
SUZUKI RM 85 2003
SUZUKI RM 85 2002
