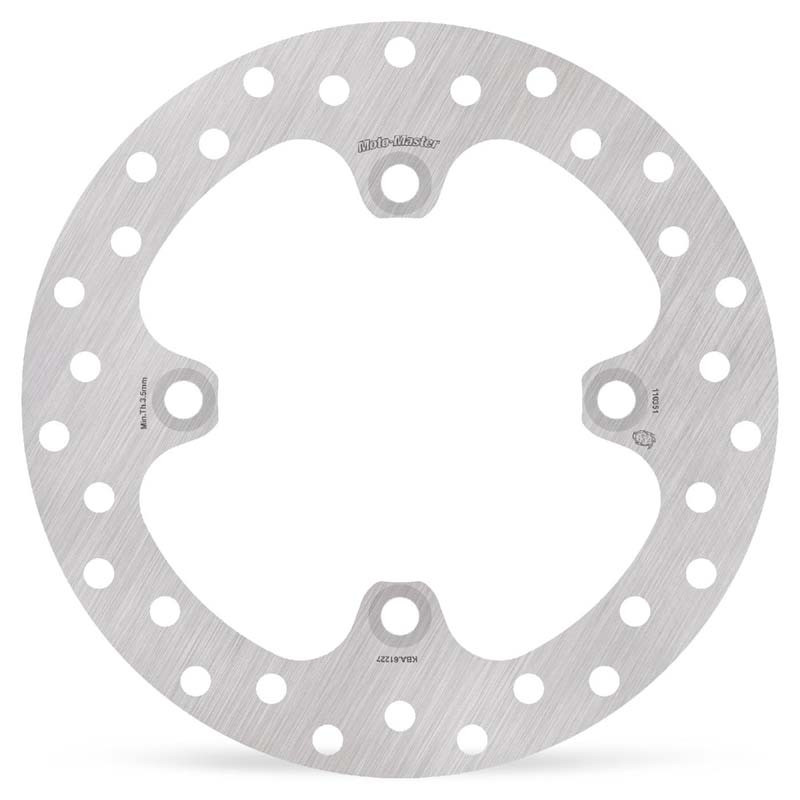

MOTO-MASTER Halo Rear Brake Disc for YAMAHA GRIZZLY 700 2007-2024

The MOTO-MASTER 110351 brake disc is designed for YAMAHA GRIZZLY 700 from 2007 to 2024. The disc, bolted to the hub, is the surface the pads clamp onto. It has to stay flat and thick enough to get rid of the heat: a tired disc lengthens stopping distances and wears the pads.

Specifications

• Brand: MOTO-MASTER
• Manufacturer part number: 110351
• EAN code: 8790497024451
• Weight: 530 g
• Engine: 4-stroke

When to replace it?

• Thickness below the minimum stamped on the disc or given in the manual.
• Warped disc: vibration through the lever or pedal, brake that “pulses”.
• Deep scoring, cracks or blueing after overheating.

Measure the thickness with a micrometer every time you change the pads, and replace the disc as soon as it reaches the minimum thickness, or if it's warped or cracked.

Fitting tips

1. Clean the hub mounting face: a single grain of sand under the disc is enough to throw it out of true.
2. Fit the disc the right way round (markings facing out, direction of rotation if indicated).
3. Tighten the bolts in a criss-cross pattern to the manufacturer's torque, with medium-strength threadlocker.
4. Degrease the disc and ideally fit new pads.
5. Bed in with a dozen progressive stops.

Why MOTO-MASTER?

In motocross, Moto-Master was working with the Red Bull KTM Factory Racing team as early as 2010, and it backed the MXGP world championship in 2015. On the technical side, the Flame profile of its discs is designed to improve cooling and go easy on the pads, and its Racing GP sintered pads use a backing plate with hooks (NRS technology) that stops the friction material from coming away.

Spare parts and items to plan

• Brake pads : see the selection
• Brake fluid : MOTUL 500 ml · MOTUL 5 L

Frequently asked questions

Should the pads be changed along with the disc?
It's strongly recommended: worn pads have taken on the shape of the old disc and won't brake well on a new one.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
YAMAHA GRIZZLY 700 2024
YAMAHA GRIZZLY 700 2023
YAMAHA GRIZZLY 700 2022
YAMAHA GRIZZLY 700 2021
YAMAHA GRIZZLY 700 2020
YAMAHA GRIZZLY 700 2019
YAMAHA GRIZZLY 700 2018
YAMAHA GRIZZLY 700 2017
YAMAHA GRIZZLY 700 2016
YAMAHA GRIZZLY 700 2015
YAMAHA GRIZZLY 700 2014
YAMAHA GRIZZLY 700 2013
YAMAHA GRIZZLY 700 2012
YAMAHA GRIZZLY 700 2011
YAMAHA GRIZZLY 700 2010
YAMAHA GRIZZLY 700 2009
YAMAHA GRIZZLY 700 2008
YAMAHA GRIZZLY 700 2007
