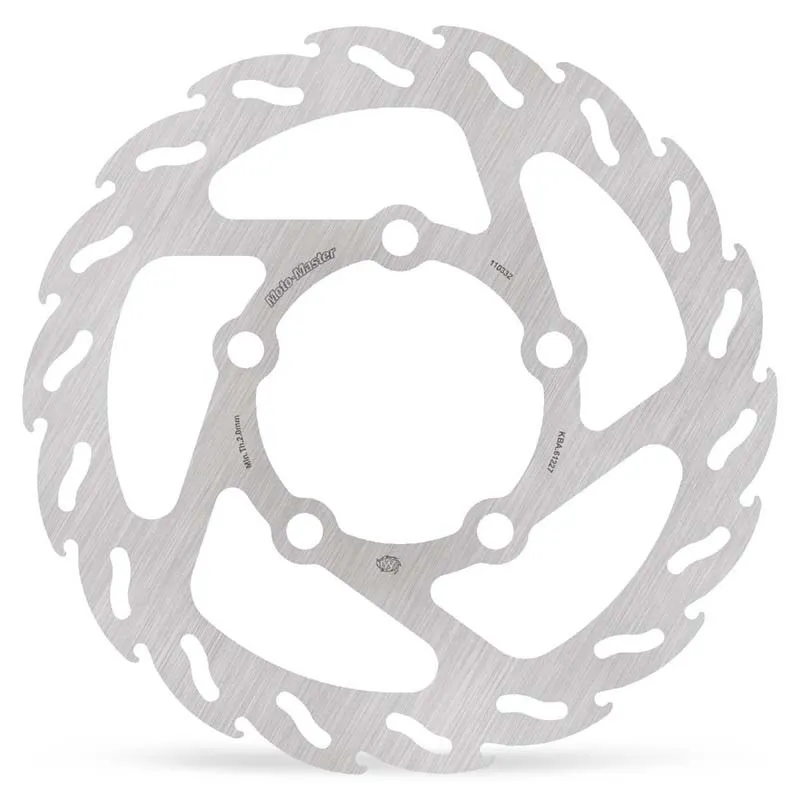

MOTO-MASTER Flame Rear Brake Disc for KTM SX 50 2002-2013

On KTM SX 50 from 2002 to 2013, the MOTO-MASTER 110332 brake disc fits in place of the original part. Gripped by the pads, the brake disc soaks up the heat of every stop. Its design (cut-outs, petal profile) helps clear mud and cool it down.

Specifications

• Brand: MOTO-MASTER
• Manufacturer part number: 110332
• EAN code: 8790497001773
• Weight: 270 g
• Engine: 2-stroke

When to replace it?

• Thickness below the minimum stamped on the disc or given in the manual.
• Warped disc: vibration through the lever or pedal, brake that “pulses”.
• Deep scoring, cracks or blueing after overheating.

Measure the thickness with a micrometer every time you change the pads, and replace the disc as soon as it reaches the minimum thickness, or if it's warped or cracked.

Fitting tips

1. Clean the hub mounting face: a single grain of sand under the disc is enough to throw it out of true.
2. Fit the disc the right way round (markings facing out, direction of rotation if indicated).
3. Tighten the bolts in a criss-cross pattern to the manufacturer's torque, with medium-strength threadlocker.
4. Degrease the disc and ideally fit new pads.
5. Bed in with a dozen progressive stops.

Why MOTO-MASTER?

Moto-Master is a Dutch brand founded in 1997 by Gaston Vernon that specialises in braking: discs, sintered pads and oversize kits. Its discs are designed in CAD and then laser-cut on CNC machines, with manufacturing in the Netherlands and ISO 9001:2015 certification.

Spare parts and items to plan

• Brake pads : CL BRAKES 1128MX10 · CL BRAKES 1128X59
• Brake fluid : MOTUL 5 L · MOTUL 500 ml

Frequently asked questions

Should the pads be changed along with the disc?
It's strongly recommended: worn pads have taken on the shape of the old disc and won't brake well on a new one.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KTM SX 50 2013
KTM SX 50 2012
KTM SX 50 2011
KTM SX 50 2010
KTM SX 50 2009
KTM SX 50 2008
KTM SX 50 2007
KTM SX 50 2006
KTM SX 50 2005
KTM SX 50 2004
KTM SX 50 2003
KTM SX 50 2002
