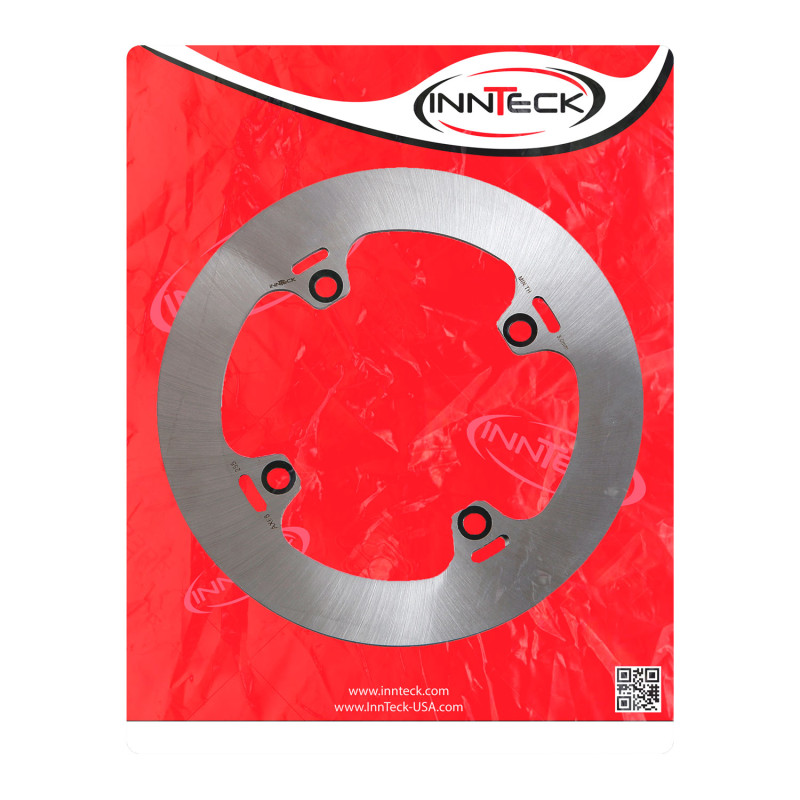

T-BRAKE fixed Rear Brake Disc for SHERCO 250, 300, SE 125, SE 250, SE 300, SEF 250, SEF 300, SEF 450, SEF 500 2012-2024

The T-BRAKE AX68-099 brake disc is designed for SHERCO 250, 300, SE 125, SE 250, SE 300, SEF 250, SEF 300, SEF 450, SEF 500 from 2012 to 2024. The disc, bolted to the hub, is the surface the pads clamp onto. It has to stay flat and thick enough to get rid of the heat: a tired disc lengthens stopping distances and wears the pads.

Specifications

• Brand: T-BRAKE
• Manufacturer part number: AX68-099
• EAN code: 8050040141524

When to replace it?

• Thickness below the minimum stamped on the disc or given in the manual.
• Warped disc: vibration through the lever or pedal, brake that “pulses”.
• Deep scoring, cracks or blueing after overheating.

Measure the thickness with a micrometer every time you change the pads, and replace the disc as soon as it reaches the minimum thickness, or if it's warped or cracked.

Fitting tips

1. Clean the hub mounting face: a single grain of sand under the disc is enough to throw it out of true.
2. Fit the disc the right way round (markings facing out, direction of rotation if indicated).
3. Tighten the bolts in a criss-cross pattern to the manufacturer's torque, with medium-strength threadlocker.
4. Degrease the disc and ideally fit new pads.
5. Bed in with a dozen progressive stops.

Spare parts and items to plan

• Brake pads : AP RACING LMP271OR · AP RACING LMP391ORR
• Brake fluid : MOTUL 5 L · MOTUL 500 ml

Frequently asked questions

Should the pads be changed along with the disc?
It's strongly recommended: worn pads have taken on the shape of the old disc and won't brake well on a new one.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SHERCO 250 2013
SHERCO 300 2013
SHERCO SE 125 2024
SHERCO SE 125 2023
SHERCO SE 125 2022
SHERCO SE 125 2021
SHERCO SE 125 2020
SHERCO SE 125 2019
SHERCO SE 250 2024
SHERCO SE 250 2023
SHERCO SE 250 2022
SHERCO SE 250 2021
SHERCO SE 250 2020
SHERCO SE 250 2019
SHERCO SE 250 2018
SHERCO SE 250 2017
SHERCO SE 250 2016
SHERCO SE 250 2015
SHERCO SE 250 2014
SHERCO SE 250 2013
SHERCO SE 250 2012
SHERCO SE 300 2024
SHERCO SE 300 2023
SHERCO SE 300 2022
SHERCO SE 300 2021
SHERCO SE 300 2020
SHERCO SE 300 2019
SHERCO SE 300 2018
SHERCO SE 300 2017
SHERCO SE 300 2016
SHERCO SE 300 2015
SHERCO SE 300 2014
SHERCO SE 300 2013
SHERCO SE 300 2012
SHERCO SEF 250 2024
SHERCO SEF 250 2023
SHERCO SEF 250 2022
SHERCO SEF 250 2021
SHERCO SEF 250 2020
SHERCO SEF 250 2019
SHERCO SEF 250 2018
SHERCO SEF 250 2017
SHERCO SEF 250 2016
SHERCO SEF 250 2015
SHERCO SEF 250 2014
SHERCO SEF 250 2013
SHERCO SEF 250 2012
SHERCO SEF 300 2024
SHERCO SEF 300 2023
SHERCO SEF 300 2022
SHERCO SEF 300 2021
SHERCO SEF 300 2020
SHERCO SEF 300 2019
SHERCO SEF 300 2018
SHERCO SEF 300 2017
SHERCO SEF 300 2016
SHERCO SEF 300 2015
SHERCO SEF 300 2014
SHERCO SEF 300 2013
SHERCO SEF 300 2012
SHERCO SEF 450 2024
SHERCO SEF 450 2023
SHERCO SEF 450 2022
SHERCO SEF 450 2021
SHERCO SEF 450 2020
SHERCO SEF 450 2019
SHERCO SEF 450 2018
SHERCO SEF 450 2017
SHERCO SEF 450 2016
SHERCO SEF 450 2015
SHERCO SEF 450 2014
SHERCO SEF 500 2024
SHERCO SEF 500 2023
SHERCO SEF 500 2022
SHERCO SEF 500 2021
SHERCO SEF 500 2020
SHERCO SEF 500 2019
