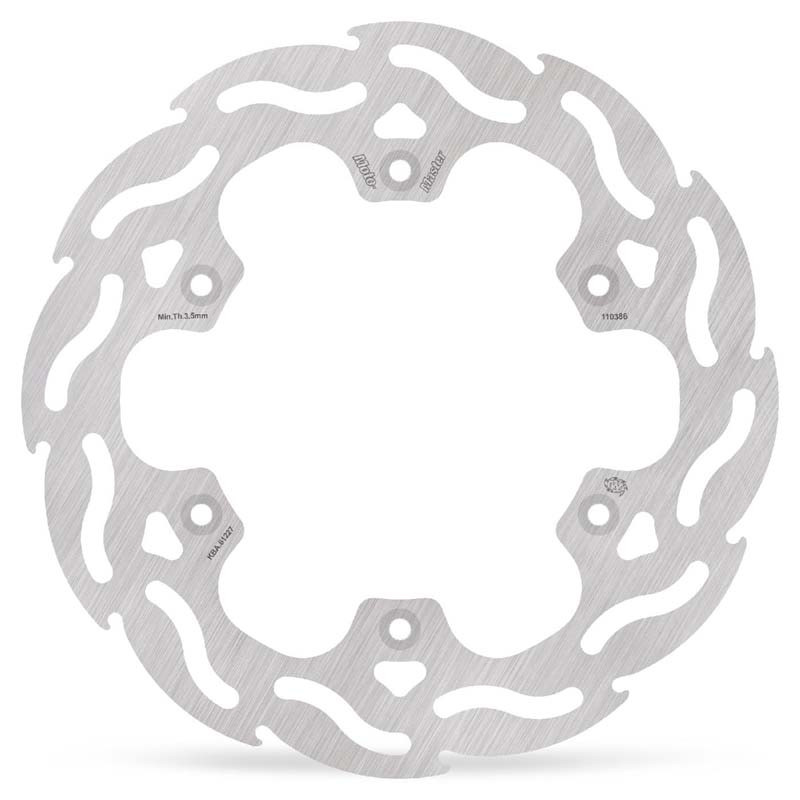

MOTO-MASTER Flame Rear Brake Disc for YAMAHA and TM RACING 1985-2004

The MOTO-MASTER 110386 brake disc is designed for YAMAHA DT 125, TTR 250, TTR 600, WR 125, WR 250, WRF 400, YZ 125, YZ 250, YZ 360, YZ 490, YZF 400 and TM RACING MX 125 from 1985 to 2004. The disc, bolted to the hub, is the surface the pads clamp onto. It has to stay flat and thick enough to get rid of the heat: a tired disc lengthens stopping distances and wears the pads.

Specifications

• Brand: MOTO-MASTER
• Manufacturer part number: 110386
• EAN code: 8790497003814
• Weight: 700 g

When to replace it?

• Thickness below the minimum stamped on the disc or given in the manual.
• Warped disc: vibration through the lever or pedal, brake that “pulses”.
• Deep scoring, cracks or blueing after overheating.

Measure the thickness with a micrometer every time you change the pads, and replace the disc as soon as it reaches the minimum thickness, or if it's warped or cracked.

Fitting tips

1. Clean the hub mounting face: a single grain of sand under the disc is enough to throw it out of true.
2. Fit the disc the right way round (markings facing out, direction of rotation if indicated).
3. Tighten the bolts in a criss-cross pattern to the manufacturer's torque, with medium-strength threadlocker.
4. Degrease the disc and ideally fit new pads.
5. Bed in with a dozen progressive stops.

Why MOTO-MASTER?

In motocross, Moto-Master was working with the Red Bull KTM Factory Racing team as early as 2010, and it backed the MXGP world championship in 2015. On the technical side, the Flame profile of its discs is designed to improve cooling and go easy on the pads, and its Racing GP sintered pads use a backing plate with hooks (NRS technology) that stops the friction material from coming away.

Spare parts and items to plan

• Brake pads : TECNIUM · AP RACING
• Brake fluid : MOTUL 500 ml · LIQUI MOLY 250 ml

Frequently asked questions

Should the pads be changed along with the disc?
It's strongly recommended: worn pads have taken on the shape of the old disc and won't brake well on a new one.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
TM RACING MX 125 1992
TM RACING MX 125 1991
TM RACING MX 125 1990
YAMAHA DT 125 2003
YAMAHA DT 125 2002
YAMAHA DT 125 2001
YAMAHA DT 125 2000
YAMAHA DT 125 1999
YAMAHA DT 125 1998
YAMAHA DT 125 1997
YAMAHA DT 125 1996
YAMAHA DT 125 1995
YAMAHA DT 125 1994
YAMAHA DT 125 1993
YAMAHA DT 125 1992
YAMAHA DT 125 1991
YAMAHA DT 125 1990
YAMAHA DT 125 1989
YAMAHA DT 125 1988
YAMAHA TTR 250 2003
YAMAHA TTR 250 2002
YAMAHA TTR 250 2001
YAMAHA TTR 250 2000
YAMAHA TTR 250 1999
YAMAHA TTR 250 1998
YAMAHA TTR 250 1997
YAMAHA TTR 250 1996
YAMAHA TTR 250 1995
YAMAHA TTR 250 1994
YAMAHA TTR 250 1993
YAMAHA TTR 600 2004
YAMAHA TTR 600 2003
YAMAHA TTR 600 2002
YAMAHA TTR 600 2001
YAMAHA TTR 600 2000
YAMAHA TTR 600 1999
YAMAHA TTR 600 1998
YAMAHA TTR 600 1997
YAMAHA TTR 600 1996
YAMAHA TTR 600 1995
YAMAHA TTR 600 1994
YAMAHA TTR 600 1993
YAMAHA WR 125 1997
YAMAHA WR 125 1996
YAMAHA WR 125 1995
YAMAHA WR 125 1994
YAMAHA WR 125 1993
YAMAHA WR 125 1992
YAMAHA WR 125 1991
YAMAHA WR 125 1990
YAMAHA WR 250 1997
YAMAHA WR 250 1996
YAMAHA WR 250 1995
YAMAHA WR 250 1994
YAMAHA WR 250 1993
YAMAHA WR 250 1992
YAMAHA WR 250 1991
YAMAHA WR 250 1990
YAMAHA WRF 400 1998
YAMAHA YZ 125 1997
YAMAHA YZ 125 1996
YAMAHA YZ 125 1995
YAMAHA YZ 125 1994
YAMAHA YZ 125 1993
YAMAHA YZ 125 1992
YAMAHA YZ 125 1991
YAMAHA YZ 125 1990
YAMAHA YZ 125 1989
YAMAHA YZ 125 1988
YAMAHA YZ 125 1987
YAMAHA YZ 125 1986
YAMAHA YZ 125 1985
YAMAHA YZ 250 1997
YAMAHA YZ 250 1996
YAMAHA YZ 250 1995
YAMAHA YZ 250 1994
YAMAHA YZ 250 1993
YAMAHA YZ 250 1992
YAMAHA YZ 250 1991
YAMAHA YZ 250 1990
YAMAHA YZ 250 1989
YAMAHA YZ 250 1988
YAMAHA YZ 250 1987
YAMAHA YZ 250 1986
YAMAHA YZ 250 1985
YAMAHA YZ 360 1993
YAMAHA YZ 360 1992
YAMAHA YZ 360 1991
YAMAHA YZ 360 1990
YAMAHA YZ 360 1989
YAMAHA YZ 490 1990
YAMAHA YZ 490 1989
YAMAHA YZ 490 1988
YAMAHA YZ 490 1987
YAMAHA YZF 400 1998
