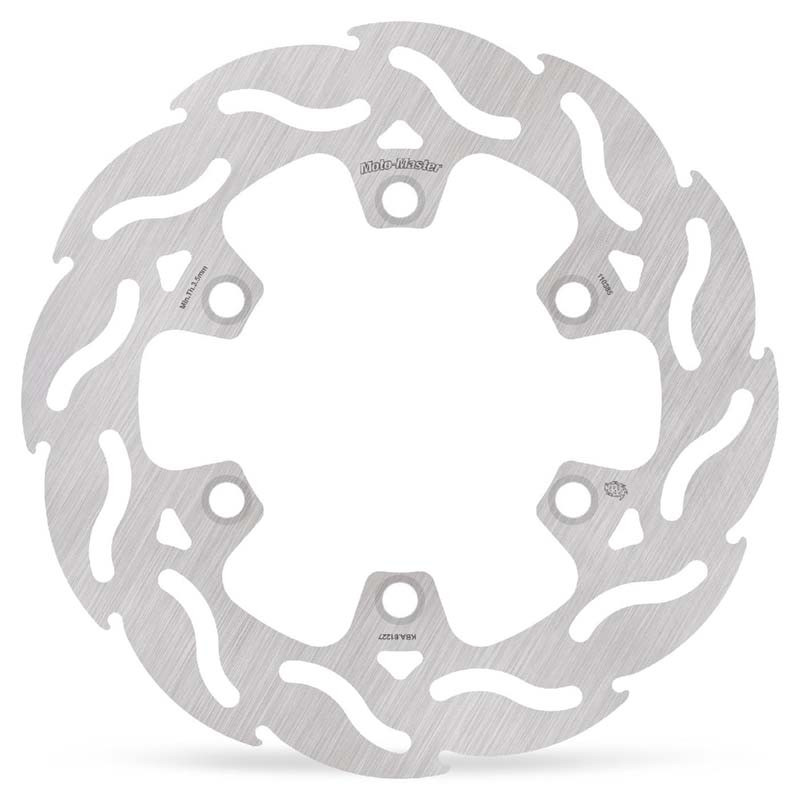

MOTO-MASTER Flame Rear Brake Disc for KAWASAKI KDX 125, KDX 200, KDX 250, KLX 300 1990-2007

On KAWASAKI KDX 125, KDX 200, KDX 250, KLX 300 from 1990 to 2007, the MOTO-MASTER 110385 brake disc fits in place of the original part. Gripped by the pads, the brake disc soaks up the heat of every stop. Its design (cut-outs, petal profile) helps clear mud and cool it down.

Specifications

• Brand: MOTO-MASTER
• Manufacturer part number: 110385
• EAN code: 8790497004859
• Weight: 630 g

When to replace it?

• Thickness below the minimum stamped on the disc or given in the manual.
• Warped disc: vibration through the lever or pedal, brake that “pulses”.
• Deep scoring, cracks or blueing after overheating.

Measure the thickness with a micrometer every time you change the pads, and replace the disc as soon as it reaches the minimum thickness, or if it's warped or cracked.

Fitting tips

1. Clean the hub mounting face: a single grain of sand under the disc is enough to throw it out of true.
2. Fit the disc the right way round (markings facing out, direction of rotation if indicated).
3. Tighten the bolts in a criss-cross pattern to the manufacturer's torque, with medium-strength threadlocker.
4. Degrease the disc and ideally fit new pads.
5. Bed in with a dozen progressive stops.

Why MOTO-MASTER?

Moto-Master is a Dutch brand founded in 1997 by Gaston Vernon that specialises in braking: discs, sintered pads and oversize kits. Its discs are designed in CAD and then laser-cut on CNC machines, with manufacturing in the Netherlands and ISO 9001:2015 certification.

Spare parts and items to plan

• Brake pads : MOTO-MASTER 091821 · MOTO-MASTER 092221
• Brake fluid : MOTUL 500 ml · MOTUL 5 L

Frequently asked questions

Should the pads be changed along with the disc?
It's strongly recommended: worn pads have taken on the shape of the old disc and won't brake well on a new one.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KDX 125 1999
KAWASAKI KDX 125 1998
KAWASAKI KDX 125 1997
KAWASAKI KDX 125 1996
KAWASAKI KDX 125 1995
KAWASAKI KDX 125 1994
KAWASAKI KDX 125 1993
KAWASAKI KDX 125 1992
KAWASAKI KDX 125 1991
KAWASAKI KDX 125 1990
KAWASAKI KDX 200 2006
KAWASAKI KDX 200 2005
KAWASAKI KDX 200 2004
KAWASAKI KDX 200 2003
KAWASAKI KDX 200 2002
KAWASAKI KDX 200 2001
KAWASAKI KDX 200 2000
KAWASAKI KDX 200 1999
KAWASAKI KDX 200 1998
KAWASAKI KDX 200 1997
KAWASAKI KDX 200 1996
KAWASAKI KDX 200 1995
KAWASAKI KDX 250 1998
KAWASAKI KDX 250 1997
KAWASAKI KDX 250 1996
KAWASAKI KDX 250 1995
KAWASAKI KDX 250 1994
KAWASAKI KDX 250 1993
KAWASAKI KDX 250 1992
KAWASAKI KDX 250 1991
KAWASAKI KLX 300 2007
KAWASAKI KLX 300 2006
KAWASAKI KLX 300 2005
KAWASAKI KLX 300 2004
KAWASAKI KLX 300 2003
KAWASAKI KLX 300 2002
KAWASAKI KLX 300 2001
KAWASAKI KLX 300 2000
KAWASAKI KLX 300 1999
KAWASAKI KLX 300 1998
KAWASAKI KLX 300 1997
KAWASAKI KLX 300 1996
