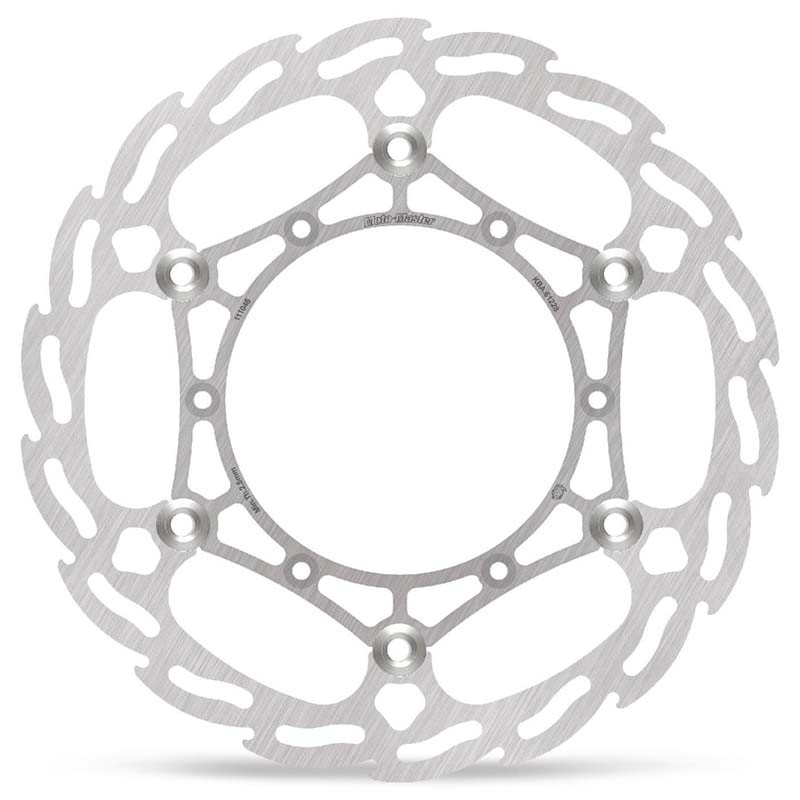

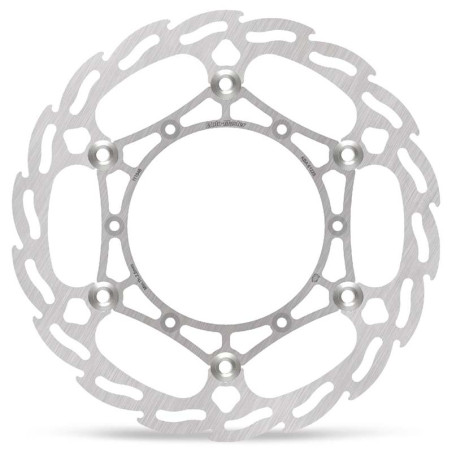

MOTO-MASTER Flame floating Front Brake Disc Ø260 mm for YAMAHA and FANTIC 2016-2026

The MOTO-MASTER Ø260 mm Flame flottant avant 111046 brake disc is designed for YAMAHA WRF 250, WRF 450, YZ 125, YZ 250, YZF 250, YZF 450 and FANTIC XE 125, XEF 250, XX 125, XX 250, XXF 250, XXF 450 from 2016 to 2026. The disc, bolted to the hub, is the surface the pads clamp onto. It has to stay flat and thick enough to get rid of the heat: a tired disc lengthens stopping distances and wears the pads.

Specifications

• Brand: MOTO-MASTER
• Manufacturer part number: 111046
• EAN code: 8790497000844
• Mounting: floating (braking ring on a carrier)
• Weight: 660 g

When to replace it?

• Thickness below the minimum stamped on the disc or given in the manual.
• Warped disc: vibration through the lever or pedal, brake that “pulses”.
• Deep scoring, cracks or blueing after overheating.

Measure the thickness with a micrometer every time you change the pads, and replace the disc as soon as it reaches the minimum thickness, or if it's warped or cracked.

Fitting tips

1. Clean the hub mounting face: a single grain of sand under the disc is enough to throw it out of true.
2. Fit the disc the right way round (markings facing out, direction of rotation if indicated).
3. Tighten the bolts in a criss-cross pattern to the manufacturer's torque, with medium-strength threadlocker.
4. Degrease the disc and ideally fit new pads.
5. Bed in with a dozen progressive stops.

Why MOTO-MASTER?

In motocross, Moto-Master was working with the Red Bull KTM Factory Racing team as early as 2010, and it backed the MXGP world championship in 2015. On the technical side, the Flame profile of its discs is designed to improve cooling and go easy on the pads, and its Racing GP sintered pads use a backing plate with hooks (NRS technology) that stops the friction material from coming away.

Spare parts and items to plan

• Brake pads : TECNIUM · AP RACING
• Brake fluid : MOTUL 1 L · LIQUI MOLY 500 ml

Frequently asked questions

Should the pads be changed along with the disc?
It's strongly recommended: worn pads have taken on the shape of the old disc and won't brake well on a new one.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
FANTIC XE 125 2026
FANTIC XE 125 2025
FANTIC XE 125 2024
FANTIC XE 125 2023
FANTIC XE 125 2022
FANTIC XE 125 2021
FANTIC XEF 250 2026
FANTIC XEF 250 2025
FANTIC XEF 250 2024
FANTIC XEF 250 2023
FANTIC XEF 250 2022
FANTIC XEF 250 2021
FANTIC XX 125 2026
FANTIC XX 125 2025
FANTIC XX 125 2024
FANTIC XX 125 2023
FANTIC XX 125 2022
FANTIC XX 125 2021
FANTIC XX 250 2026
FANTIC XX 250 2025
FANTIC XX 250 2024
FANTIC XX 250 2023
FANTIC XX 250 2022
FANTIC XXF 250 2026
FANTIC XXF 250 2025
FANTIC XXF 250 2024
FANTIC XXF 250 2023
FANTIC XXF 250 2022
FANTIC XXF 250 2021
FANTIC XXF 450 2026
FANTIC XXF 450 2025
FANTIC XXF 450 2024
FANTIC XXF 450 2023
FANTIC XXF 450 2022
YAMAHA WRF 250 2019
YAMAHA WRF 250 2018
YAMAHA WRF 250 2017
YAMAHA WRF 450 2018
YAMAHA WRF 450 2017
YAMAHA WRF 450 2016
YAMAHA YZ 125 2026
YAMAHA YZ 125 2025
YAMAHA YZ 125 2024
YAMAHA YZ 125 2023
YAMAHA YZ 125 2022
YAMAHA YZ 125 2021
YAMAHA YZ 125 2020
YAMAHA YZ 125 2019
YAMAHA YZ 125 2018
YAMAHA YZ 125 2017
YAMAHA YZ 250 2026
YAMAHA YZ 250 2025
YAMAHA YZ 250 2024
YAMAHA YZ 250 2023
YAMAHA YZ 250 2022
YAMAHA YZ 250 2021
YAMAHA YZ 250 2020
YAMAHA YZ 250 2019
YAMAHA YZ 250 2018
YAMAHA YZ 250 2017
YAMAHA YZF 250 2026
YAMAHA YZF 250 2025
YAMAHA YZF 250 2024
YAMAHA YZF 250 2023
YAMAHA YZF 250 2022
YAMAHA YZF 250 2021
YAMAHA YZF 250 2020
YAMAHA YZF 250 2019
YAMAHA YZF 250 2018
YAMAHA YZF 250 2017
YAMAHA YZF 250 2016
YAMAHA YZF 450 2026
YAMAHA YZF 450 2025
YAMAHA YZF 450 2024
YAMAHA YZF 450 2023
YAMAHA YZF 450 2022
YAMAHA YZF 450 2021
YAMAHA YZF 450 2020
YAMAHA YZF 450 2019
YAMAHA YZF 450 2018
YAMAHA YZF 450 2017
YAMAHA YZF 450 2016
