MOTO-MASTER Flame Rear Brake Disc for APRILIA MXV 450, RXV 450, RXV 550 2005-2012

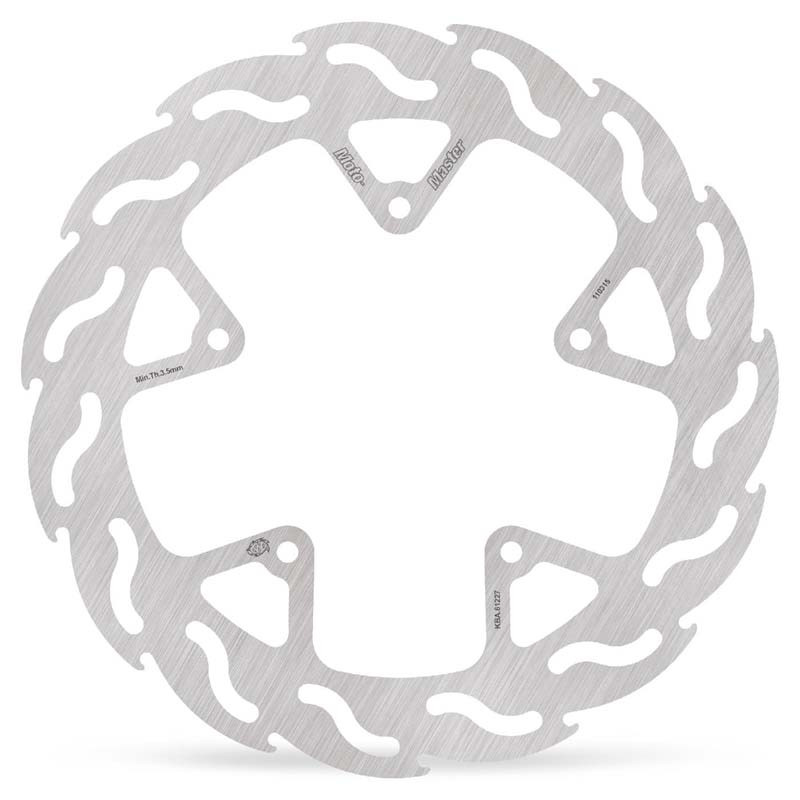

The MOTO-MASTER 110315 brake disc is designed for APRILIA MXV 450, RXV 450, RXV 550 from 2005 to 2012. The disc, bolted to the hub, is the surface the pads clamp onto. It has to stay flat and thick enough to get rid of the heat: a tired disc lengthens stopping distances and wears the pads.

Specifications

• Brand: MOTO-MASTER
• Manufacturer part number: 110315
• EAN code: 8790497004637
• Weight: 740 g
• Engine: 4-stroke

When to replace it?

• Thickness below the minimum stamped on the disc or given in the manual.
• Warped disc: vibration through the lever or pedal, brake that “pulses”.
• Deep scoring, cracks or blueing after overheating.

Measure the thickness with a micrometer every time you change the pads, and replace the disc as soon as it reaches the minimum thickness, or if it's warped or cracked.

Fitting tips

1. Clean the hub mounting face: a single grain of sand under the disc is enough to throw it out of true.
2. Fit the disc the right way round (markings facing out, direction of rotation if indicated).
3. Tighten the bolts in a criss-cross pattern to the manufacturer's torque, with medium-strength threadlocker.
4. Degrease the disc and ideally fit new pads.
5. Bed in with a dozen progressive stops.

Why MOTO-MASTER?

In motocross, Moto-Master was working with the Red Bull KTM Factory Racing team as early as 2010, and it backed the MXGP world championship in 2015. On the technical side, the Flame profile of its discs is designed to improve cooling and go easy on the pads, and its Racing GP sintered pads use a backing plate with hooks (NRS technology) that stops the friction material from coming away.

Spare parts and items to plan

• Brake pads : BILTWELL · NISSIN
• Brake fluid : MOTUL 500 ml · LIQUI MOLY 250 ml

Frequently asked questions

Should the pads be changed along with the disc?
It's strongly recommended: worn pads have taken on the shape of the old disc and won't brake well on a new one.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
APRILIA MXV 450 2012
APRILIA MXV 450 2011
APRILIA MXV 450 2010
APRILIA MXV 450 2009
APRILIA MXV 450 2008
APRILIA MXV 450 2007
APRILIA MXV 450 2006
APRILIA MXV 450 2005
APRILIA RXV 450 2012
APRILIA RXV 450 2011
APRILIA RXV 450 2010
APRILIA RXV 450 2009
APRILIA RXV 450 2008
APRILIA RXV 450 2007
APRILIA RXV 450 2006
APRILIA RXV 450 2005
APRILIA RXV 550 2012
APRILIA RXV 550 2011
APRILIA RXV 550 2010
APRILIA RXV 550 2009
APRILIA RXV 550 2008
APRILIA RXV 550 2007
APRILIA RXV 550 2006
APRILIA RXV 550 2005
