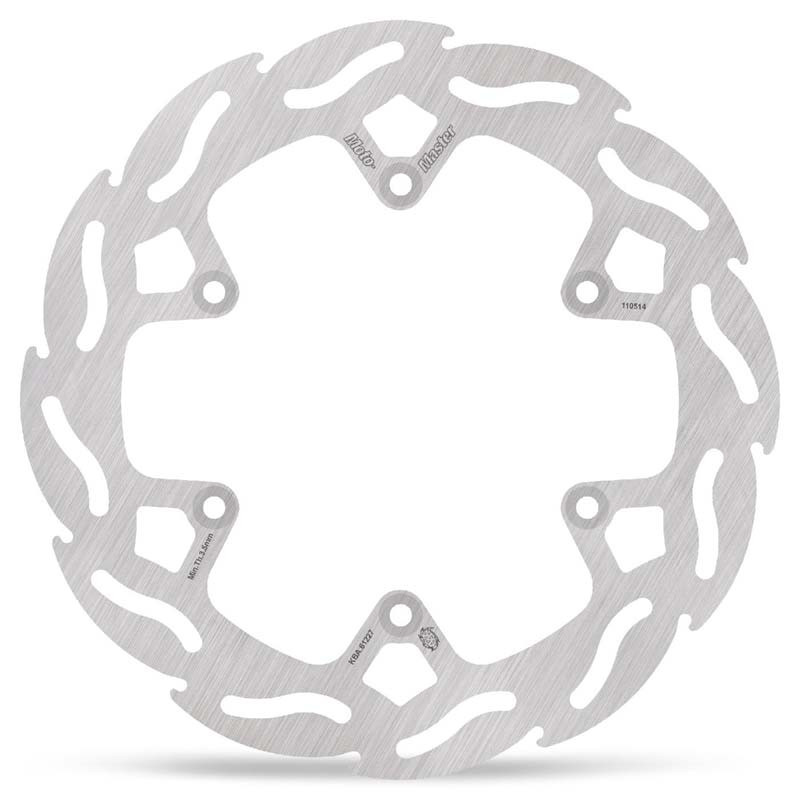

MOTO-MASTER Flame Rear Brake Disc for KTM EGS 400, EGS 620, LC4 400, LC4 620, LC4 625, LC4 640, SXC 625 1994-2007

The MOTO-MASTER 110514 brake disc is designed for KTM EGS 400, EGS 620, LC4 400, LC4 620, LC4 625, LC4 640, SXC 625 from 1994 to 2007. Gripped by the pads, the brake disc soaks up the heat of every stop. Its design (cut-outs, petal profile) helps clear mud and cool it down.

Specifications

• Brand: MOTO-MASTER
• Manufacturer part number: 110514
• EAN code: 8790497017125
• Weight: 620 g
• Engine: 4-stroke

When to replace it?

• Thickness below the minimum stamped on the disc or given in the manual.
• Warped disc: vibration through the lever or pedal, brake that “pulses”.
• Deep scoring, cracks or blueing after overheating.

Measure the thickness with a micrometer every time you change the pads, and replace the disc as soon as it reaches the minimum thickness, or if it's warped or cracked.

Fitting tips

1. Clean the hub mounting face: a single grain of sand under the disc is enough to throw it out of true.
2. Fit the disc the right way round (markings facing out, direction of rotation if indicated).
3. Tighten the bolts in a criss-cross pattern to the manufacturer's torque, with medium-strength threadlocker.
4. Degrease the disc and ideally fit new pads.
5. Bed in with a dozen progressive stops.

Why MOTO-MASTER?

Moto-Master is a Dutch brand founded in 1997 by Gaston Vernon that specialises in braking: discs, sintered pads and oversize kits. Its discs are designed in CAD and then laser-cut on CNC machines, with manufacturing in the Netherlands and ISO 9001:2015 certification.

Spare parts and items to plan

• Brake pads : AP RACING LMP271OR · AP RACING LMP271ORR
• Brake fluid : MOTUL 1 L · LIQUI MOLY 500 ml

Frequently asked questions

Should the pads be changed along with the disc?
It's strongly recommended: worn pads have taken on the shape of the old disc and won't brake well on a new one.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KTM EGS 400 2002
KTM EGS 400 2001
KTM EGS 400 2000
KTM EGS 400 1999
KTM EGS 400 1998
KTM EGS 400 1997
KTM EGS 400 1996
KTM EGS 620 2002
KTM EGS 620 2001
KTM EGS 620 2000
KTM EGS 620 1999
KTM EGS 620 1998
KTM EGS 620 1997
KTM EGS 620 1996
KTM LC4 400 2000
KTM LC4 400 1999
KTM LC4 400 1998
KTM LC4 400 1997
KTM LC4 400 1996
KTM LC4 400 1995
KTM LC4 400 1994
KTM LC4 620 2000
KTM LC4 620 1999
KTM LC4 620 1998
KTM LC4 620 1997
KTM LC4 625 2004
KTM LC4 625 2003
KTM LC4 625 2002
KTM LC4 625 2001
KTM LC4 640 2007
KTM LC4 640 2006
KTM LC4 640 2005
KTM LC4 640 2004
KTM LC4 640 2003
KTM LC4 640 2002
KTM LC4 640 2001
KTM LC4 640 2000
KTM LC4 640 1999
KTM LC4 640 1998
KTM SXC 625 2007
KTM SXC 625 2006
KTM SXC 625 2005
KTM SXC 625 2004
KTM SXC 625 2003
