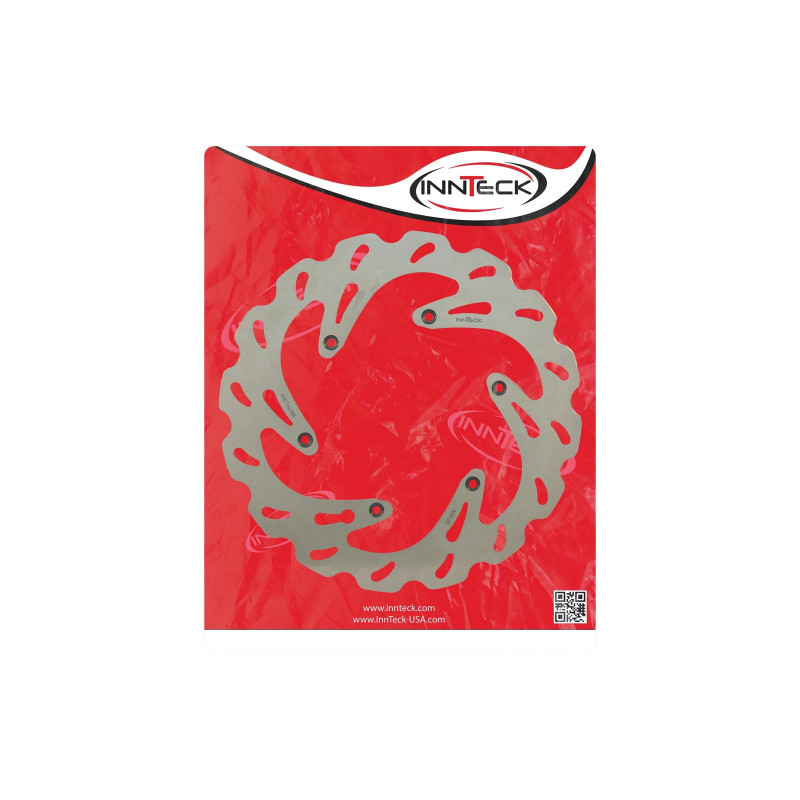

T-BRAKE fixed Rear Brake Disc for SUZUKI RM 85 2002-2022

The T-BRAKE AX36-246 brake disc is designed for SUZUKI RM 85 from 2002 to 2022. The disc, bolted to the hub, is the surface the pads clamp onto. It has to stay flat and thick enough to get rid of the heat: a tired disc lengthens stopping distances and wears the pads.

Specifications

• Brand: T-BRAKE
• Manufacturer part number: AX36-246
• EAN code: 8050040141272
• Engine: 2-stroke

When to replace it?

• Thickness below the minimum stamped on the disc or given in the manual.
• Warped disc: vibration through the lever or pedal, brake that “pulses”.
• Deep scoring, cracks or blueing after overheating.

Measure the thickness with a micrometer every time you change the pads, and replace the disc as soon as it reaches the minimum thickness, or if it's warped or cracked.

Fitting tips

1. Clean the hub mounting face: a single grain of sand under the disc is enough to throw it out of true.
2. Fit the disc the right way round (markings facing out, direction of rotation if indicated).
3. Tighten the bolts in a criss-cross pattern to the manufacturer's torque, with medium-strength threadlocker.
4. Degrease the disc and ideally fit new pads.
5. Bed in with a dozen progressive stops.

Spare parts and items to plan

• Brake pads : MOTO-MASTER 093921 · MOTO-MASTER 094811
• Brake fluid : MOTUL 500 ml · MOTUL 5 L

Frequently asked questions

Should the pads be changed along with the disc?
It's strongly recommended: worn pads have taken on the shape of the old disc and won't brake well on a new one.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI RM 85 2022
SUZUKI RM 85 2021
SUZUKI RM 85 2020
SUZUKI RM 85 2019
SUZUKI RM 85 2018
SUZUKI RM 85 2017
SUZUKI RM 85 2016
SUZUKI RM 85 2015
SUZUKI RM 85 2014
SUZUKI RM 85 2013
SUZUKI RM 85 2012
SUZUKI RM 85 2011
SUZUKI RM 85 2010
SUZUKI RM 85 2009
SUZUKI RM 85 2008
SUZUKI RM 85 2007
SUZUKI RM 85 2006
SUZUKI RM 85 2005
SUZUKI RM 85 2004
SUZUKI RM 85 2003
SUZUKI RM 85 2002
