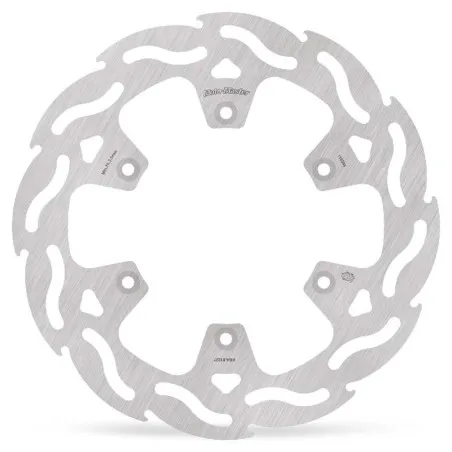

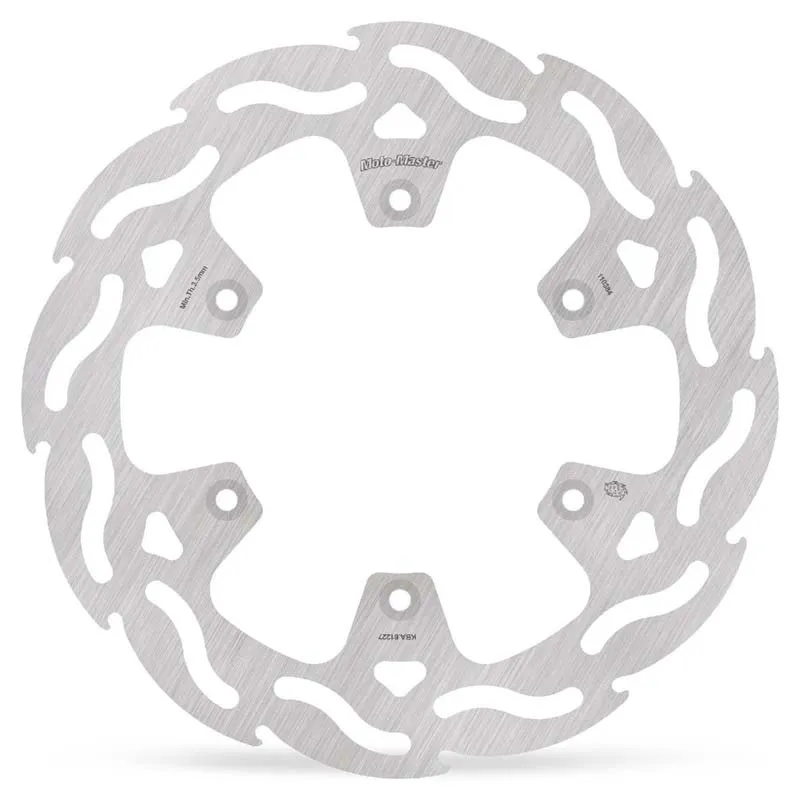

MOTO-MASTER Flame Rear Brake Disc for KAWASAKI KDX 200, KX 125, KX 250, KX 500 1989-2004

The MOTO-MASTER 110384 brake disc is designed for KAWASAKI KDX 200, KX 125, KX 250, KX 500 from 1989 to 2004. The disc, bolted to the hub, is the surface the pads clamp onto. It has to stay flat and thick enough to get rid of the heat: a tired disc lengthens stopping distances and wears the pads.

Specifications

• Brand: MOTO-MASTER
• Manufacturer part number: 110384
• EAN code: 8790497004842
• Weight: 610 g
• Engine: 2-stroke

When to replace it?

• Thickness below the minimum stamped on the disc or given in the manual.
• Warped disc: vibration through the lever or pedal, brake that “pulses”.
• Deep scoring, cracks or blueing after overheating.

Measure the thickness with a micrometer every time you change the pads, and replace the disc as soon as it reaches the minimum thickness, or if it's warped or cracked.

Fitting tips

1. Clean the hub mounting face: a single grain of sand under the disc is enough to throw it out of true.
2. Fit the disc the right way round (markings facing out, direction of rotation if indicated).
3. Tighten the bolts in a criss-cross pattern to the manufacturer's torque, with medium-strength threadlocker.
4. Degrease the disc and ideally fit new pads.
5. Bed in with a dozen progressive stops.

Why MOTO-MASTER?

In motocross, Moto-Master was working with the Red Bull KTM Factory Racing team as early as 2010, and it backed the MXGP world championship in 2015. On the technical side, the Flame profile of its discs is designed to improve cooling and go easy on the pads, and its Racing GP sintered pads use a backing plate with hooks (NRS technology) that stops the friction material from coming away.

Spare parts and items to plan

• Brake pads : NISSIN · BILTWELL
• Brake fluid : MOTUL 500 ml · MOTUL 5 L

Frequently asked questions

Should the pads be changed along with the disc?
It's strongly recommended: worn pads have taken on the shape of the old disc and won't brake well on a new one.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KDX 200 1994
KAWASAKI KDX 200 1993
KAWASAKI KDX 200 1992
KAWASAKI KDX 200 1991
KAWASAKI KDX 200 1990
KAWASAKI KDX 200 1989
KAWASAKI KX 125 2002
KAWASAKI KX 125 2001
KAWASAKI KX 125 2000
KAWASAKI KX 125 1999
KAWASAKI KX 125 1998
KAWASAKI KX 125 1997
KAWASAKI KX 125 1996
KAWASAKI KX 125 1995
KAWASAKI KX 125 1994
KAWASAKI KX 125 1993
KAWASAKI KX 125 1992
KAWASAKI KX 125 1991
KAWASAKI KX 125 1990
KAWASAKI KX 125 1989
KAWASAKI KX 250 2002
KAWASAKI KX 250 2001
KAWASAKI KX 250 2000
KAWASAKI KX 250 1999
KAWASAKI KX 250 1998
KAWASAKI KX 250 1997
KAWASAKI KX 250 1996
KAWASAKI KX 250 1995
KAWASAKI KX 250 1994
KAWASAKI KX 250 1993
KAWASAKI KX 250 1992
KAWASAKI KX 250 1991
KAWASAKI KX 250 1990
KAWASAKI KX 250 1989
KAWASAKI KX 500 2004
KAWASAKI KX 500 2003
KAWASAKI KX 500 2002
KAWASAKI KX 500 2001
KAWASAKI KX 500 2000
KAWASAKI KX 500 1999
KAWASAKI KX 500 1998
KAWASAKI KX 500 1997
KAWASAKI KX 500 1996
KAWASAKI KX 500 1995
KAWASAKI KX 500 1994
KAWASAKI KX 500 1993
KAWASAKI KX 500 1992
KAWASAKI KX 500 1991
KAWASAKI KX 500 1990
KAWASAKI KX 500 1989
