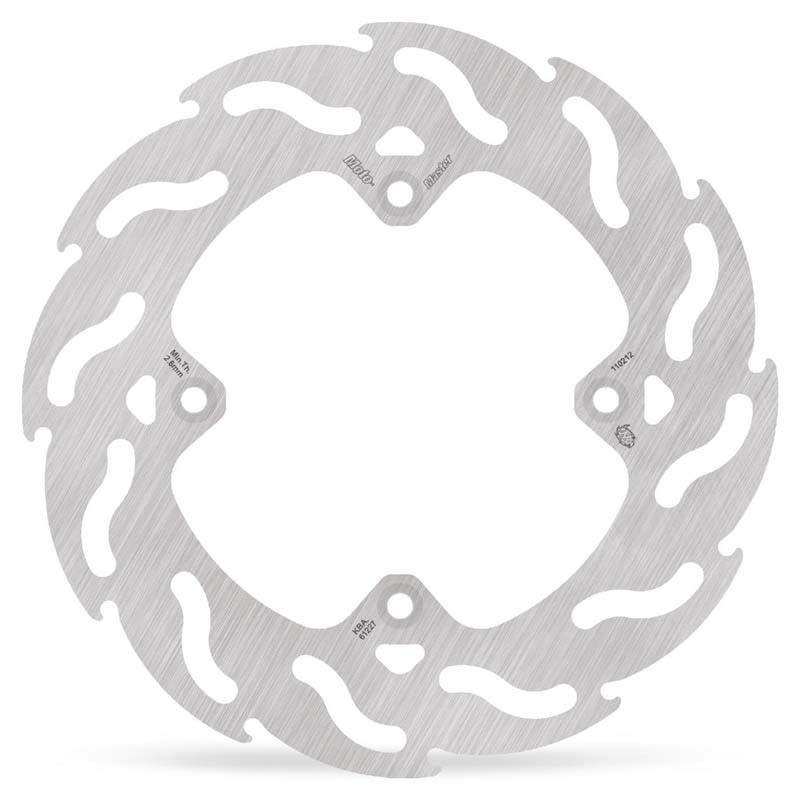

MOTO-MASTER Flame Rear Brake Disc for KAWASAKI KX 80, KX 100 and SUZUKI RM 80, RM 85 1988-2004

The MOTO-MASTER 110212 brake disc is designed for KAWASAKI KX 80, KX 100 and SUZUKI RM 80, RM 85 from 1988 to 2004. The disc, bolted to the hub, is the surface the pads clamp onto. It has to stay flat and thick enough to get rid of the heat: a tired disc lengthens stopping distances and wears the pads.

Specifications

• Brand: MOTO-MASTER
• Manufacturer part number: 110212
• EAN code: 8790497006907
• Weight: 340 g
• Engine: 2-stroke

When to replace it?

• Thickness below the minimum stamped on the disc or given in the manual.
• Warped disc: vibration through the lever or pedal, brake that “pulses”.
• Deep scoring, cracks or blueing after overheating.

Measure the thickness with a micrometer every time you change the pads, and replace the disc as soon as it reaches the minimum thickness, or if it's warped or cracked.

Fitting tips

1. Clean the hub mounting face: a single grain of sand under the disc is enough to throw it out of true.
2. Fit the disc the right way round (markings facing out, direction of rotation if indicated).
3. Tighten the bolts in a criss-cross pattern to the manufacturer's torque, with medium-strength threadlocker.
4. Degrease the disc and ideally fit new pads.
5. Bed in with a dozen progressive stops.

Why MOTO-MASTER?

In motocross, Moto-Master was working with the Red Bull KTM Factory Racing team as early as 2010, and it backed the MXGP world championship in 2015. On the technical side, the Flame profile of its discs is designed to improve cooling and go easy on the pads, and its Racing GP sintered pads use a backing plate with hooks (NRS technology) that stops the friction material from coming away.

Spare parts and items to plan

• Brake pads : TECNIUM 85 L · T-BRAKE
• Brake fluid : MOTUL 1 L · LIQUI MOLY 500 ml

Frequently asked questions

Should the pads be changed along with the disc?
It's strongly recommended: worn pads have taken on the shape of the old disc and won't brake well on a new one.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 80 2000
KAWASAKI KX 80 1999
KAWASAKI KX 80 1998
KAWASAKI KX 80 1997
KAWASAKI KX 80 1996
KAWASAKI KX 80 1995
KAWASAKI KX 80 1994
KAWASAKI KX 80 1993
KAWASAKI KX 80 1992
KAWASAKI KX 80 1991
KAWASAKI KX 80 1990
KAWASAKI KX 80 1989
KAWASAKI KX 80 1988
KAWASAKI KX 100 2000
KAWASAKI KX 100 1999
KAWASAKI KX 100 1998
KAWASAKI KX 100 1997
KAWASAKI KX 100 1996
KAWASAKI KX 100 1995
KAWASAKI KX 100 1994
KAWASAKI KX 100 1993
KAWASAKI KX 100 1992
KAWASAKI KX 100 1991
KAWASAKI KX 100 1990
KAWASAKI KX 100 1989
KAWASAKI KX 100 1988
SUZUKI RM 80 2001
SUZUKI RM 80 2000
SUZUKI RM 80 1999
SUZUKI RM 80 1998
SUZUKI RM 80 1997
SUZUKI RM 80 1996
SUZUKI RM 80 1995
SUZUKI RM 80 1994
SUZUKI RM 80 1993
SUZUKI RM 80 1992
SUZUKI RM 80 1991
SUZUKI RM 80 1990
SUZUKI RM 85 2004
SUZUKI RM 85 2003
SUZUKI RM 85 2002
