MOTO-MASTER Flame Front Brake Disc for HONDA CR, CRF, NX, XL, XR 125, 230, 250, 350, 400, 500, 600, 650 1983-2026

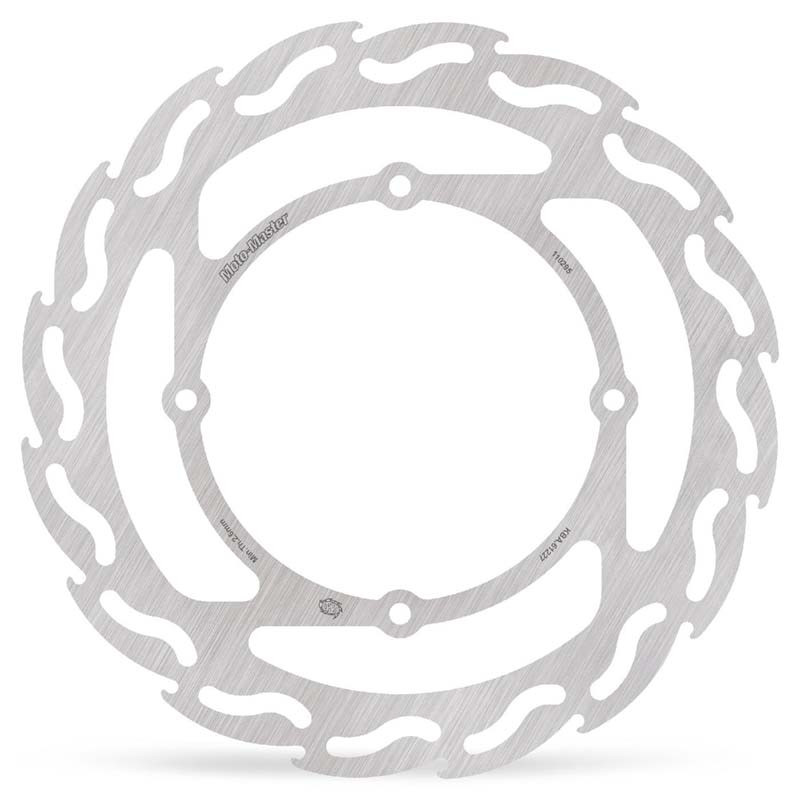

The MOTO-MASTER Flame avant 110295 brake disc is designed for HONDA CR 125, CR 250, CR 500, CRF 230, NX 250, XL 250, XL 350, XR 250, XR 350, XR 400, XR 500, XR 600, XR 650 from 1983 to 2026. Gripped by the pads, the brake disc soaks up the heat of every stop. Its design (cut-outs, petal profile) helps clear mud and cool it down.

Specifications

• Brand: MOTO-MASTER
• Manufacturer part number: 110295
• EAN code: 8790497002831
• Weight: 560 g

When to replace it?

• Thickness below the minimum stamped on the disc or given in the manual.
• Warped disc: vibration through the lever or pedal, brake that “pulses”.
• Deep scoring, cracks or blueing after overheating.

Measure the thickness with a micrometer every time you change the pads, and replace the disc as soon as it reaches the minimum thickness, or if it's warped or cracked.

Fitting tips

1. Clean the hub mounting face: a single grain of sand under the disc is enough to throw it out of true.
2. Fit the disc the right way round (markings facing out, direction of rotation if indicated).
3. Tighten the bolts in a criss-cross pattern to the manufacturer's torque, with medium-strength threadlocker.
4. Degrease the disc and ideally fit new pads.
5. Bed in with a dozen progressive stops.

Why MOTO-MASTER?

Moto-Master is a Dutch brand founded in 1997 by Gaston Vernon that specialises in braking: discs, sintered pads and oversize kits. Its discs are designed in CAD and then laser-cut on CNC machines, with manufacturing in the Netherlands and ISO 9001:2015 certification.

Spare parts and items to plan

• Brake pads : BREMBO · NISSIN
• Brake fluid : MOTUL 500 ml · LIQUI MOLY 250 ml

Frequently asked questions

Should the pads be changed along with the disc?
It's strongly recommended: worn pads have taken on the shape of the old disc and won't brake well on a new one.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CR 125 1994
HONDA CR 125 1993
HONDA CR 125 1992
HONDA CR 250 1994
HONDA CR 250 1993
HONDA CR 250 1992
HONDA CR 500 1994
HONDA CR 500 1993
HONDA CR 500 1992
HONDA CRF 230 2009
HONDA CRF 230 2008
HONDA CRF 230 2007
HONDA CRF 230 2006
HONDA CRF 230 2005
HONDA CRF 230 2004
HONDA NX 250 1993
HONDA NX 250 1992
HONDA NX 250 1991
HONDA NX 250 1990
HONDA XL 250 1993
HONDA XL 250 1992
HONDA XL 250 1991
HONDA XL 250 1990
HONDA XL 250 1989
HONDA XL 250 1988
HONDA XL 250 1987
HONDA XL 250 1986
HONDA XL 250 1985
HONDA XL 250 1984
HONDA XL 350 1990
HONDA XL 350 1989
HONDA XL 350 1988
HONDA XL 350 1987
HONDA XL 350 1986
HONDA XL 350 1985
HONDA XL 350 1984
HONDA XR 250 2004
HONDA XR 250 2003
HONDA XR 250 2002
HONDA XR 250 2001
HONDA XR 250 2000
HONDA XR 250 1999
HONDA XR 250 1998
HONDA XR 250 1997
HONDA XR 250 1996
HONDA XR 250 1995
HONDA XR 250 1994
HONDA XR 250 1993
HONDA XR 250 1992
HONDA XR 250 1991
HONDA XR 250 1985
HONDA XR 250 1984
HONDA XR 350 1987
HONDA XR 350 1986
HONDA XR 350 1985
HONDA XR 400 2004
HONDA XR 400 2003
HONDA XR 400 2002
HONDA XR 400 2001
HONDA XR 400 2000
HONDA XR 400 1999
HONDA XR 400 1998
HONDA XR 400 1997
HONDA XR 400 1996
HONDA XR 500 1986
HONDA XR 500 1985
HONDA XR 500 1984
HONDA XR 500 1983
HONDA XR 600 2000
HONDA XR 600 1999
HONDA XR 600 1998
HONDA XR 600 1997
HONDA XR 600 1996
HONDA XR 600 1995
HONDA XR 600 1994
HONDA XR 600 1993
HONDA XR 600 1992
HONDA XR 600 1991
HONDA XR 600 1987
HONDA XR 650 2026
HONDA XR 650 2025
HONDA XR 650 2024
HONDA XR 650 2023
HONDA XR 650 2022
HONDA XR 650 2021
HONDA XR 650 2020
HONDA XR 650 2019
HONDA XR 650 2018
HONDA XR 650 2017
HONDA XR 650 2016
HONDA XR 650 2015
HONDA XR 650 2014
HONDA XR 650 2013
HONDA XR 650 2012
HONDA XR 650 2011
HONDA XR 650 2010
HONDA XR 650 2009
HONDA XR 650 2008
HONDA XR 650 2007
HONDA XR 650 2006
HONDA XR 650 2005
HONDA XR 650 2004
HONDA XR 650 2003
HONDA XR 650 2002
HONDA XR 650 2001
HONDA XR 650 2000
