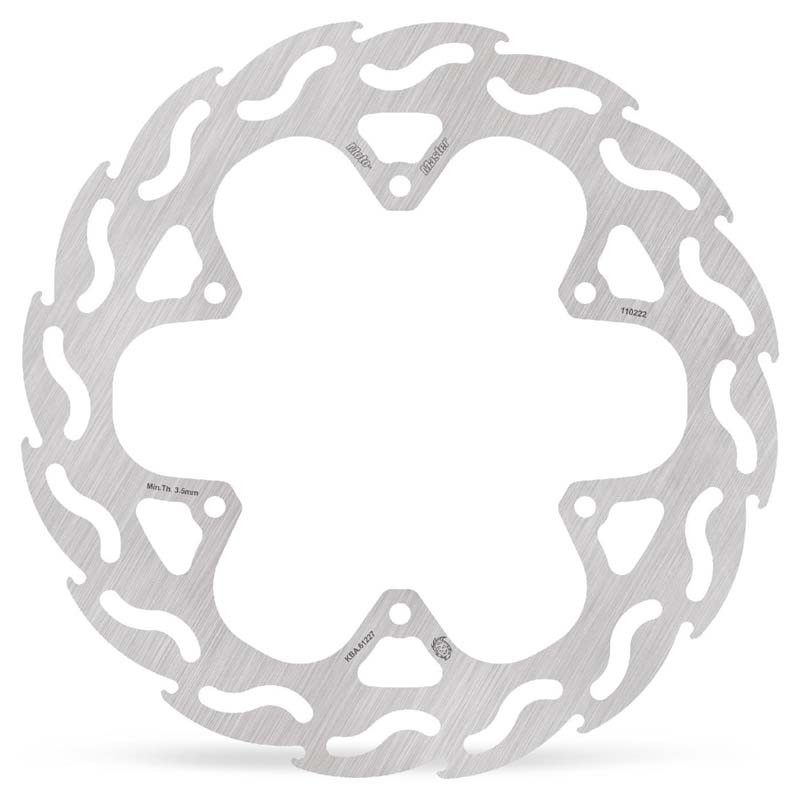

MOTO-MASTER Flame Rear Brake Disc for SUZUKI RM 125, RM 250 1999-2005

On SUZUKI RM 125, RM 250 from 1999 to 2005, the MOTO-MASTER 110222 brake disc fits in place of the original part. Gripped by the pads, the brake disc soaks up the heat of every stop. Its design (cut-outs, petal profile) helps clear mud and cool it down.

Specifications

• Brand: MOTO-MASTER
• Manufacturer part number: 110222
• EAN code: 8790497002732
• Weight: 710 g
• Engine: 2-stroke

When to replace it?

• Thickness below the minimum stamped on the disc or given in the manual.
• Warped disc: vibration through the lever or pedal, brake that “pulses”.
• Deep scoring, cracks or blueing after overheating.

Measure the thickness with a micrometer every time you change the pads, and replace the disc as soon as it reaches the minimum thickness, or if it's warped or cracked.

Fitting tips

1. Clean the hub mounting face: a single grain of sand under the disc is enough to throw it out of true.
2. Fit the disc the right way round (markings facing out, direction of rotation if indicated).
3. Tighten the bolts in a criss-cross pattern to the manufacturer's torque, with medium-strength threadlocker.
4. Degrease the disc and ideally fit new pads.
5. Bed in with a dozen progressive stops.

Why MOTO-MASTER?

Moto-Master is a Dutch brand founded in 1997 by Gaston Vernon that specialises in braking: discs, sintered pads and oversize kits. Its discs are designed in CAD and then laser-cut on CNC machines, with manufacturing in the Netherlands and ISO 9001:2015 certification.

Spare parts and items to plan

• Brake pads : BILTWELL · CL BRAKES
• Brake fluid : MOTUL 500 ml · MOTUL 5 L

Frequently asked questions

Should the pads be changed along with the disc?
It's strongly recommended: worn pads have taken on the shape of the old disc and won't brake well on a new one.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI RM 125 2005
SUZUKI RM 125 2004
SUZUKI RM 125 2003
SUZUKI RM 125 2002
SUZUKI RM 125 2001
SUZUKI RM 125 2000
SUZUKI RM 125 1999
SUZUKI RM 250 2005
SUZUKI RM 250 2004
SUZUKI RM 250 2003
SUZUKI RM 250 2002
SUZUKI RM 250 2001
SUZUKI RM 250 2000
SUZUKI RM 250 1999
