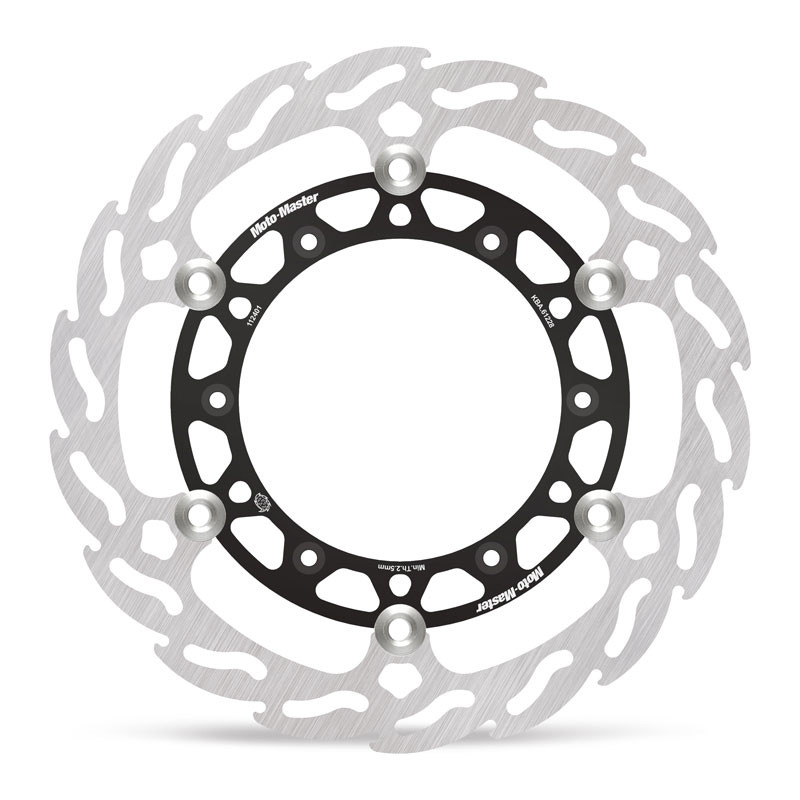

MOTO-MASTER Flame floating Front Brake Disc Ø260 mm MX version for YAMAHA, SUZUKI, FANTIC and KAWASAKI 1996-2026

The MOTO-MASTER Ø260 mm Flame flottant avant 112401 brake disc is designed for YAMAHA WR 125, WR 200, WR 250, WRF 250, WRF 400, WRF 426, WRF 450, YZ 125, YZ 250, YZF 250, YZF 400, YZF 426, YZF 450, SUZUKI DRZ 250, DRZ 400, RM 125, RM 250, FANTIC XX 250, XXF 250 and KAWASAKI KLX 400 from 1996 to 2026. The disc, bolted to the hub, is the surface the pads clamp onto. It has to stay flat and thick enough to get rid of the heat: a tired disc lengthens stopping distances and wears the pads.

Specifications

• Brand: MOTO-MASTER
• Manufacturer part number: 112401
• EAN code: 8790497282196
• Mounting: floating (braking ring on a carrier)
• Weight: 510 g

When to replace it?

• Thickness below the minimum stamped on the disc or given in the manual.
• Warped disc: vibration through the lever or pedal, brake that “pulses”.
• Deep scoring, cracks or blueing after overheating.

Measure the thickness with a micrometer every time you change the pads, and replace the disc as soon as it reaches the minimum thickness, or if it's warped or cracked.

Fitting tips

1. Clean the hub mounting face: a single grain of sand under the disc is enough to throw it out of true.
2. Fit the disc the right way round (markings facing out, direction of rotation if indicated).
3. Tighten the bolts in a criss-cross pattern to the manufacturer's torque, with medium-strength threadlocker.
4. Degrease the disc and ideally fit new pads.
5. Bed in with a dozen progressive stops.

Why MOTO-MASTER?

In motocross, Moto-Master was working with the Red Bull KTM Factory Racing team as early as 2010, and it backed the MXGP world championship in 2015. On the technical side, the Flame profile of its discs is designed to improve cooling and go easy on the pads, and its Racing GP sintered pads use a backing plate with hooks (NRS technology) that stops the friction material from coming away.

Spare parts and items to plan

• Brake pads : BILTWELL · CL BRAKES
• Brake fluid : MOTUL 5 L · MOTUL 500 ml

Frequently asked questions

Should the pads be changed along with the disc?
It's strongly recommended: worn pads have taken on the shape of the old disc and won't brake well on a new one.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
FANTIC XX 250 2026
FANTIC XX 250 2025
FANTIC XX 250 2024
FANTIC XX 250 2023
FANTIC XX 250 2022
FANTIC XXF 250 2026
FANTIC XXF 250 2025
FANTIC XXF 250 2024
FANTIC XXF 250 2023
FANTIC XXF 250 2022
KAWASAKI KLX 400 2006
KAWASAKI KLX 400 2005
KAWASAKI KLX 400 2004
KAWASAKI KLX 400 2003
SUZUKI DRZ 250 2007
SUZUKI DRZ 250 2006
SUZUKI DRZ 250 2005
SUZUKI DRZ 250 2004
SUZUKI DRZ 250 2003
SUZUKI DRZ 250 2002
SUZUKI DRZ 250 2001
SUZUKI DRZ 400 2026
SUZUKI DRZ 400 2025
SUZUKI DRZ 400 2024
SUZUKI DRZ 400 2023
SUZUKI DRZ 400 2022
SUZUKI DRZ 400 2021
SUZUKI DRZ 400 2020
SUZUKI DRZ 400 2019
SUZUKI DRZ 400 2018
SUZUKI DRZ 400 2017
SUZUKI DRZ 400 2016
SUZUKI DRZ 400 2015
SUZUKI DRZ 400 2014
SUZUKI DRZ 400 2013
SUZUKI DRZ 400 2012
SUZUKI DRZ 400 2011
SUZUKI DRZ 400 2010
SUZUKI DRZ 400 2009
SUZUKI DRZ 400 2008
SUZUKI DRZ 400 2007
SUZUKI DRZ 400 2006
SUZUKI DRZ 400 2005
SUZUKI DRZ 400 2004
SUZUKI DRZ 400 2003
SUZUKI DRZ 400 2002
SUZUKI DRZ 400 2001
SUZUKI DRZ 400 2000
SUZUKI RM 125 2010
SUZUKI RM 125 2009
SUZUKI RM 125 2008
SUZUKI RM 125 2007
SUZUKI RM 125 2006
SUZUKI RM 125 2005
SUZUKI RM 125 2004
SUZUKI RM 125 2003
SUZUKI RM 125 2002
SUZUKI RM 125 2001
SUZUKI RM 125 2000
SUZUKI RM 125 1999
SUZUKI RM 125 1998
SUZUKI RM 125 1997
SUZUKI RM 125 1996
SUZUKI RM 250 2010
SUZUKI RM 250 2009
SUZUKI RM 250 2008
SUZUKI RM 250 2007
SUZUKI RM 250 2006
SUZUKI RM 250 2005
SUZUKI RM 250 2004
SUZUKI RM 250 2003
SUZUKI RM 250 2002
SUZUKI RM 250 2001
SUZUKI RM 250 2000
SUZUKI RM 250 1999
SUZUKI RM 250 1998
SUZUKI RM 250 1997
SUZUKI RM 250 1996
YAMAHA WR 125 2007
YAMAHA WR 125 2006
YAMAHA WR 125 2005
YAMAHA WR 125 2004
YAMAHA WR 125 2003
YAMAHA WR 125 2002
YAMAHA WR 125 2001
YAMAHA WR 125 2000
YAMAHA WR 125 1999
YAMAHA WR 125 1998
YAMAHA WR 200 2000
YAMAHA WR 200 1999
YAMAHA WR 200 1998
YAMAHA WR 250 2007
YAMAHA WR 250 2006
YAMAHA WR 250 2005
YAMAHA WR 250 2004
YAMAHA WR 250 2003
YAMAHA WR 250 2002
YAMAHA WR 250 2001
YAMAHA WR 250 2000
YAMAHA WR 250 1999
YAMAHA WR 250 1998
YAMAHA WRF 250 2016
YAMAHA WRF 250 2015
YAMAHA WRF 250 2014
YAMAHA WRF 250 2013
YAMAHA WRF 250 2012
YAMAHA WRF 250 2011
YAMAHA WRF 250 2010
YAMAHA WRF 250 2009
YAMAHA WRF 250 2008
YAMAHA WRF 250 2007
YAMAHA WRF 250 2006
YAMAHA WRF 250 2005
YAMAHA WRF 250 2004
YAMAHA WRF 250 2003
YAMAHA WRF 250 2002
YAMAHA WRF 250 2001
YAMAHA WRF 400 2000
YAMAHA WRF 400 1999
YAMAHA WRF 400 1998
YAMAHA WRF 426 2002
YAMAHA WRF 426 2001
YAMAHA WRF 450 2015
YAMAHA WRF 450 2014
YAMAHA WRF 450 2013
YAMAHA WRF 450 2012
YAMAHA WRF 450 2011
YAMAHA WRF 450 2010
YAMAHA WRF 450 2009
YAMAHA WRF 450 2008
YAMAHA WRF 450 2007
YAMAHA WRF 450 2006
YAMAHA WRF 450 2005
YAMAHA WRF 450 2004
YAMAHA WRF 450 2003
YAMAHA YZ 125 2026
YAMAHA YZ 125 2025
YAMAHA YZ 125 2024
YAMAHA YZ 125 2023
YAMAHA YZ 125 2022
YAMAHA YZ 125 2007
YAMAHA YZ 125 2006
YAMAHA YZ 125 2005
YAMAHA YZ 125 2004
YAMAHA YZ 125 2003
YAMAHA YZ 125 2002
YAMAHA YZ 125 2001
YAMAHA YZ 125 2000
YAMAHA YZ 125 1999
YAMAHA YZ 125 1998
YAMAHA YZ 250 2026
YAMAHA YZ 250 2025
YAMAHA YZ 250 2024
YAMAHA YZ 250 2023
YAMAHA YZ 250 2022
YAMAHA YZ 250 2007
YAMAHA YZ 250 2006
YAMAHA YZ 250 2005
YAMAHA YZ 250 2004
YAMAHA YZ 250 2003
YAMAHA YZ 250 2002
YAMAHA YZ 250 2001
YAMAHA YZ 250 2000
YAMAHA YZ 250 1999
YAMAHA YZ 250 1998
YAMAHA YZF 250 2026
YAMAHA YZF 250 2025
YAMAHA YZF 250 2024
YAMAHA YZF 250 2023
YAMAHA YZF 250 2022
YAMAHA YZF 250 2021
YAMAHA YZF 250 2006
YAMAHA YZF 250 2005
YAMAHA YZF 250 2004
YAMAHA YZF 250 2003
YAMAHA YZF 250 2002
YAMAHA YZF 250 2001
YAMAHA YZF 400 1999
YAMAHA YZF 400 1998
YAMAHA YZF 426 2002
YAMAHA YZF 426 2001
YAMAHA YZF 426 2000
YAMAHA YZF 450 2026
YAMAHA YZF 450 2025
YAMAHA YZF 450 2024
YAMAHA YZF 450 2023
YAMAHA YZF 450 2022
YAMAHA YZF 450 2021
YAMAHA YZF 450 2020
YAMAHA YZF 450 2007
YAMAHA YZF 450 2006
YAMAHA YZF 450 2005
YAMAHA YZF 450 2004
YAMAHA YZF 450 2003
