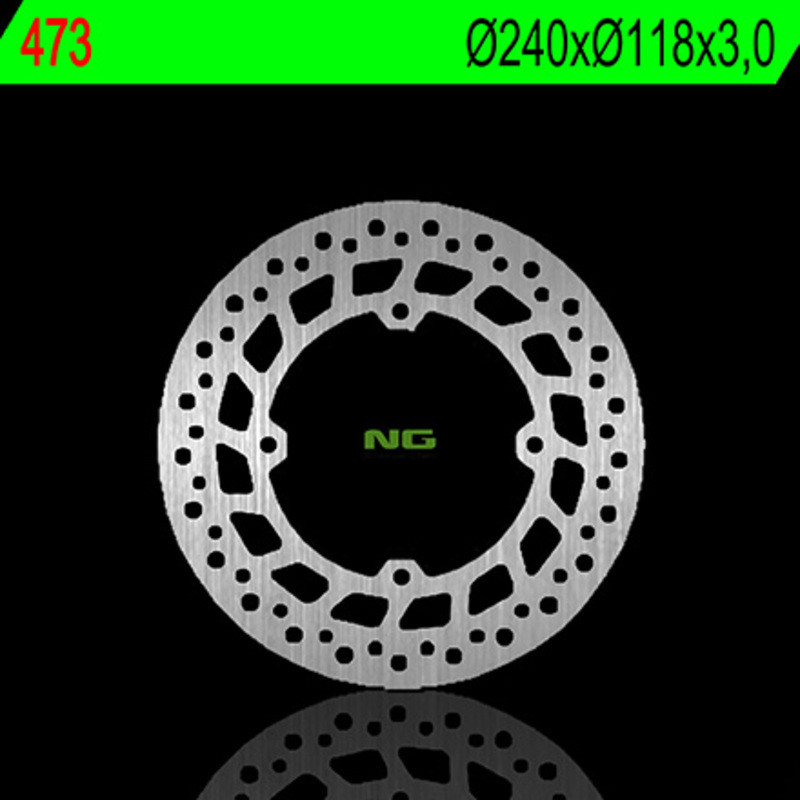

NG BRAKES Round Fixed Brake Disc for HONDA CR 250, CR 500, NX 250, XR 600, XR 650 1984-2007

NG offers this brake disc for HONDA CR 250, CR 500, NX 250, XR 600, XR 650 1984-2007. The disc is bolted to the wheel and turns with it. When you brake, the caliper squeezes the pads against the disc: the friction turns speed into heat and the wheel slows down.

Why replace your brake disc?

The benefits:

• Get back strong, steady braking, with no vibration in the lever or pedal.
• New pads last longer on a disc that is flat and the right thickness.
• Diameter and bolt holes made for your bike: it fits in place of the original disc.

When should you replace the brake disc on your HONDA XR 600?

Measure the thickness with a micrometer: below the minimum stamped on the disc, or if it is warped or cracked, it must be replaced.

Specifications and fitting tips

• Brake Disc Shape: Round
• Disc type: Fixed
• Vehicle-specific brake discs
• Available in standard, wave and floating designs
• Manufacturer part number: 473

Cross-Mania tip: Fit new pads with a new disc, degrease the braking surfaces and tighten the bolts with threadlocker to the specified torque. Bed the brakes in gradually.

Also needed with this part

• Brake pads : GALFER · RENTHAL
• Brake fluid : MOTUL 500 ml 109452 · MOTUL 500 ml 101666

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CR 250 1994
HONDA CR 250 1993
HONDA CR 250 1992
HONDA CR 500 1994
HONDA CR 500 1993
HONDA CR 500 1992
HONDA CR 500 1991
HONDA CR 500 1990
HONDA CR 500 1989
HONDA NX 250 1993
HONDA NX 250 1992
HONDA NX 250 1991
HONDA NX 250 1990
HONDA NX 250 1989
HONDA NX 250 1988
HONDA XR 500 1984
HONDA XR 600 2000
HONDA XR 600 1999
HONDA XR 600 1998
HONDA XR 600 1997
HONDA XR 600 1996
HONDA XR 600 1995
HONDA XR 600 1994
HONDA XR 600 1993
HONDA XR 650 2007
HONDA XR 650 2006
HONDA XR 650 2005
HONDA XR 650 2004
HONDA XR 650 2003
HONDA XR 650 2002
HONDA XR 650 2001
HONDA XR 650 2000
