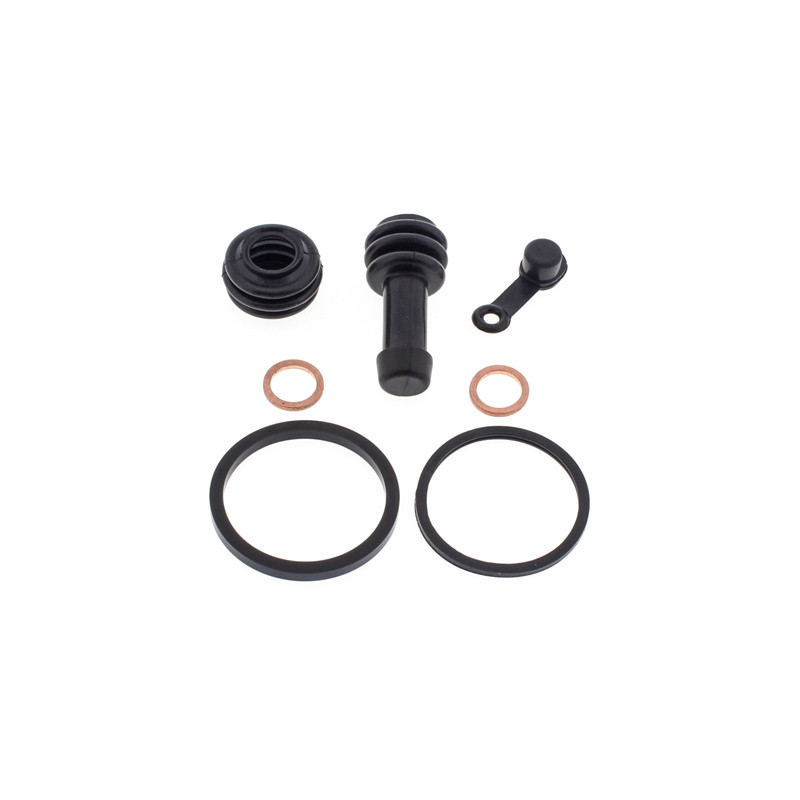

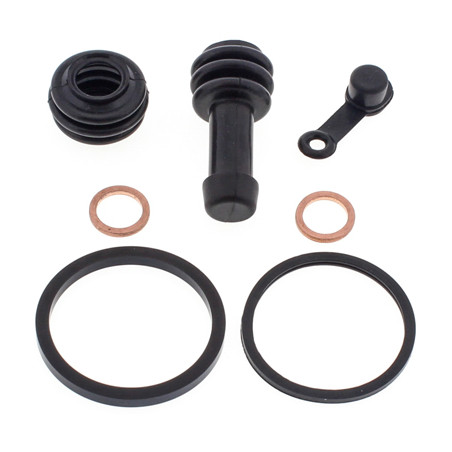

PROX Rear Brake Caliper Rebuild Kit for SUZUKI LTA 500 2003-2007

The PROX 37.63039 brake caliper rebuild kit is designed for SUZUKI LTA 500 from 2003 to 2007. This kit rebuilds the brake caliper: pistons and seals, depending on the part number. Hardened seals or pitted pistons make the pads stick and the brake overheat; replacing them gives you clean, consistent braking again.

Specifications

• Brand: PROX
• Manufacturer part number: 37.63039

When to replace it?

• Brake that stays on or runs hot: the pistons don't retract properly.
• Fluid leaking at the caliper.
• Pistons pitted, scored or corroded.

Rebuild the caliper as soon as a piston sticks or leaks, and as preventive maintenance on a bike that often rides through water and mud.

Fitting tips

1. Drain the system, remove the caliper and push the pistons out with compressed air at low pressure, keeping your fingers out of the way.
2. Clean the seal grooves without scratching them, then fit the new seals lubricated with fresh brake fluid.
3. Push the pistons back in by hand, nice and straight, then refit the pads.
4. Fill and bleed the system with fresh fluid, then check that the lever or pedal is firm.

Why PROX?

Founded in 1975 and based near Amsterdam, ProX specialises in engine and clutch wear parts for off-road bikes. The brand has most of its range made in Japan, by OEM suppliers, for quality on a par with the original parts.

Spare parts and items to plan

• Brake fluid : MOTUL 500 ml · LIQUI MOLY 250 ml
• Brake pads : see the selection

Frequently asked questions

Which fluid should I use?
The one shown on the master cylinder cap, usually DOT 4: never mix it with mineral fluid.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI LTA 500 2007
SUZUKI LTA 500 2006
SUZUKI LTA 500 2005
SUZUKI LTA 500 2004
SUZUKI LTA 500 2003
