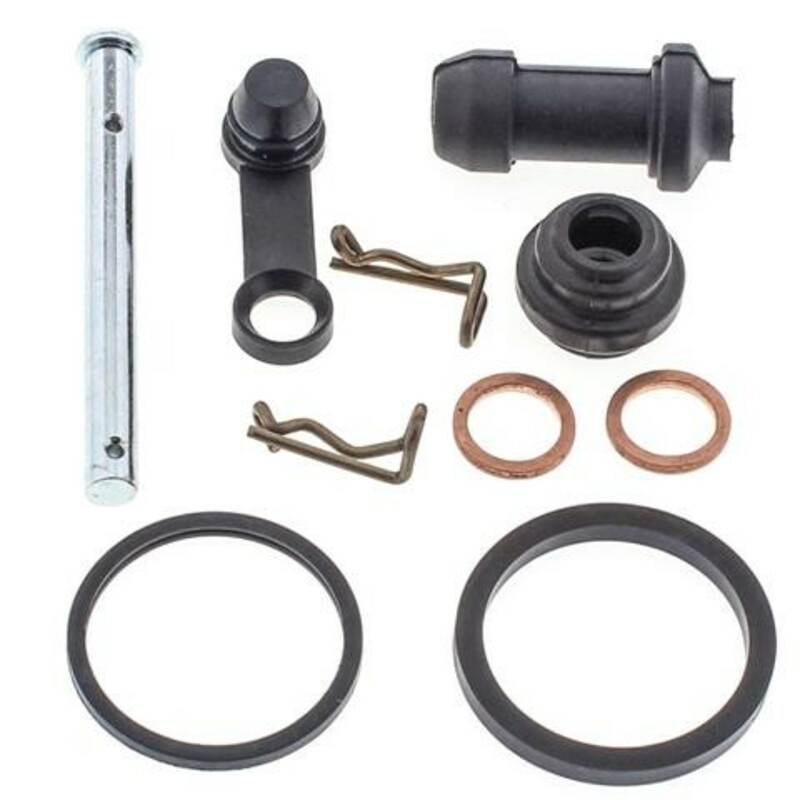

ALL BALLS Brake Caliper Rebuild Kit for KTM EXC 125, EXC 200, EXC 250, EXC 300, EXC 400 2001-2006

ALL BALLS offers this brake caliper rebuild kit for KTM EXC 125, EXC 200, EXC 250, EXC 300, EXC 400 2001-2006. The caliper is the clamp that squeezes the pads onto the disc. Inside, one or more pistons are pushed out by the brake fluid when you pull the lever or press the pedal.

Why rebuild the caliper?

The benefits:

• Pistons that slide freely: the pads stop rubbing and wear evenly.
• Precise, consistent braking, even after muddy rides and repeated washing.
• You keep your original caliper, already matched to the bike.

Why choose ALL BALLS?

Complete All Balls kits: low-friction bearings and steel-spring nitrile seals, everything you need in one box.

When should you replace this part?

A brake that drags or runs hot, pads worn at an angle, a scored, pitted or sticking piston, fluid around the piston: the caliper needs rebuilding.

Specifications and fitting tips

• Washer
• Cup Seals, Master Cylinder
• Manufacturer part number: 18-3050

Cross-Mania tip: Clean the seal grooves without scratching them (plastic or wooden tool), coat seals and pistons with fresh brake fluid, grease the slide pins with a brake-compatible grease, then bleed the system.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KTM EXC 125 2005
KTM EXC 125 2004
KTM EXC 125 2003
KTM EXC 125 2002
KTM EXC 125 2001
KTM EXC 200 2003
KTM EXC 200 2002
KTM EXC 200 2001
KTM EXC 250 2006
KTM EXC 250 2005
KTM EXC 250 2004
KTM EXC 250 2003
KTM EXC 250 2002
KTM EXC 250 2001
KTM EXC 300 2003
KTM EXC 300 2002
KTM EXC 300 2001
KTM EXC 380 2001
KTM EXC 400 2002
KTM EXC 400 2001
KTM EXC 520 2002
KTM EXC 520 2001
KTM EXC 525 2003
KTM SX 125 2002
KTM SX 125 2001
KTM SX 250 2002
KTM SX 250 2001
KTM SX 380 2002
KTM SX 380 2001
KTM SX 400 2002
KTM SX 400 2001
KTM SX 520 2002
KTM SX 520 2001
KTM SXS 540 2002
KTM SXS 540 2001
