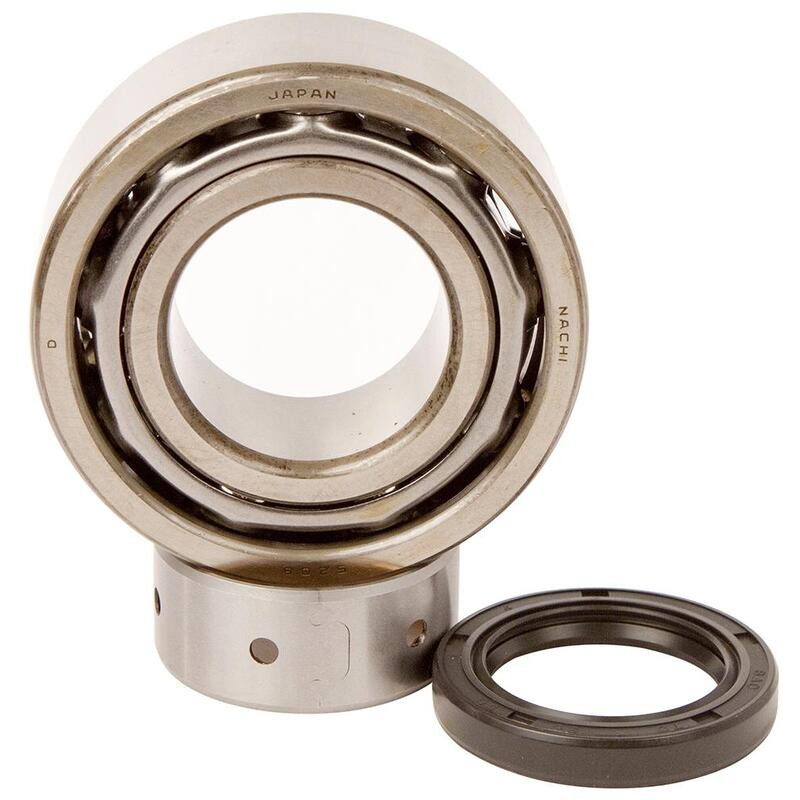

HOT RODS Crankshaft Bearing & Oil Seal Kit for KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD and SUZUKI LT-V 700 F 4X4 TWIN PEAKS

HOT RODS offers this engine bearing and seal kit for KAWASAKI KFX 700, KVF 750 BRUTE FORCE I 4WD, KVF 750 BRUTE FORCE I EPS 4WD, KVF 750 BRUTE FORCE I EPS CAMO 4WD, TERYX 750 and SUZUKI LT-V 700 F 4X4 TWIN PEAKS 2004-2025. The crankshaft and gearbox shafts spin on bearings in the cases; oil seals keep the oil in around the shafts.

What is this bearing made of?

Races and balls (or rollers) in hardened chrome steel, 100Cr6 type: a very hard steel that withstands the fatigue of millions of engine revolutions.

• Open bearing: unsealed, it is lubricated and cooled by the engine oil; clean oil is its best protection.
• C3 / C4 internal clearance: slightly more clearance than normal for a hot engine’s expansion; always refit the original clearance.
• Limit: it dislikes dust and old oil; running short of oil destroys it within minutes.

Why choose HOT RODS?

Hot Rods, the bottom-end specialist since 1993: crankshafts, rods, bearings and seals for a complete rebuild.

When should you replace the bearings?

Unusual vibration, a deep knock that follows engine speed or play in the con-rod: the bottom end needs a rebuild.

The manufacturer publishes no hour interval for this model: have the con-rod play checked at every piston change. Cross-Mania guideline: rebuild the bottom end every 2 to 3 top-end rebuilds.

Specifications and fitting tips

• Crankshaft bearing + seal kit
• Includes: bearings – crankshaft oil seal (contents correspond with usage)
• Manufacturer part number: K075

Cross-Mania tip: Heat the cases to remove and fit the bearings without forcing them, and replace the oil seals at the same time.

Also needed with this part

• Complete engine gasket kit : see the selection
• Piston : see the selection
• 2-stroke oil : LIQUI MOLY 1 L · LIQUI MOLY 4 L

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KFX 700 2009
KAWASAKI KFX 700 2008
KAWASAKI KFX 700 2007
KAWASAKI KFX 700 2006
KAWASAKI KFX 700 2005
KAWASAKI KFX 700 2004
KAWASAKI KVF 700 PRAIRIE 4WD 2006
KAWASAKI KVF 700 PRAIRIE 4WD 2005
KAWASAKI KVF 700 PRAIRIE 4WD 2004
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2012
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2011
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2010
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2009
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2008
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2007
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2006
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2005
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2025
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2024
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2023
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2022
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2021
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2020
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2019
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2018
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2017
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2016
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2015
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2014
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2013
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2012
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2021
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2020
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2019
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2018
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2017
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2016
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2015
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2014
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2013
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2012
KAWASAKI TERYX 750 2012
KAWASAKI TERYX 750 2011
KAWASAKI TERYX 750 2010
KAWASAKI TERYX 750 2009
KAWASAKI TERYX 750 2008
SUZUKI LT-V 700 F 4X4 TWIN PEAKS 2005
SUZUKI LT-V 700 F 4X4 TWIN PEAKS 2004
