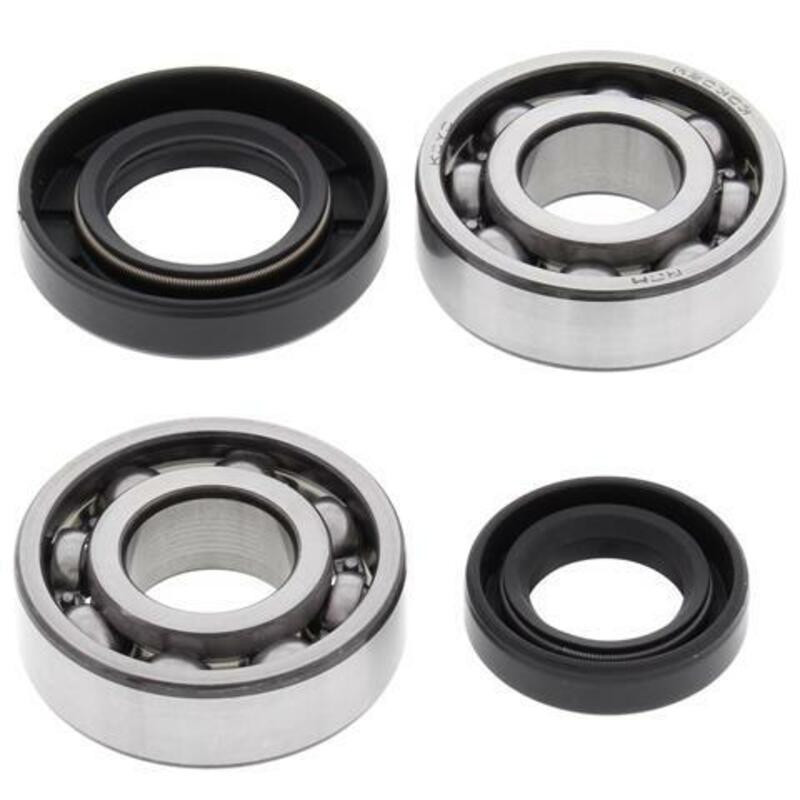

ALL BALLS Crankshaft Bearing & Oil Seal Kit for SUZUKI JR 50, LT 50 QUADRUNNER 2WD, LTA 50 and KAWASAKI KFX 50 1978-2006

ALL BALLS offers this engine bearing and seal kit for SUZUKI JR 50, LT 50 QUADRUNNER 2WD, LTA 50 and KAWASAKI KFX 50 1978-2006. The crankshaft and gearbox shafts spin on bearings in the cases; oil seals keep the oil in around the shafts.

What is this bearing made of?

Races and balls (or rollers) in hardened chrome steel, 100Cr6 type: a very hard steel that withstands the fatigue of millions of engine revolutions.

• Open bearing: unsealed, it is lubricated and cooled by the engine oil; clean oil is its best protection.
• C3 / C4 internal clearance: slightly more clearance than normal for a hot engine’s expansion; always refit the original clearance.
• Limit: it dislikes dust and old oil; running short of oil destroys it within minutes.

Why choose ALL BALLS?

Complete All Balls kits: low-friction bearings and steel-spring nitrile seals, everything you need in one box.

When should you replace the bearings?

Unusual vibration, a deep knock that follows engine speed or play in the con-rod: the bottom end needs a rebuild.

The manufacturer publishes no hour interval for this model: have the con-rod play checked at every piston change. Cross-Mania guideline: rebuild the bottom end every 2 to 3 top-end rebuilds.

Specifications and fitting tips

• Crankshaft bearing + seal kit
• Includes all of the bearings and seals needed for the procedure
• Manufacturer part number: 24-1067

Cross-Mania tip: Heat the cases to remove and fit the bearings without forcing them, and replace the oil seals at the same time.

Also needed with this part

• Complete engine gasket kit : MOOSE
• Piston : VERTEX 22491 · VERTEX 22491
• 2-stroke oil : LIQUI MOLY 1 L 3065 · LIQUI MOLY 1 L 3063

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KFX 50 2006
KAWASAKI KFX 50 2005
KAWASAKI KFX 50 2004
KAWASAKI KFX 50 2003
SUZUKI JR 50 1999
SUZUKI JR 50 1998
SUZUKI JR 50 1997
SUZUKI JR 50 1996
SUZUKI JR 50 1995
SUZUKI JR 50 1994
SUZUKI JR 50 1993
SUZUKI JR 50 1992
SUZUKI JR 50 1991
SUZUKI JR 50 1990
SUZUKI JR 50 1989
SUZUKI JR 50 1988
SUZUKI JR 50 1987
SUZUKI JR 50 1986
SUZUKI JR 50 1985
SUZUKI JR 50 1984
SUZUKI JR 50 1983
SUZUKI JR 50 1982
SUZUKI JR 50 1981
SUZUKI JR 50 1980
SUZUKI JR 50 1979
SUZUKI JR 50 1978
SUZUKI LT 50 QUADRUNNER 2WD 2005
SUZUKI LT 50 QUADRUNNER 2WD 2004
SUZUKI LT 50 QUADRUNNER 2WD 2003
SUZUKI LT 50 QUADRUNNER 2WD 2002
SUZUKI LT 50 QUADRUNNER 2WD 2001
SUZUKI LT 50 QUADRUNNER 2WD 2000
SUZUKI LT 50 QUADRUNNER 2WD 1999
SUZUKI LT 50 QUADRUNNER 2WD 1998
SUZUKI LT 50 QUADRUNNER 2WD 1997
SUZUKI LT 50 QUADRUNNER 2WD 1996
SUZUKI LT 50 QUADRUNNER 2WD 1995
SUZUKI LT 50 QUADRUNNER 2WD 1994
SUZUKI LT 50 QUADRUNNER 2WD 1993
SUZUKI LT 50 QUADRUNNER 2WD 1992
SUZUKI LT 50 QUADRUNNER 2WD 1991
SUZUKI LT 50 QUADRUNNER 2WD 1990
SUZUKI LT 50 QUADRUNNER 2WD 1989
SUZUKI LT 50 QUADRUNNER 2WD 1988
SUZUKI LT 50 QUADRUNNER 2WD 1987
SUZUKI LT 50 QUADRUNNER 2WD 1986
SUZUKI LT 50 QUADRUNNER 2WD 1985
SUZUKI LT 50 QUADRUNNER 2WD 1984
SUZUKI LTA 50 2005
SUZUKI LTA 50 2004
SUZUKI LTA 50 2003
SUZUKI LTA 50 2002
