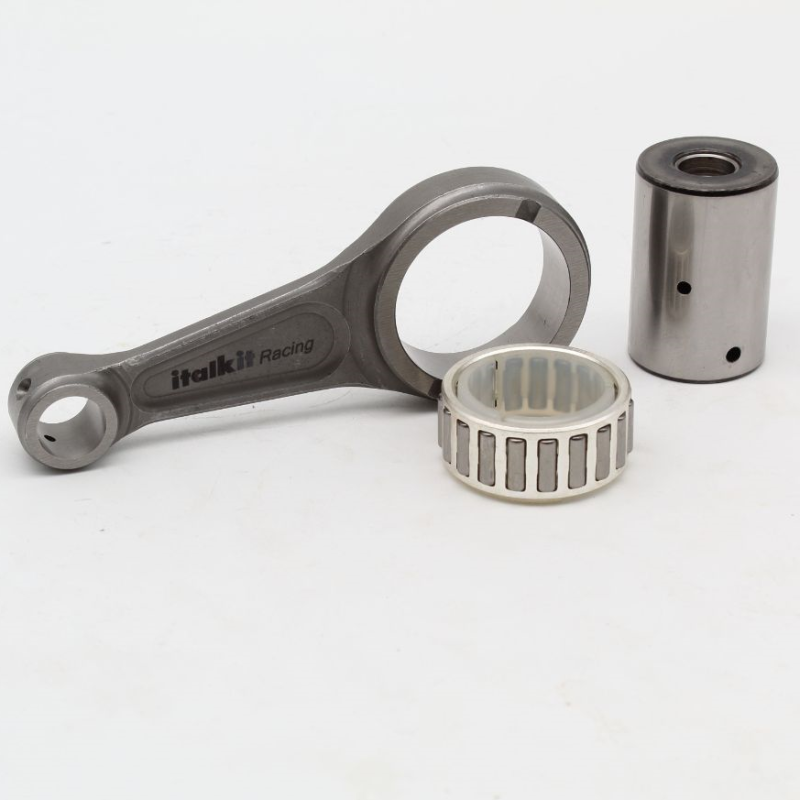

ITALKIT offers you this complete connecting rod kit for your PIAGGIO 125. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance: 88.5mm

Small pin bore: 14mm

Connecting rod head bore: 38mm

Small pin bore width:

Connecting-rod bore width: 15.8mm

Crankpin Ø: 30mm

Crank pin length: 45mm

Small pin bearing: 14mm

Connecting-rod bearing: 30 x 38 x 16mm

Washers (mm) :

Fits on :

PIAGGIO 125 4T
