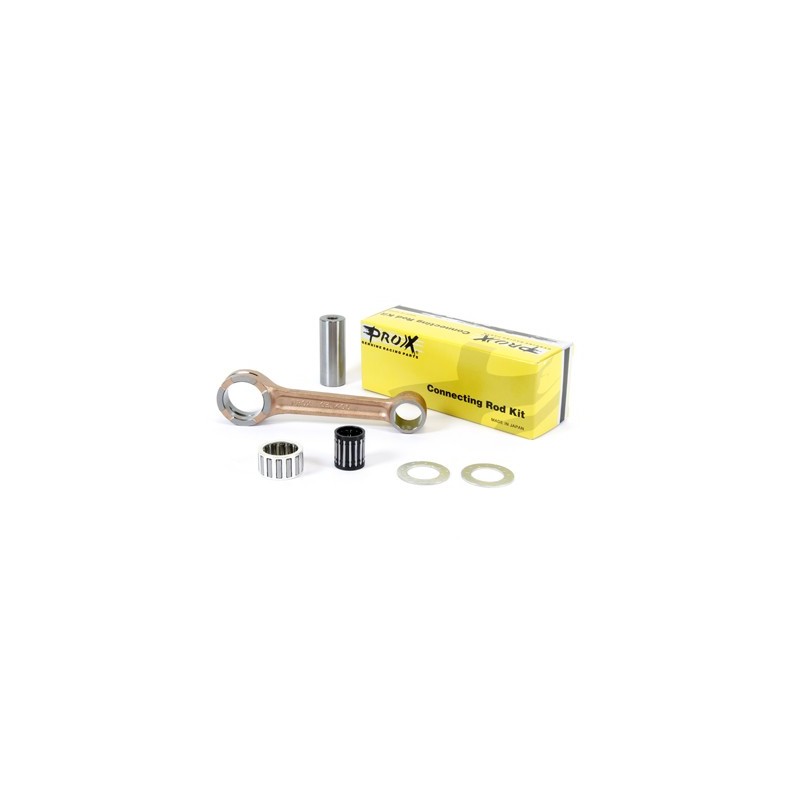

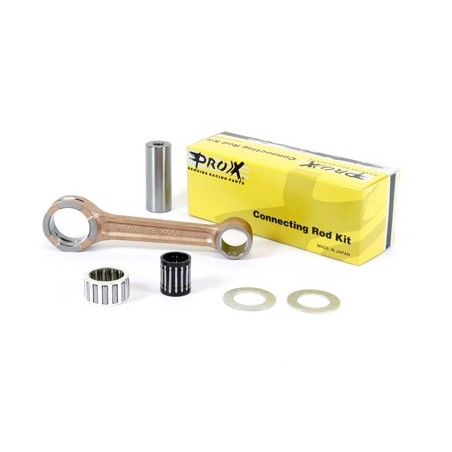

PROX offers you this complete connecting rod kit for your HONDA CR 500. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also contact us by e-mail for a quotation. All connecting rod dimensions are given below.

Technical data :

Axis center distance (mm) : 144

Inside diameter of small end of connecting rod (mm): 25

Inside diameter of large connecting rod end (mm): 34

Width of small connecting rod end (mm): 24

Width of large connecting rod end (mm): 19.8

Crank pin diameter (mm): 26

Crank pin length (mm): 67.5

Piston pin cage dimensions (mm): 20 x 25 x 28

Crank pin cage dimensions (mm): 26 x 34 x 20

Connecting rod washer thickness (mm) : 1.5

Fits on :

HONDA CR 500 R (PE02) 2001

HONDA CR 500 R (PE02) 2000

HONDA CR 500 R (PE02) 1999

HONDA CR 500 R (PE02) 1998

HONDA CR 500 R (PE02) 1997

HONDA CR 500 R (PE02) 1996

HONDA CR 500 R (PE02) 1995

HONDA CR 500 R (PE02) 1994

HONDA CR 500 R (PE02) 1993

HONDA CR 500 R (PE02) 1992

HONDA CR 500 R (PE02) 1991

HONDA CR 500 R (PE02) 1990

HONDA CR 500 R (PE02) 1989

HONDA CR 500 R (PE02) 1988

HONDA CR 500 R (PE02) 1987
