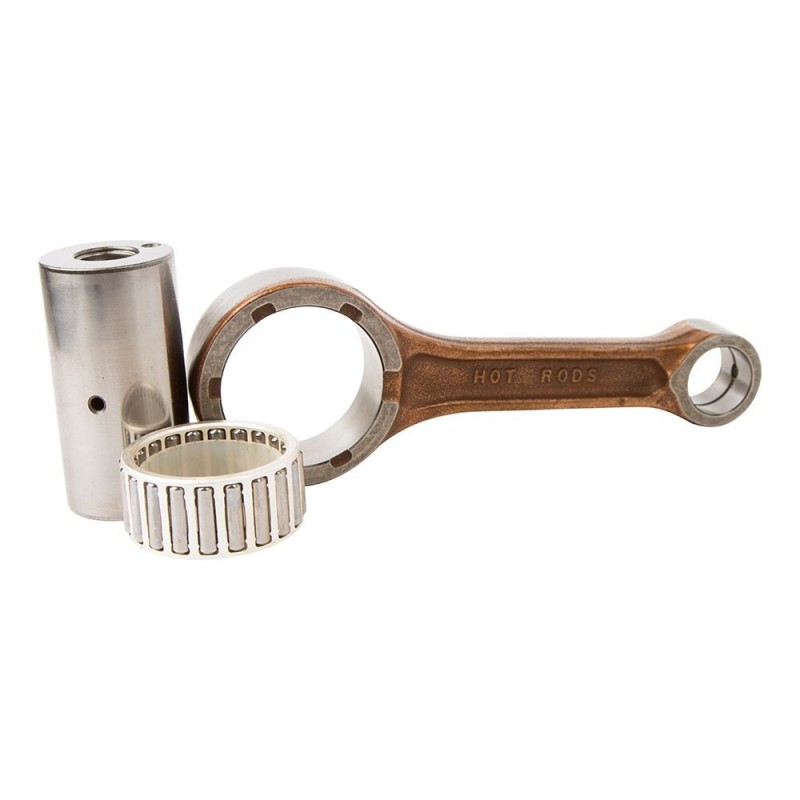

HOT RODS offers you this complete connecting rod kit for your HONDA TRX 400 EX quad bike. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm): 122.7

Small pin bore (mm): 20

Connecting rod head bore (mm): 43

Small pin bore width (mm): 19

Connecting-rod bore width (mm): 21

Crank pin Ø (mm): 34

Crankpin length (mm): 65.9

Small pin bearing (mm): Ring

Connecting rod bearing (mm): 34 x 43 x 20

Washers (mm): No

Fits on :

HONDA TRX 400 EX SPORTRAX 2WD (TE23) 2008

HONDA TRX 400 EX SPORTRAX 2WD (TE23) 2007

HONDA TRX 400 EX SPORTRAX 2WD (TE23) 2006

HONDA TRX 400 EX SPORTRAX 2WD (TE23) 2005

HONDA TRX 400 EX SPORTRAX 2WD (TE23) 2004

HONDA TRX 400 EX SPORTRAX 2WD (TE23) 2003

HONDA TRX 400 EX SPORTRAX 2WD (TE23) 2002

HONDA TRX 400 EX SPORTRAX 2WD (TE23) 2001

HONDA TRX 400 EX SPORTRAX 2WD (TE23) 2000

HONDA TRX 400 EX SPORTRAX 2WD (TE23) 1999
