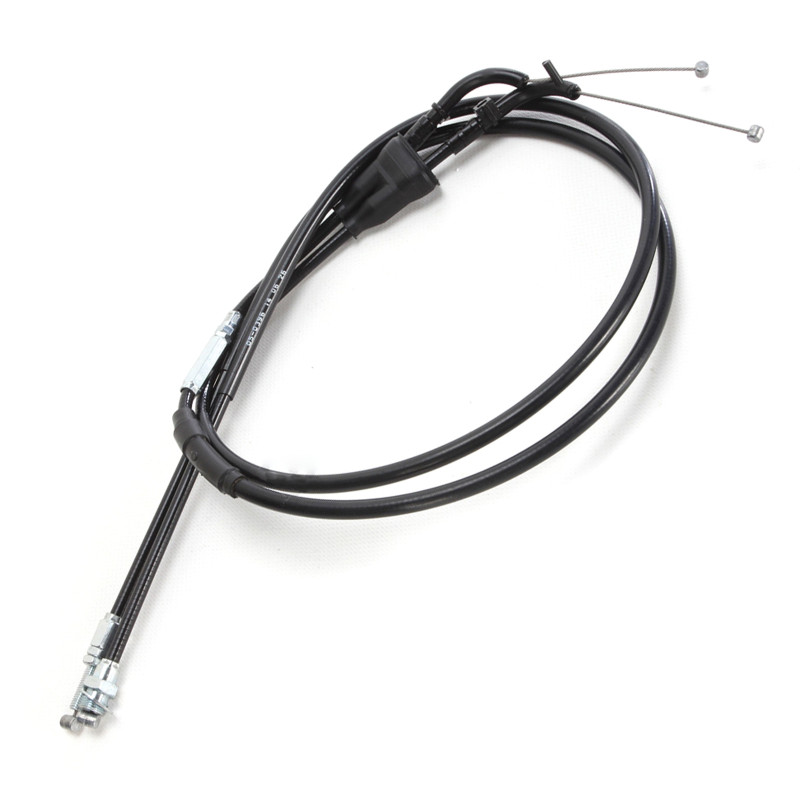

MOTION PRO Throttle Cable (push-pull set) for YAMAHA WRF 250, WRF 450, YZF 250 2006-2013

The MOTION PRO (tirage + retour) 05-0396 throttle cable is designed for YAMAHA WRF 250, WRF 450, YZF 250 from 2006 to 2013. The throttle cable links the twistgrip to the butterfly in the carburettor or throttle body. A cable that rubs or frays makes the throttle heavy and can make it stick open: it's a safety part.

Specifications

• Brand: MOTION PRO
• Manufacturer part number: 05-0396
• Black vinyl-covered housing, like the original
• Set of two cables: pull and return
• Engine: 4-stroke

When to replace it?

• Heavy twistgrip or slow throttle return.
• Frayed strands, cut or crushed outer sheath.
• Free play that can't be adjusted correctly.

Replace the cable at the first broken strand, or if the twistgrip no longer snaps back cleanly to the closed position.

Fitting tips

1. Note the routing of the old cable before removing it.
2. Route the new cable exactly the same way, with no kinks or rubbing points.
3. Lubricate the ends with a suitable grease.
4. Set the free play as per the manual, then turn the bars to full lock on both sides to check that the revs don't rise.

Why MOTION PRO?

For its T3 Slidelight cables, Motion Pro measured in-house that a conventional cable housing can wear through to metal-on-metal contact in fewer than 1,200 cycles, whereas its own inner liner lasts 30,000 cycles with minimal wear. With anodised billet aluminium end fittings and a built-in lubricator, the control stays light and smooth over time.

Spare parts and items to plan

• Grips : RFX · WORKS CONNECTION
• Grease : MOTUL 400 g

Frequently asked questions

Why two cables?
Many bikes have a pull cable and a return cable: the second one closes the throttle even if the throttle spring weakens. Replace them together.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
YAMAHA WRF 250 2013
YAMAHA WRF 250 2012
YAMAHA WRF 250 2011
YAMAHA WRF 250 2009
YAMAHA WRF 250 2008
YAMAHA WRF 250 2007
YAMAHA WRF 450 2011
YAMAHA WRF 450 2009
YAMAHA WRF 450 2008
YAMAHA WRF 450 2007
YAMAHA YZF 250 2013
YAMAHA YZF 250 2012
YAMAHA YZF 250 2011
YAMAHA YZF 250 2010
YAMAHA YZF 250 2009
YAMAHA YZF 250 2008
YAMAHA YZF 250 2007
YAMAHA YZF 250 2006
