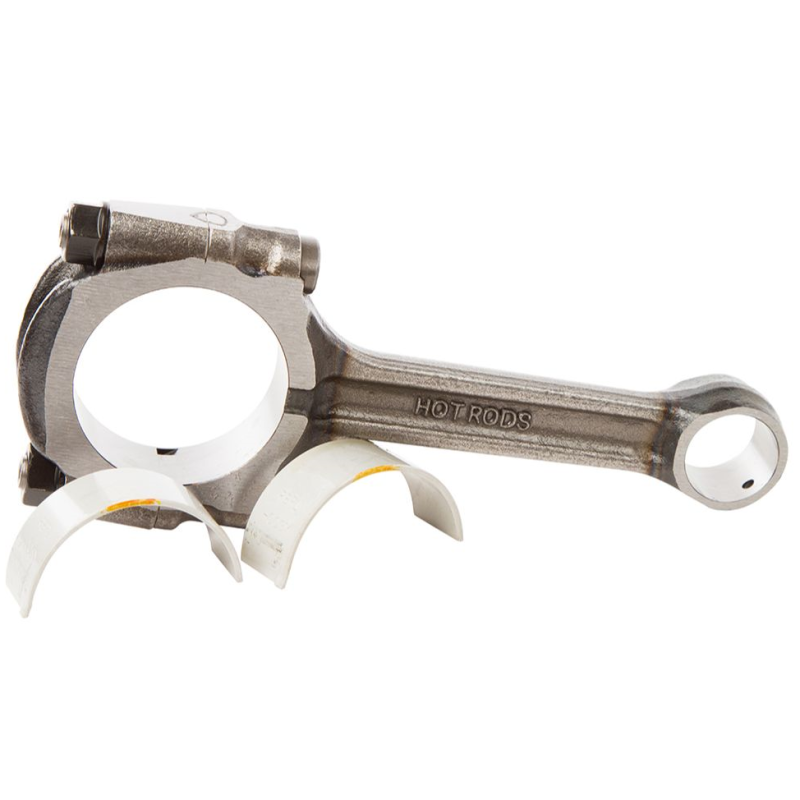

HOT RODS offers you this complete connecting rod kit for your KAWASAKI 750 Brute Force/800 Teryx quad. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its needle cage, anti-friction shims and crankpin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Length from axis to axis (mm): 117.50

Small end bore (mm): 20

Connecting rod head bore (mm): 43

Small end bore width (mm): 18

Connecting-rod bore width (mm): 20

Crank pin Ø (mm): 40

Crank pin length (mm): -

Small end bearing (mm): 20

Connecting rod head bearing (mm): ring

Washers (mm): no

Fits on :

KAWASAKI KFX 700 2WD (KSV700A) 700 2011

KAWASAKI KFX 700 2WD (KSV700A) 2010

KAWASAKI KFX 700 2WD (KSV700A) 2009

KAWASAKI KFX 700 2WD (KSV700A) 2008

KAWASAKI KFX 700 2WD (KSV700A) 2007

KAWASAKI KFX 700 2WD (KSV700A) 2006

KAWASAKI KFX 700 2WD (KSV700A) 2005

KAWASAKI KFX 700 2WD (KSV700A) 2004

KAWASAKI KFX 700 2WD (KSV700B) 2008

KAWASAKI KFX 700 2WD (KSV700B) 2007

KAWASAKI KFX 700 2WD (KSV700B) 2006

KAWASAKI KVF 700 PRAIRIE 4WD (KVF700A) 2004

KAWASAKI KVF 750 BRUTE FORCE I 4WD (KVF750A) 750 2007

KAWASAKI KVF 750 BRUTE FORCE I 4WD (KVF750A) 2006

KAWASAKI KVF 750 BRUTE FORCE I 4WD (KVF750A) 2005

KAWASAKI KVF 750 BRUTE FORCE I 4WD (KVF750D) 2011

KAWASAKI KVF 750 BRUTE FORCE I 4WD (KVF750D) 2010

KAWASAKI KVF 750 BRUTE FORCE I 4WD (KVF750D) 2009

KAWASAKI KVF 750 BRUTE FORCE I 4WD (KVF750D) 2008

KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD (KVF750G) 2021

KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD (KVF750G) 2020

KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD (KVF750G) 2019

KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD (KVF750G) 2018

KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD (KVF750G) 2017

KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD (KVF750G) 2016

KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD (KVF750G) 2015

KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD (KVF750G) 2014

KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD (KVF750G) 2013

KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD (KVF750G) 2012

KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD (KVF750H) 2021

KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD (KVF750H) 2020

KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD (KVF750H) 2019

KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD (KVF750H) 2018

KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD (KVF750H) 2017

KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD (KVF750H) 2016

KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD (KVF750H) 2015

KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD (KVF750H) 2014

KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD (KVF750H) 2013

KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD (KVF750H) 2012
