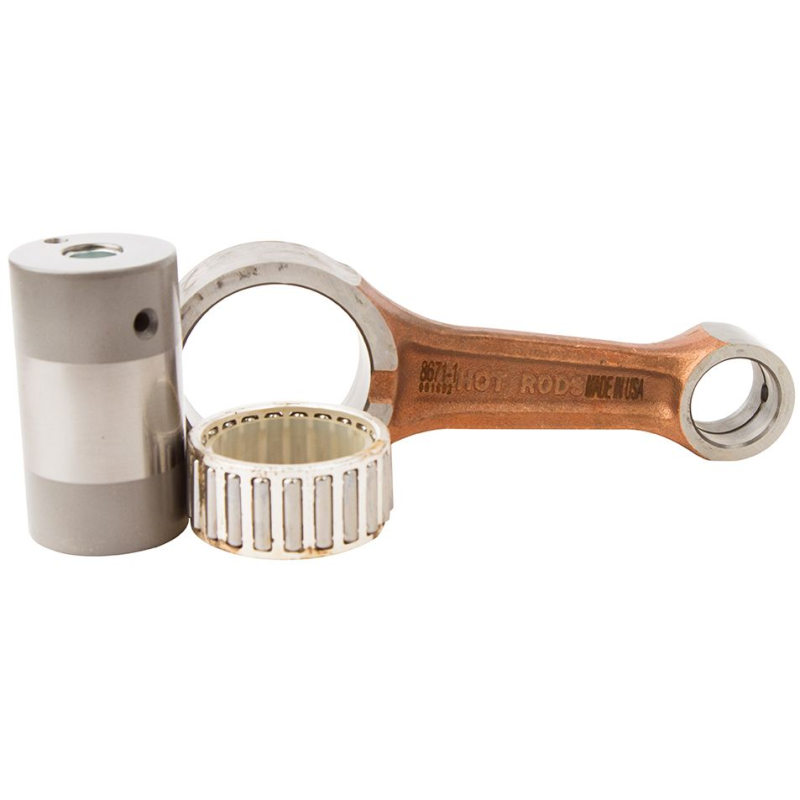

HOT RODS offers you this complete connecting rod kit for your KAWASAKI KFX 450 R. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its needle cage, anti-friction shims and crankpin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm) : 107

Small pin bore (mm): 21.01

Connecting rod head bore (mm): 42.02

Small pin bore width (mm): 18

Connecting-rod bore width (mm): 20

Crankpin Ø (mm): 34

Crankpin length (mm): 60

Small pin bearing (mm): Ring

Connecting rod bearing (mm): 34 x 42 x 19.65

Washers (mm): No

Fits on :

KAWASAKI KFX 450 R 2WD (KSF450B) 2014

KAWASAKI KFX 450 R 2WD (KSF450B) 2013

KAWASAKI KFX 450 R 2WD (KSF450B) 2012

KAWASAKI KFX 450 R 2WD (KSF450B) 2011

KAWASAKI KFX 450 R 2WD (KSF450B) 2010

KAWASAKI KFX 450 R 2WD (KSF450B) 2009

KAWASAKI KFX 450 R 2WD (KSF450B) 2008

KAWASAKI KFX 450 R SPECIAL EDITION 2WD (KSF450B) 2009

KAWASAKI KFX 450 R SPECIAL EDITION 2WD (KSF450B) 2008
